Allied 595 - Page 31

595, S595

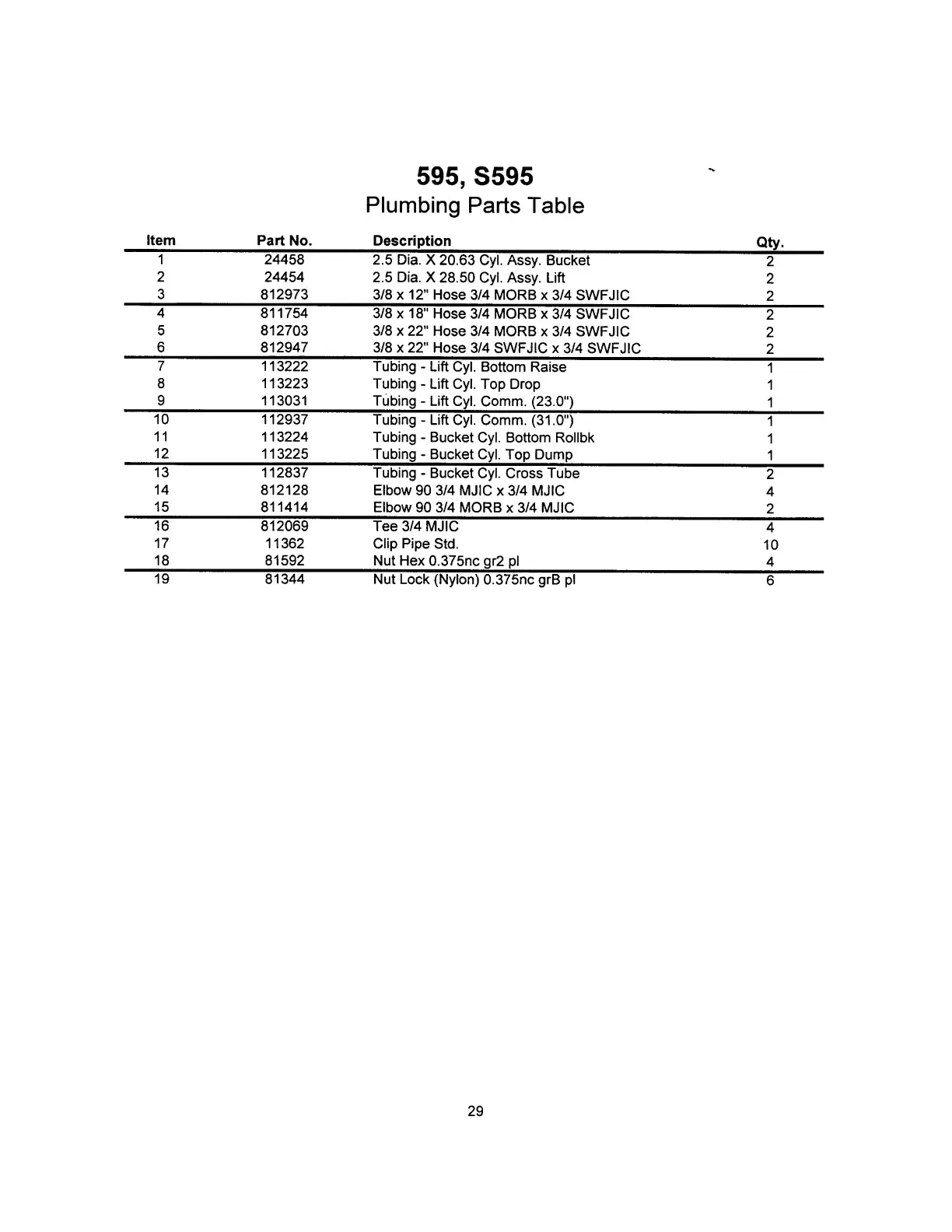

Plumbing Parts Table
Item
Part No.
Description
1
24458
2.5 Dia. X 20.63 Cyl. Assy. Bucket
2
2
24454
2.5 Dia. X 28.50 Cyl. Assy. Lift
2
3
812973
3/8 x 12" Hose 3/4 MORB x 3/4 SWFJ 1C
2
4
811754
3/8 x 18" Hose 3/4 MORB x 3/4 SWFJIC
2
5
812703
3/8 x 22" Hose 3/4 MORB x 3/4 SWFJIC
2
6 812947
3/8 x 22" Hose 3/4 SWFJIC x 3/4 SWFJIC
2
7
113222
Tubing - Lift Cyl. Bottom Raise
1
8
113223
Tubing - Lift Cyl. Top Drop
1
9
113031
Tubing - Lift Cyl. Comm. (23.0")
1
10 112937
Tubing - Lift Cyl. Comm. (31.0")
1
11
113224
Tubing - Bucket Cyl. Bottom Rollbk
1
12
113225
Tubing - Bucket Cyl. Top Dump
1
13
112837
Tubing - Bucket Cyl. Cross Tube
2
14
812128
Elbow 90 3/4 MJIC x 3/4 MJIC
4
15 811414
Elbow 90 3/4 MORB x 3/4 MJIC
2
16
812069
Tee 3/4 MJIC
4
17
11362
Clip Pipe Std.
10
18 81592
Nut Hex 0.375nc gr2 pi
4
19
81344
Nut Lock (Nylon) 0.375nc grB pi
6
