Allied 595 - Page 35

Item
Part No.

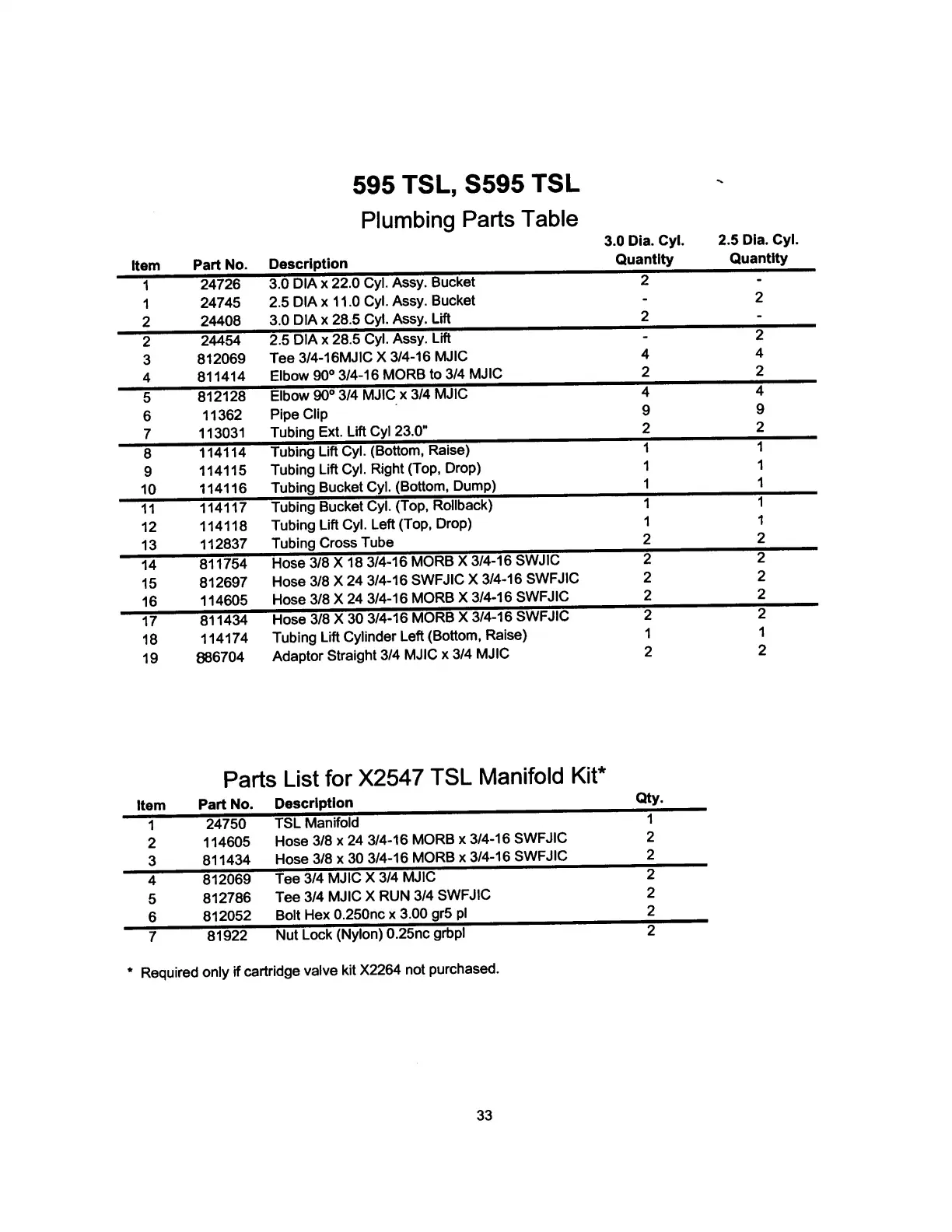

595 TSL, S595 TSL
Plumbing Parts Table
Description
3.0 Dia. Cyl.
Quantity
2.5 Dia. Cyl.
Quantity
1
24726
3.0 DIA x 22.0 Cyl. Assy. Bucket
2
-
1
24745
2.5 DIA x 11.0 Cyl. Assy. Bucket
-
2
2
24408
3.0 DIA x 28.5 Cyl. Assy. Lift
2
-
2
24454
2.5 DIA x 28.5 Cyl. Assy. Lift
-
2
3
812069
Tee 3/4-16MJ 1C X 3/4-16 MJIC
4
4
4
811414
Elbow 90° 3/4-16 MORB to 3/4 MJIC
2
2
5
812128
Elbow 90° 3/4 MJIC x 3/4 MJIC
4
4
6
11362
Pipe Clip
9
9
7
113031
Tubing Ext. Lift Cyl 23.0"
2
2
8
114114
Tubing Lift Cyl. (Bottom, Raise)
1
1
9
114115
Tubing Lift Cyl. Right (Top, Drop)
1
1
10
114116
Tubing Bucket Cyl. (Bottom, Dump)
1
1
11
114117
Tubing Bucket Cyl. (Top, Rollback)
1
1
12
114118
Tubing Lift Cyl. Left (Top, Drop)
1
1
13
112837
Tubing Cross Tube
2
2
14
811754
Hose 3/8 X 18 3/4-16 MORB X 3/4-16 SWJIC
2
2
15
812697
Hose 3/8 X 24 3/4-16 SWFJIC X 3/4-16 SWFJIC
2
2
16
114605
Hose 3/8 X 24 3/4-16 MORB X 3/4-16 SWFJIC
2
2
17
811434
Hose 3/8 X 30 3/4-16 MORB X 3/4-16 SWFJIC
2
2
18
114174
Tubing Lift Cylinder Left (Bottom, Raise)
1
1
19
886704
Adaptor Straight 3/4 MJIC x 3/4 MJIC
2
2
Parts List for X2547 TSL Manifold Kit*
Item Part No. Description
1 24750 TSL Manifold 1
2 114605 Hose 3/8 x 24 3/4-16 MORB x 3/4-16 SWFJIC 2
3 _ 811434 Hose 3/8 x 30 3/4-16 MORB x 3/4-16 SWFJIC 2
~4 812069 Tee 3/4 MJIC X 3/4 MJIC ’ 2
5 812786 Tee 3/4 MJIC X RUN 3/4 SWFJIC 2
6 812052 Bolt Hex 0.250nc x 3.00 gr5 pi 2
7 81922 Nut Lock (Nylon) 0.25nc grbpl 2
* Required only if cartridge valve kit X2264 not purchased.
33
