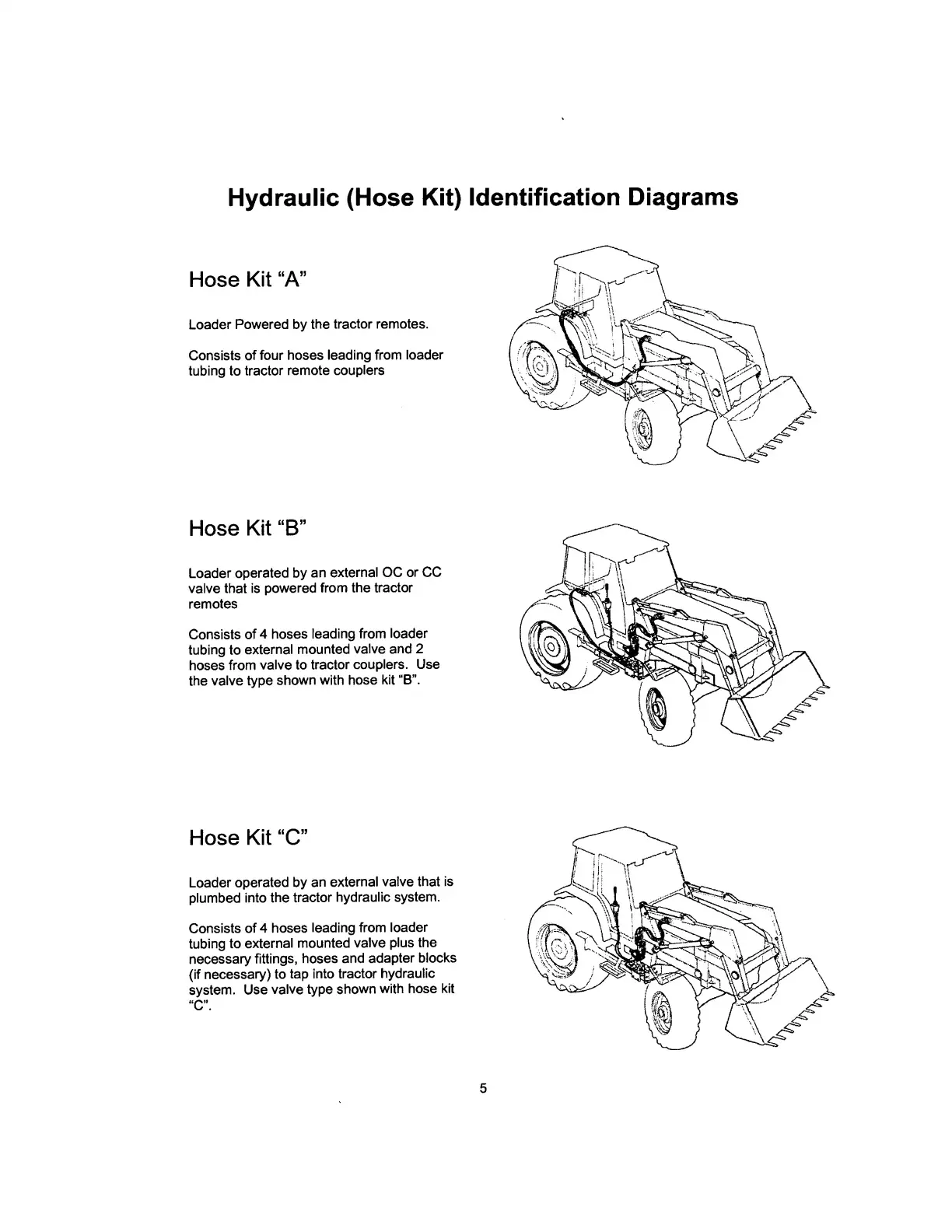

Hydraulic (Hose Kit) Identification Diagrams
Hose Kit “A”
Loader Powered by the tractor remotes.
Consists of four hoses leading from loader
tubing to tractor remote couplers
Hose Kit “B”
Loader operated by an external OC or CC
valve that is powered from the tractor
remotes
Consists of 4 hoses leading from loader
tubing to external mounted valve and 2
hoses from valve to tractor couplers. Use
the valve type shown with hose kit “B”.
Hose Kit “C”
Loader operated by an external valve that is
plumbed into the tractor hydraulic system.
Consists of 4 hoses leading from loader
tubing to external mounted valve plus the
necessary fittings, hoses and adapter blocks
(if necessary) to tap into tractor hydraulic
system. Use valve type shown with hose kit
“C”.
