Allmand MAXI-LITE - Operating Tower Lights and Outlets

Not for
Reproduction
20
20

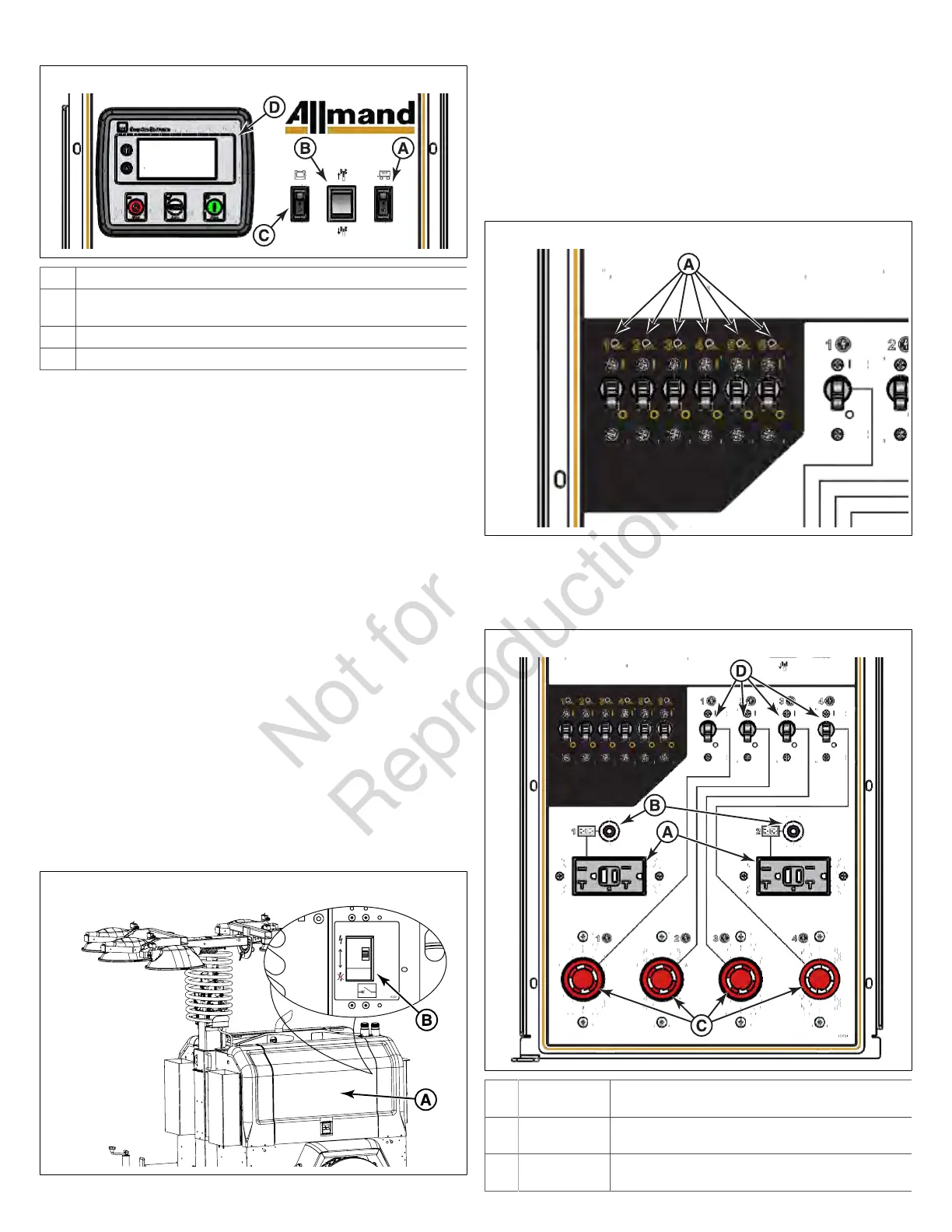

A Interior Light - Turns on lights inside engine compartment
B Tower Lift Switch - seeOperation-Raising And Lowering The
Light Tower
C Deep Sea Mode Switch
D Deep Sea Unit
To shut down the engine
Key-start models
1. Turn the key switch to OFF.
LSC / Deep Sea models
1. See the LSC / Deep Sea Manual for LSC / Deep Sea
shutdown procedures.
2. Set the LSC / Deep Sea mode switch to OFF.
Automatic engine shutdown
The engine is equipped with an automatic engine shutdown
system to prevent excessive engine damage in the event of
low oil pressure or high coolant temperature. For additional
information, refer to the engine operator's manual.
Operating The Tower Lights
Raise the light tower before operating the tower lights.
SeeOperation-Raising And Lowering The Light Tower.
To turn lights on
1. Open the left engine compartment access door (A,
Figure21). Locate the main breaker (B) on the rear wall.
Turn the main breaker to ON.
21
2. Turn the individual light breakers (A, Figure22) (1 - 4 or 1
- 6, depending on model) to ON.
To turn lights off
1. Turn the individual light breakers (1 - 4 or 1 - 6,
depending on model) to OFF.
2. Turn the main breaker to OFF.
22
Auxiliary AC Outlets
Units come equipped with a variation of auxiliary AC outlets.
See Figure23and the table following.
23
A 120V GFCI
Outlets
Outlets provide 120V power protected by ground
fault circuit interrupter (GFCI)
B GFCI Reset
Buttons
Resets GFCI Outlets
C Auxiliary
Outlets
Various auxiliary outlets
