Allmatic MOVEO Series User Manual

ENG
9 / 32
6-1624870 rev. 2 23/06/2020
VERSIONS AND TECHNICAL FEATURES
Irreversible operating devices for sliding gates. The irreversibility of this operating device allows you to avoid using any electric lock for an effective closing
of the gate. The motor is protected by an heat probe, that temporary interrupts the operating cycle in case of prolonged use.
A - MOVEO operator
B - Photocells (external)
C - Rack M4
D - Key selector
E - Tuned antenna
F - Flashing lamp
G - Limit switch cams
H - Safety edge fixed to column
I - Safety edge with wireless system
J - Photocells (internal)
K - Galvanized column for photocells
L - Mechanical stops
J
J
L
K
K

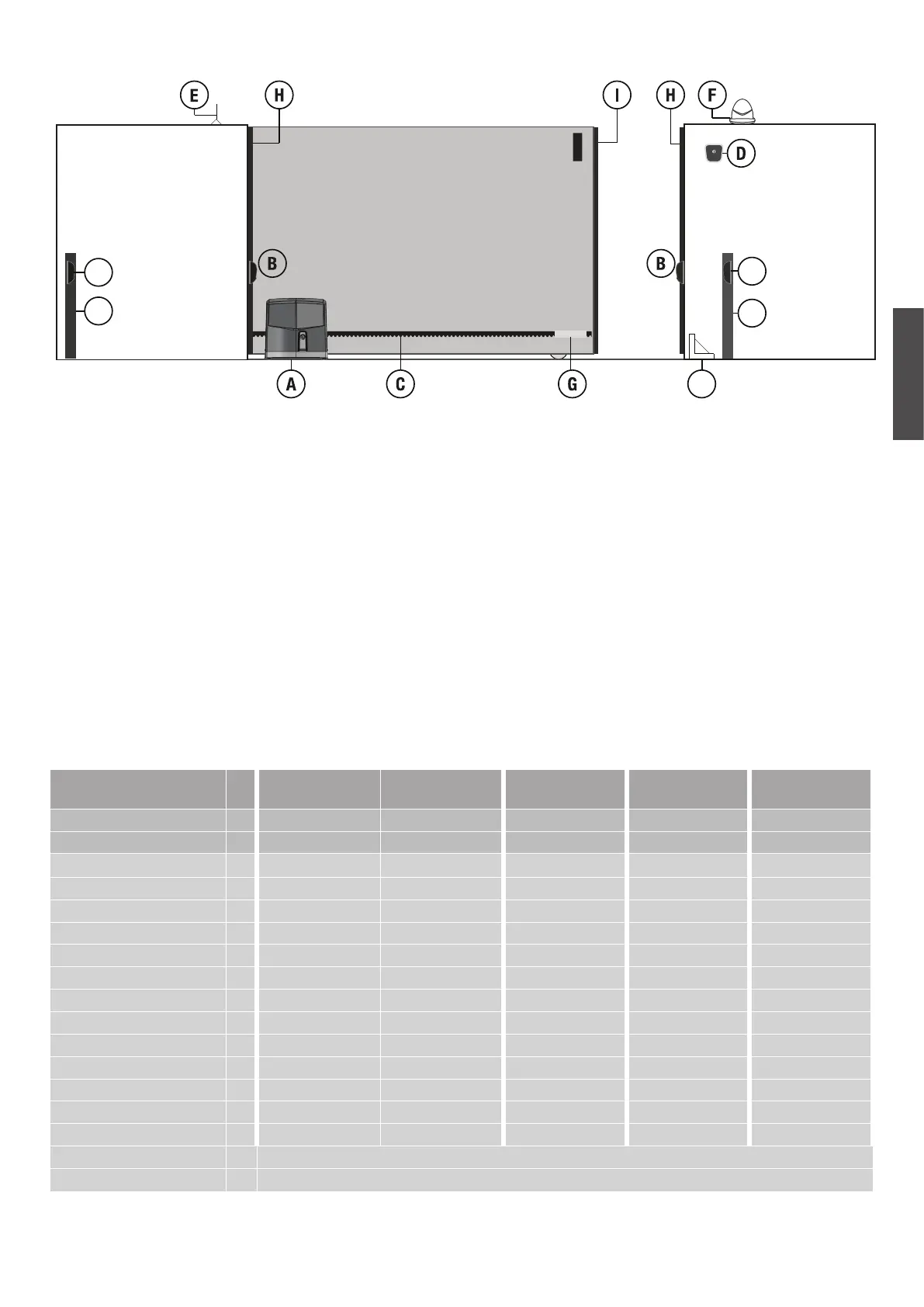

SYSTEM LAYOUT
Fig. 1
TECHNICAL FEATURES MOVEO 600KG 230V MOVEO 800KG 230V MOVEO 600KG 120V MOVEO 700KG 24V MOVEO 500KG 24V
FAST
Code 12007920 12007922 12007930 12007950 12007960
Code (magnetic limit switch) 12007925 12007926 12007935 12007951 12007961
Max. leaf weight Kg 600 800 600 700 500
Operating speed
m/s
0,20 0,20 0,23 0,22 0,30
Thrust force to constant turns
N
500 600 500 600 600
Rack M4 M4 M4 M4 M4
Power supply 230V~ 50Hz 230V~ 50Hz 120V~ 60Hz 230V~ 50Hz 230V~ 50Hz
Motor power supply 230V~ 50Hz 230V~ 50Hz 120V~ 60Hz 24Vdc 24Vdc
Nominal power W 270 290 410 75 120
Current absorbed A 1.3 1.4 3.5 3 5
Capacitor µF 12.5 12.5 50 - -
Daily operations suggested n° 200 200 200 400 400
Guaranteed consecutive cycles n° 10 10 10 50 50
Service % 30 30 30 100 80
Noise db <70 <70 <70 <70 <70
Working temperature °C -10...+55
Protection IP 44
