BASE PLATE INSTALLATION

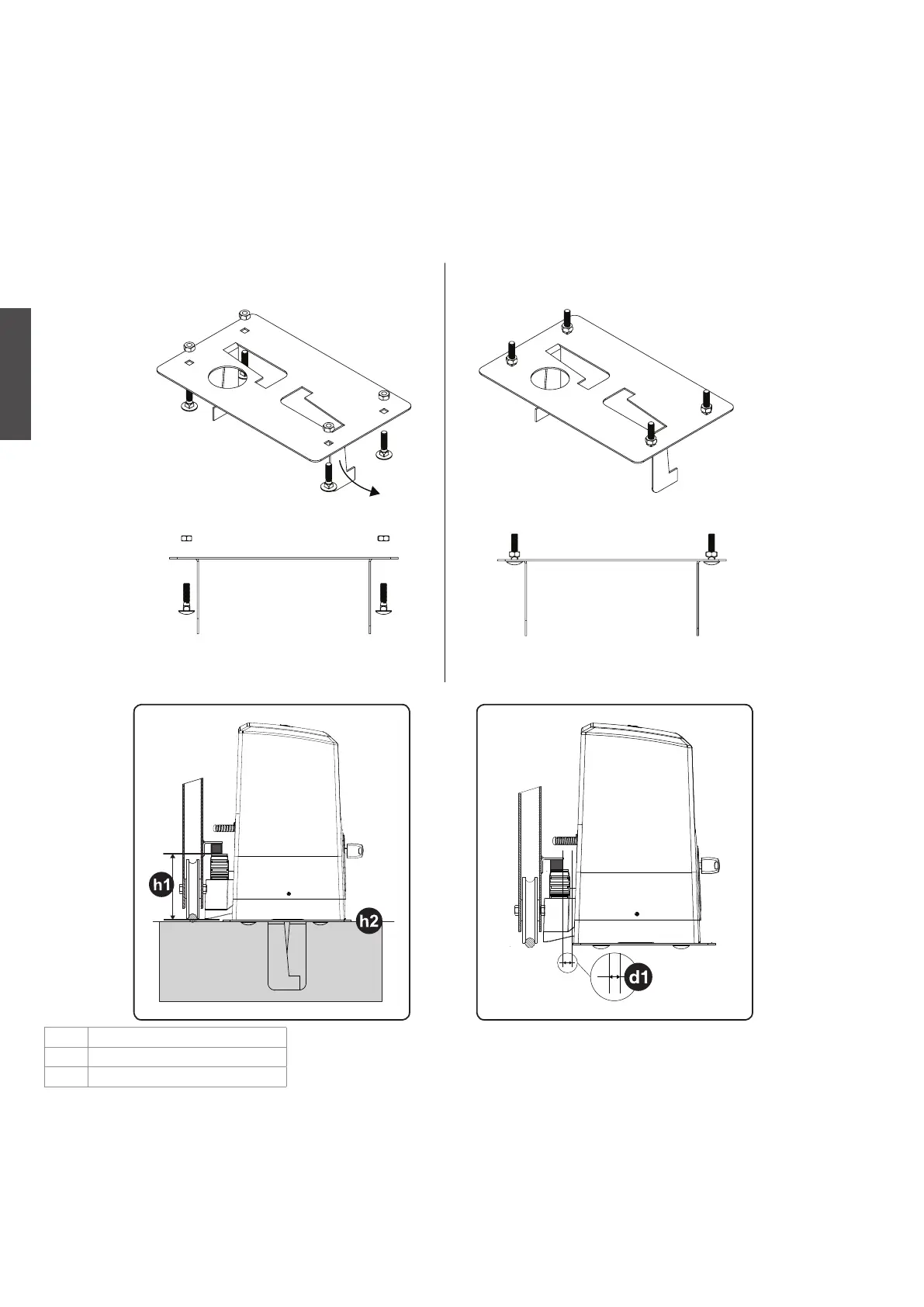

1. Push the achors until they are 90° as shown in the picture
2. Insert the 4 screws (supplied) as shown in the image, from the bottom to the top of the backing plate
3. Screw completely the 4 nuts (supplied) as shown in the image
4. Position the backing plate with the tightened screws and nuts on the concrete foundation (wet cement)
5. Wait for the necessary time (2-3 weeks)
6. Unscrew the nuts previously tightened from the 4 screws
7. Proceed with the positioning and fixing of the MOVEO geoarmotor (use the same nuts previously used)
Plan for one or more sheathing for the passage of the power lines.
Note: It is necessary to know the rack dimensions to can calculate exactly the counter-plate positioning (Fig. 4).
Fig. 2
Fig. 3 Fig. 4
h1 93 mm
h2 2 mm (backing plate thikness)
d1 0 ÷ 10 mm
