ENG
11 / 32
6-1624870 rev. 2 23/06/2020

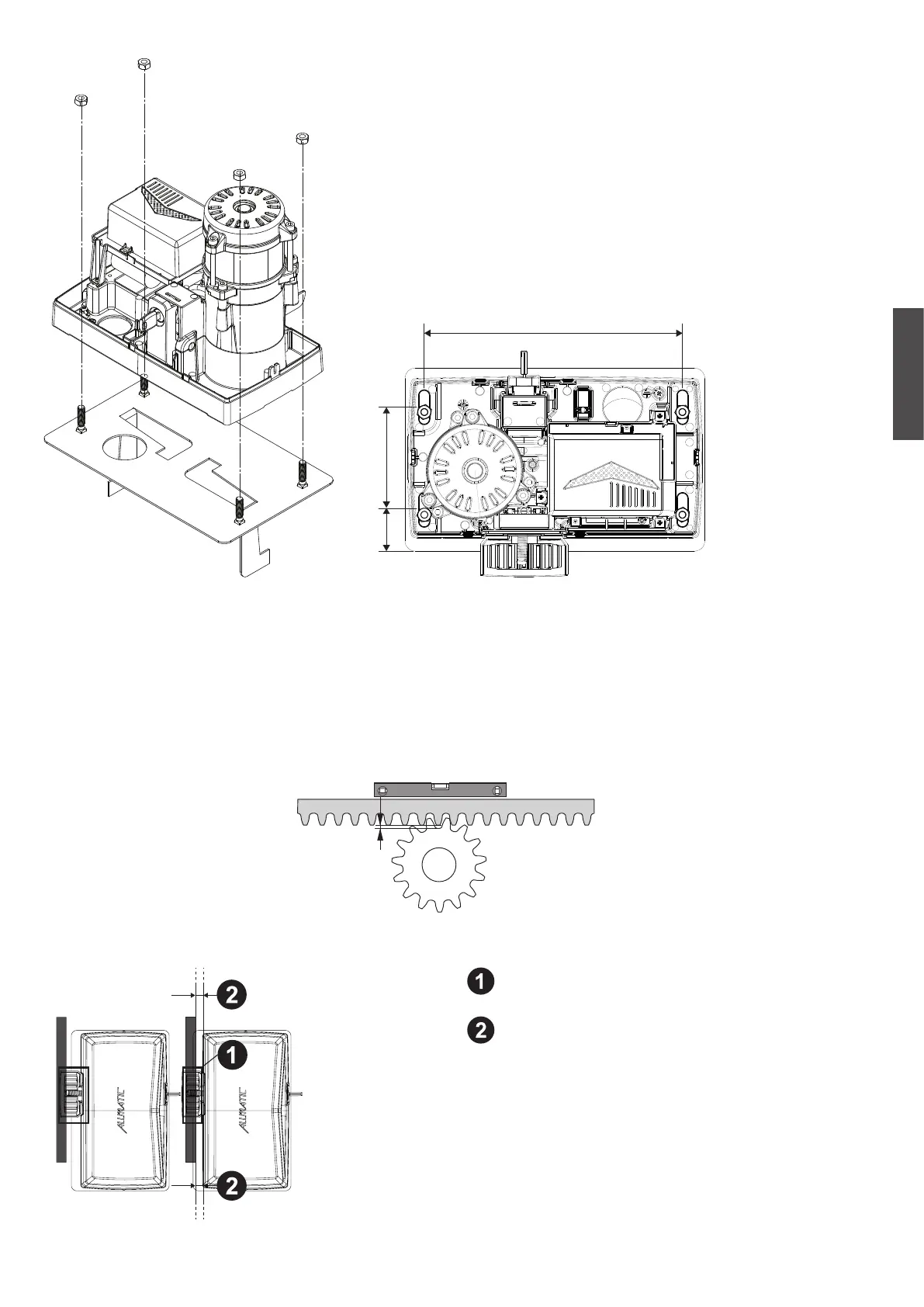

MOTOR FITTING
Fig. 5
100 42
To fix the motor to the counterplate, insert and screw the 4 nuts (Fig. 5). Position the motor in parallel with the gate and with the gear under the rack
as shown in Fig. 8.
N.B. It is important to energetically tighten the 4 nuts, making sure that the gearmotor is firmly on the ground during the entire stroke of the gate.
RACK FITTING
The rack must be fixed at a certain height with respect to the motor fixing plate (Fig. 3). This height can be changed thanks to the slots on the rack.
The height adjustment is made so that the gate doesn’t rest on the motor gear drive (Fig. 7) during movement. To fix the rack on the gate, make
holes of Ø 5 mm and thread them using a male of the M6 type. The drive gear must be approximately 1 mm to 2 mm away from the rack
(Fig. 7).
1mm...2mm
Fig. 7
GEARMOTOR POSITIONING IN RELATION TO THE GATE
NO OK
Fig.8
WARNING! Position the motor with the pinion under the rack as
shown in figure 8
WARNING ! The distance between the motor and the gate must be
constant throughout the stroke.
