SR OPERATORS MANUAL
Fuse
Controller Amperage Fuse Rating
400A or less 250A
450A to 650A 400A
650A or more 600A
FUSE
NUT
LOCK WASHER
FLAT WASHER
BOLT
WIRE LUG

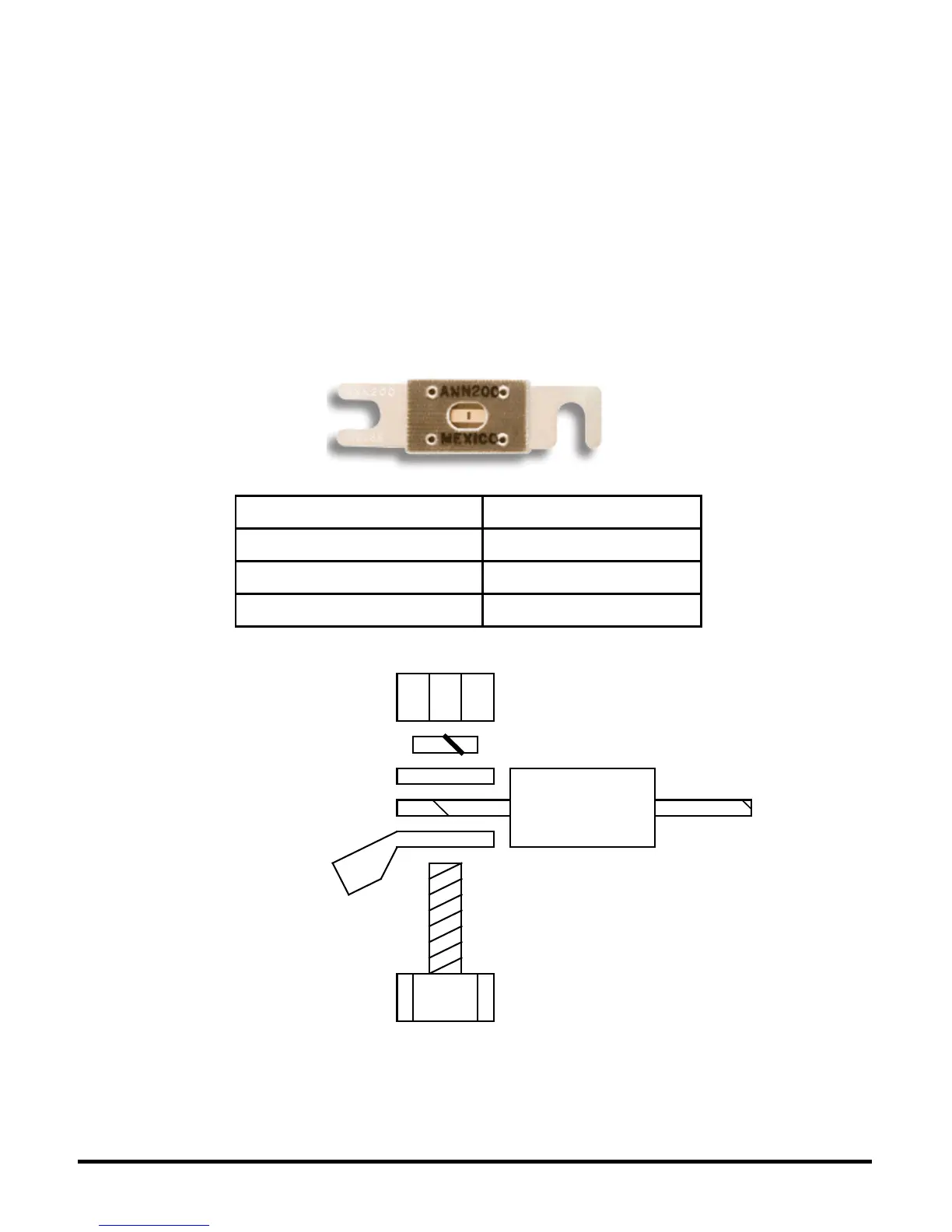

Diagram: Fuse terminal hardware
Any application where there is a battery pack, a fuse must be
installed. A fuse will open the battery circuit and prevent any
serious damage from occurring.
The fuse should be installed on or between the battery terminals.
The main B+, B- or in-between 2 batteries is an acceptable
location. The fuse must be rated for pack voltage and fault current.
