SR OPERATORS MANUAL
PROGRAMMING THE CONTROLLER
Controllersorderedforstockcongurationsarepre-programmed
from Alltrax and it is not necessary to re-program unless the
customerhasspecicneeds.Ifthecontrollerdoesneedtobe
programmed it can be done via a USB A to B cable and the Alltrax
Toolkit program. Visit our website for more information on
programming the controller including the Alltrax Toolkit Manual
(DOC113-002) and instructional videos.

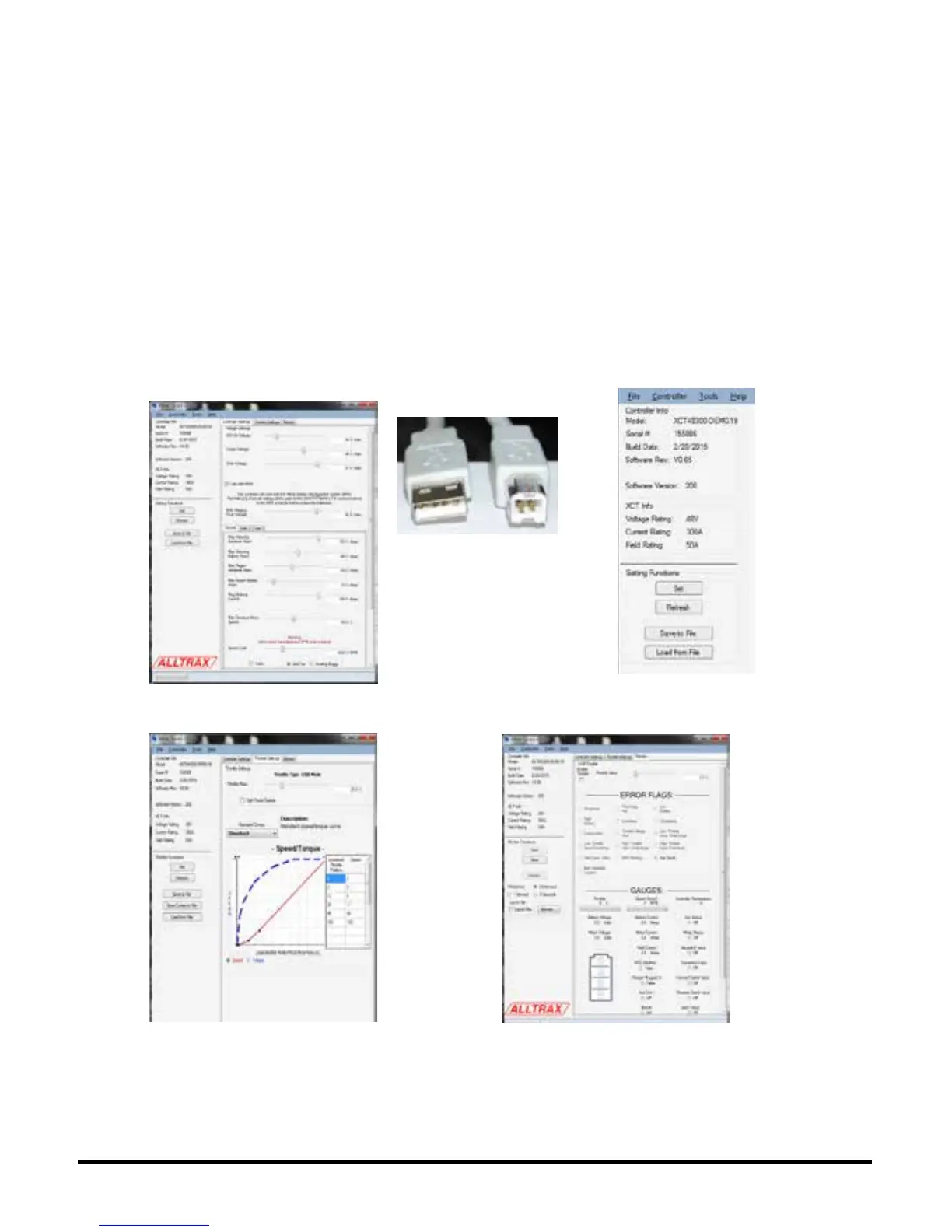

The cable needed is the USB-A
to B. This is the most common
USB printer style cable
Settings Screen
Throttle Screen
Controller Info Tab
Monitor Screen
