SR OPERATORS MANUAL

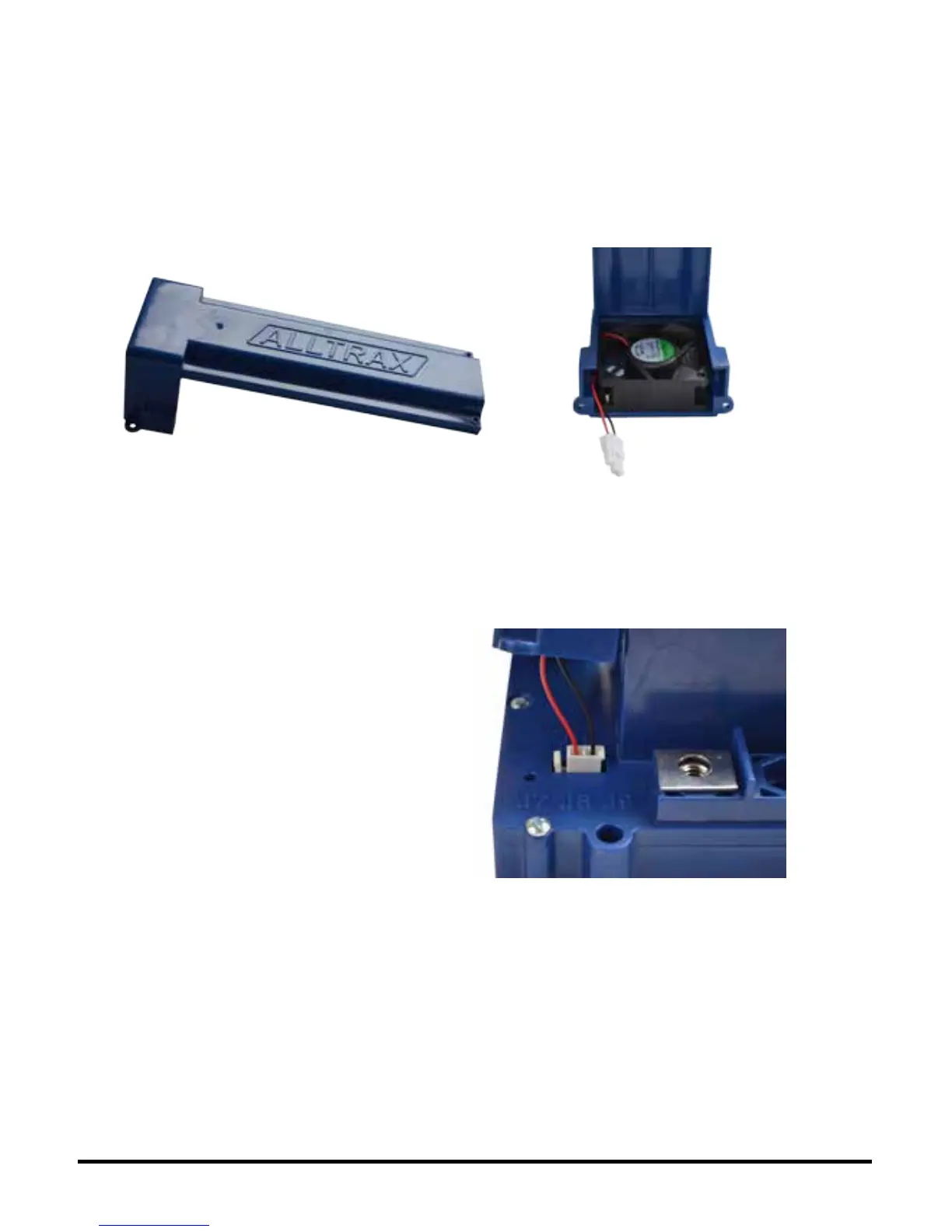

FAN COVER (OPTIONAL)
The XCT family of controllers also includes an optional Fan
Cover. This cover comes standard on the 500A & 600A controllers.
Installation:
1) Plug Fan Cover into
controller fan port. (See picture)
2) Fasten cover down with the
four (4) supplied screws.
Note: Make sure wires are
tucked out of the way and are
not being pinched by the cover.
