Alpha-InnoTec LW - Attaching the Air Flow Baffles

12
We reserve the right to modify technical specifications without prior notice.
83051400aUK © Alpha-InnoTec GmbH
1 top cover of unit
2 upper facing panels
The top cover of the unit was fastened by the upper
facing panels. After removal of the upper facing pan-
els, the top cover is loose. Remove top cover and
set securely aside...
Install air ow bafes...
•
Suspend air ow bafes in the brass bushes on the
top side of the frame...

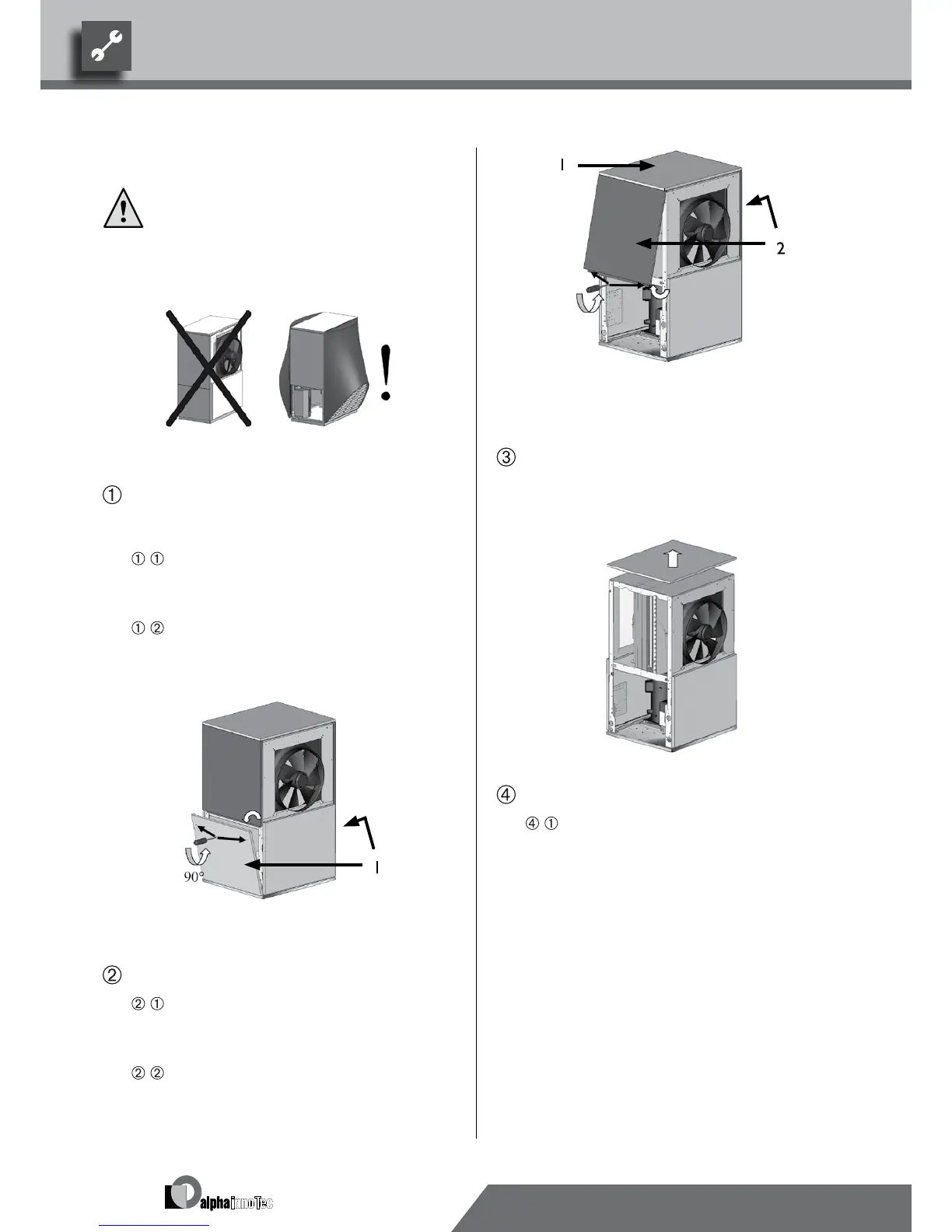

attaChingtheairFlowbaFFles
WARNING!
Unit has rotating parts.
For safety reasons, mount the two air ow
bafes on the unit before continuing with
any other work.
Proceed as follows:
If you have not already done so, remove lower
facing panels on the switch cabinet and water con-
nection side of the unit...
•
To do so, loosen the two quick-release screws on
the lower facing panels...
•
Pull each facing panel forward, detach from the unit
and set securely aside...
1 lower facing panels
Remove upper facing panels from unit...
•
To do so, loosen the two screws on the lower edg-
es of the upper facing panels...
•
Pull each facing panel downward and forward, de-
tach from top cover of unit and set securely aside...
