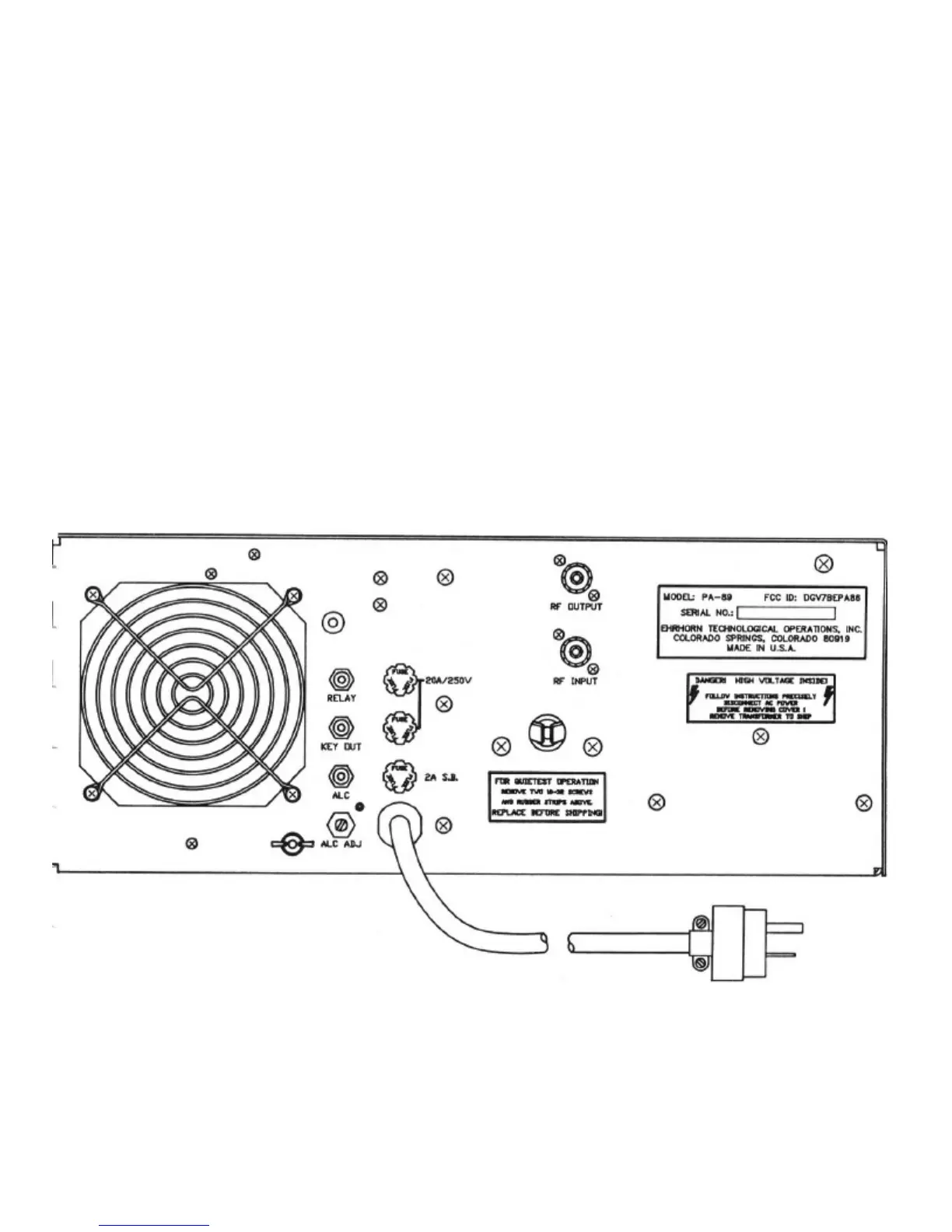

6.0 INSTALLATION (Refer to fig. 7, page 11)
6.1 Connect a 50 ohm coax cable 60-72" long (supplied) from the transceiver RF output to
the ALPHA 89's RF INPUT jack.
6.2 Connect a transceiver T/R control line which is shorted on transmit and open on receive to
the 89's RELAY jack, using a standard "RCA" ("phono") plug. Cable should be shielded type.
6.3 Connect a nominally 50 ohm antenna for the frequency to be used to the 89's RF OUTPUT jack.
6.4 If desired, connect a cable from the the ALC jack to the transceiver ALC input, using an RCA
plug. See sect. 8.3.
6.5 Connect a heavy copper strap or braid from the ground stud & wing nut on the rear panel of the
ALPHA 89 to the chassis of the transceiver and other station equipment, and to the main station RF
ground.
6.6 Connect to AC power consistent with tap selected. CAUTION! Be sure the 89 green wire con-
nects to AC ground or neutral!
