Alpha Technologies APP 9015S - Figure 1-2; APP 9022 S Service Power Supply, Front Panel

1. Introduction
15
© 2002
TM
016-537-B0-002 Rev. B

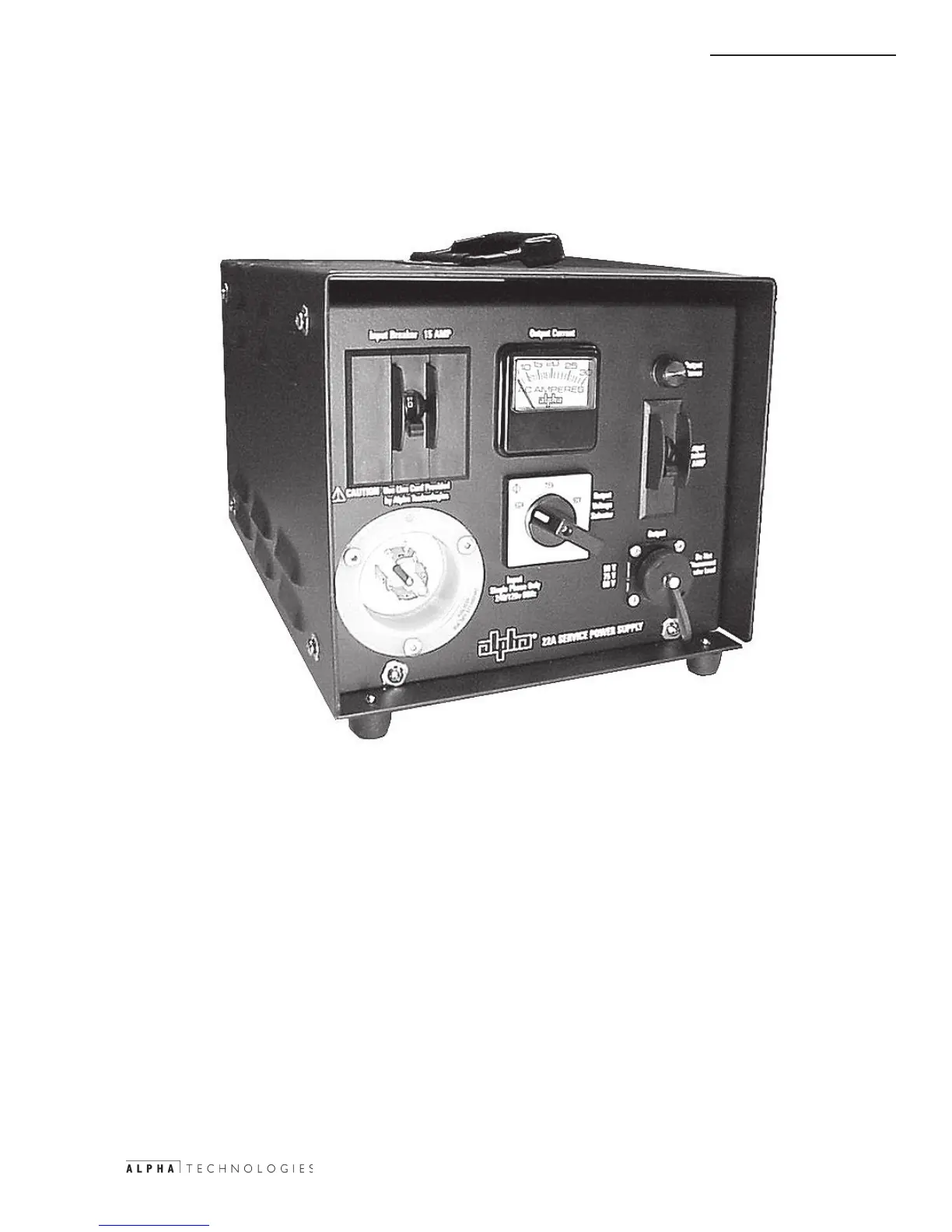

Figure 1-2; APP 9022S Service Power Supply, Front Panel
1
2
3
4
5
6
7
1. Output Current
2. Output Power Indicator
3. 30 AMP Output Breaker
4. 60/75/90V Output Connector
5. 60/75/90 Output Selector Dial
6. 120/240V Input Connector
7. 15 AMP AC Input Breaker/
Power Switch
1.3 APP Service Power Supply Features, continued
