2.0 Operation, continued
2.9 Output, Alarm and Oil LEDs
Before connecting or reconnecting a power supply to the generator, check that it is in good condition and that its
electrical rating does not exceed that of the generator.
CAUTION!
Use Fig. 2-10 and Table 2-1 to understand the different LED states of the generator.

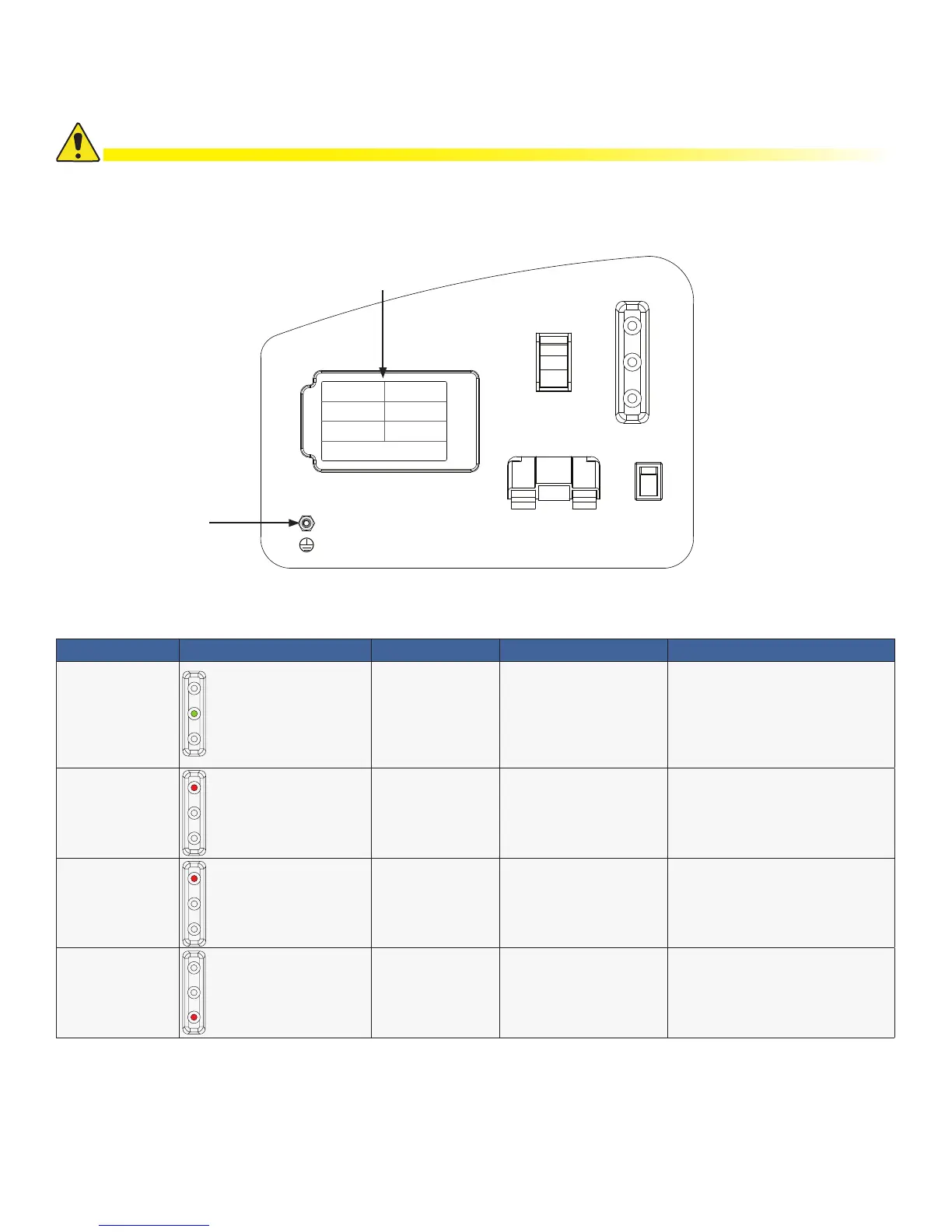

Fig. 2-10, Control Panel
(data values shown for illustration purposes only)
OUTPUT BREAKER
LCD Display
V: 40.3V I: 00.0A
P:0000W
Oil: OK ALM:
Time: 004H 27M
Ground Stud
DC OUTPUT
OUTPUT
ALARM
OIL
ENGINE
ON
OFF
State LED State LCD Display Text Output State Corrective Action
Normal Operation
V = Voltage (V)
I = Current (A)
P = Power (W)
Oil = “_OK”
ALM = no display
Time = Hour; Min
Engine running; Output
ON
Overload ALM = “OL”
Engine running; Output
OFF after 2-3 seconds
Disconnect the power supply
and investigate the cause of the
overload; manual reset (the output
LED should turn green within 10
seconds)
Module Overheat ALM = “OH”
Engine running; Output
OFF after 5 seconds
Manual reset
Critical Low Oil
Shutdown
Oil = “LO_”
(Display stays on
2-3 seconds after
alarm initiates)
Engine OFF; Output
OFF
Replenish oil; manual reset
Table 2-1, LED States
OUTPUT
ALARM
OIL
ALARM
(if possible)
(stays on 2-3
seconds after
alarm initiates)
(ashes during
overload)
