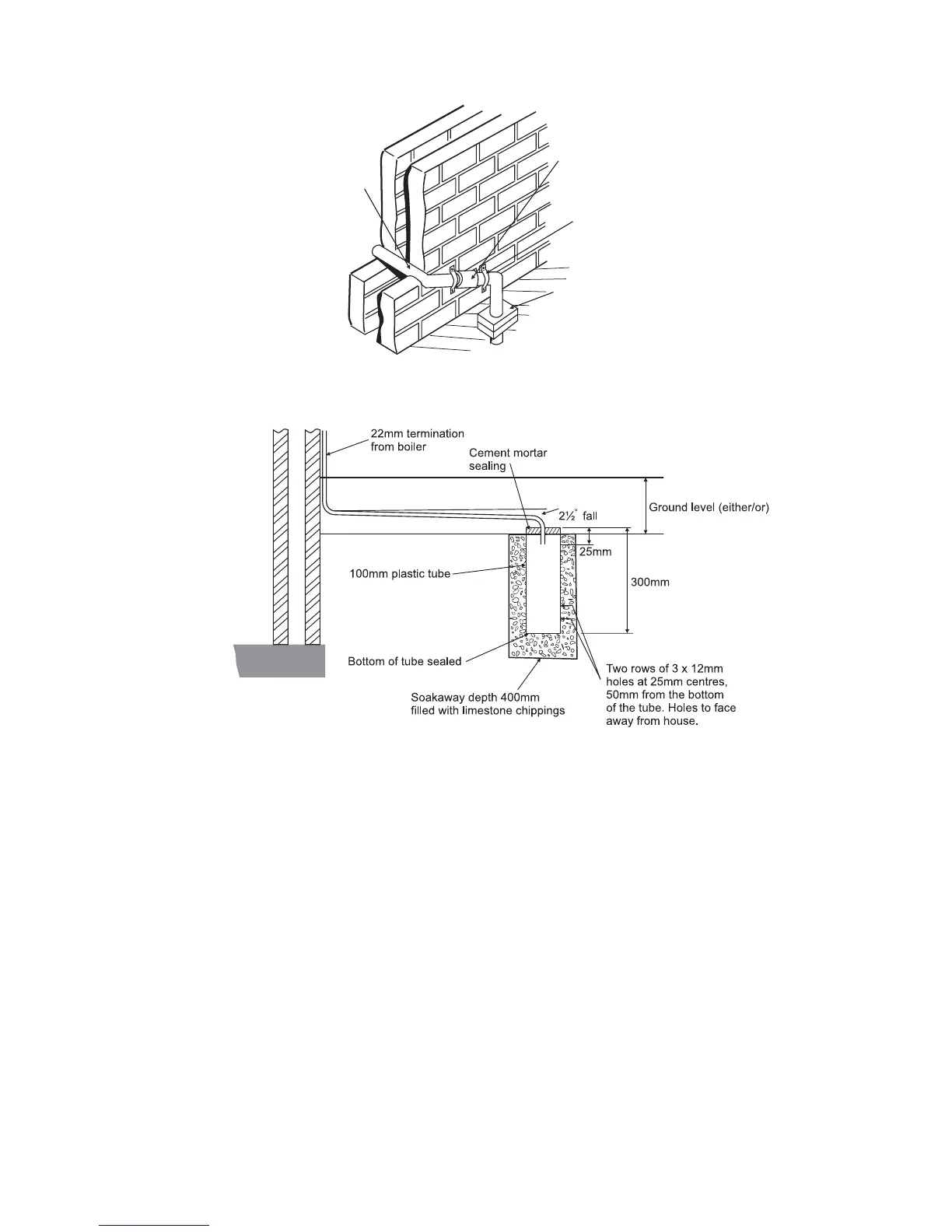

Fig. 9 - External soakaway
3.11 DOMESTIC HOT WATER SYSTEM
The mains water supply must be first connected to the pressure reducing valve (supplied with the boiler) which will regulate the
water supply to 2.5 bar. However, all taps and mixing valves used with the hot water system must be suitable for operating at a
pressure of up to 5.5 bar.
To ensure economic use, the pipe runs between the boiler and taps should be in 15 mm copper pipe and be as short as
possible. Where possible the pipework should be insulated to reduce heat loss.
Showers - A shower may be used with the boiler if required.
If a loose or flexible head type shower is used it may require the fitting of a double check valve, to comply with Water Bye Law 17.
Bidets - No anti-syphonage arrangements are necessary, provided the outlets are shrouded and it is not possible to attach a temporary
hand held spray. A supply of direct mains fed hot and cold water is permitted provided the appliance is of the over-rim flushing type.
Before the mains water supply pipe is connected to the boiler, it should be thoroughly flushed out to avoid the danger of dirt or
foreign matter entering the boiler and the filter incorporated within the pressure reducing valve cleaned.
The stored water temperature is adjustable to a maximum of 65°C. In hard water areas this should avoid possible scale build-up,
although it is still advisable to reduce the DHW thermostat setting in such areas. However, if descaling is necessary contact Alpha
Therm Ltd. for guidance.
Fig. 8 - External gully
Open end of pipe
divertedinto gully
below grid butabove
waterlevel
Use waterproof
pipework insulation
in very exposed
positions
Ensure pipe is
adequately supported
Plastic pipe
Minimum gradient 2½°
