Alpha E-Tec Plus 28 and 33 - Routine Servicing

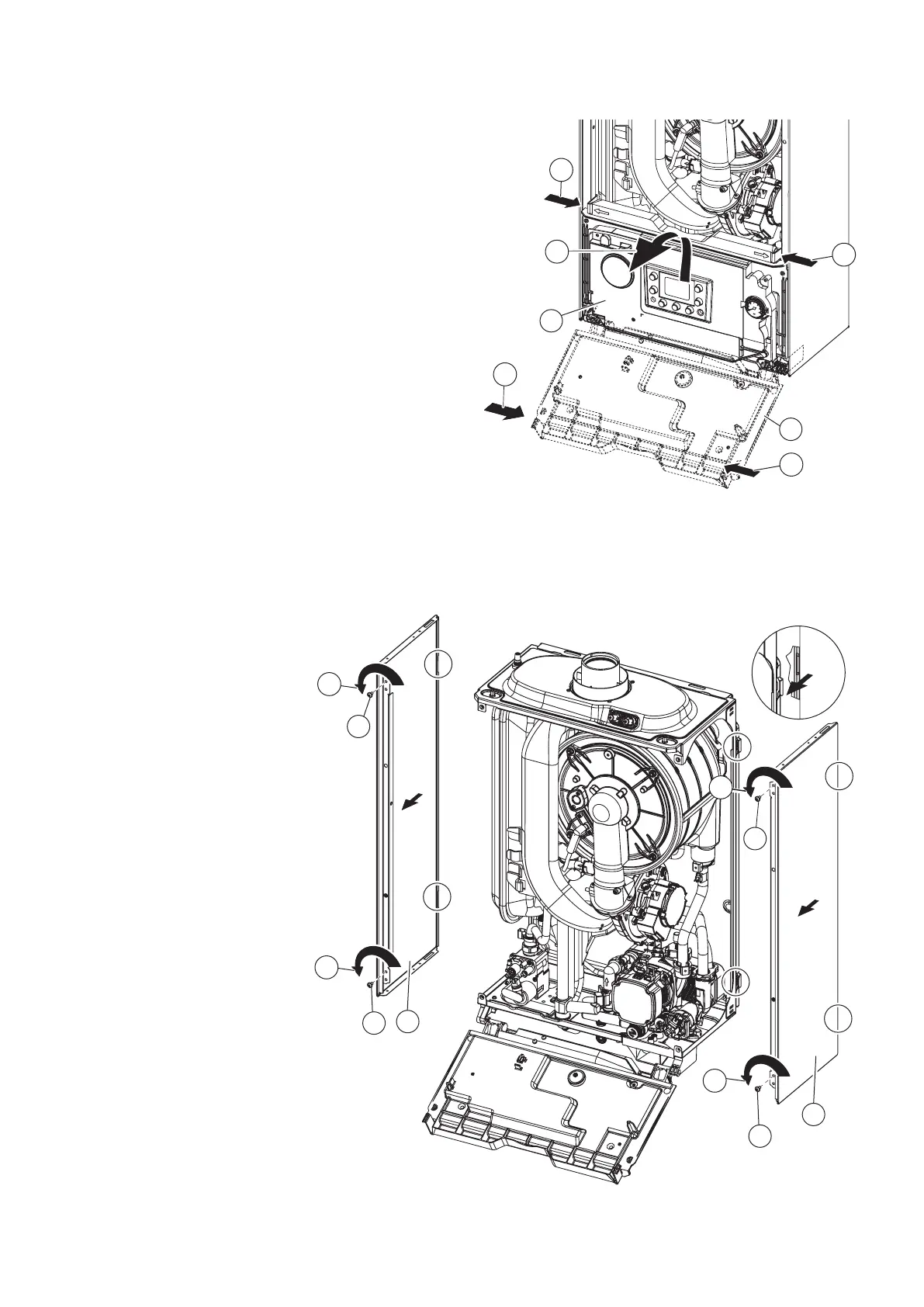

Control panel - Fig. 7.3
6. Press the hooks on the side of the control panel (G).
7. Tilt the control panel (G) towards you.
Side panels - Fig. 7.4
8. Remove the screws 'H' securing the side panel 'I'. Lift
the side panel and pull it forwards unhooking it from
the rear panel (view 'A' in Fig. 7.4) Lower the panel
out and away from the top cover.
Note: The side panels require no sealing strip as the front
case insulation forms the room seal.
Fig. 7.3
Fig. 7.4
