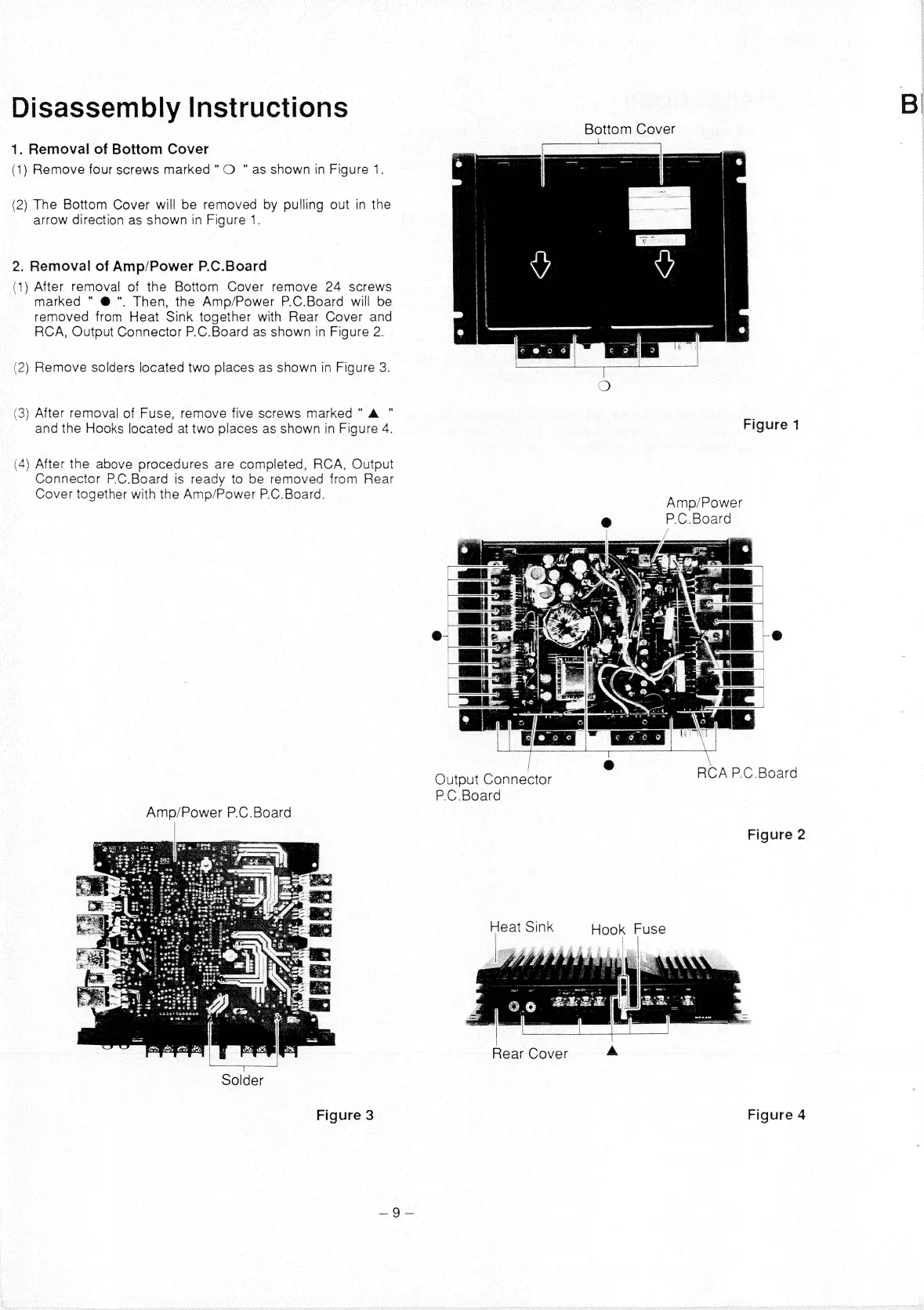

Disassembly
Instructions
1.
Removal
of
Bottom
Cover
(1)
Remove
four
screws
marked
"as
shown
in
Figure
1.
Bottom
Cover
(2)
The
Bottom
Cover
will
be
removed
by
pulling
out
in
the
arrow
direction
as
shown
in
Figure
1.
2.
Removal
of
Amp/Power
P.C.Board
(1)
After
removal
of
the
Bottom
Cover
remove
24
screws
marked
"
@
".
Then,
the
Amp/Power
P.C.Board
will
be
removed
from
Heat
Sink
together
with
Rear
Cover
and
RCA,
Output
Connector
P.C.Board
as
shown
in
Figure
2.
(2)
Remove
solders
located
two
places
as
shown
in
Figure
3.
(3)
After
removal
of
Fuse,
remove
five
screws
marked
"
&
"
i
and
the
Hooks
located
at
two
places
as
shown
in
Figure
4.
Figure
1
(4)
After
the
above
procedures
are
completed,
RCA,
Output
Connector
P.C.Board
is
ready
to
be
removed
from
Rear
Cover
together
with
the
Amp/Power
P.C.
Board.
Amp/Power
®
P.C.Board
|
i
|
\
|
\
Output
Connector
RCA
P.C.Board
P.C.Board
Amp/Power
P.C.Board
Figure
2
Heat
Sink
Hook
Fuse
|
Rear
Cover
A
Solder
Figure
3
Figure
4
