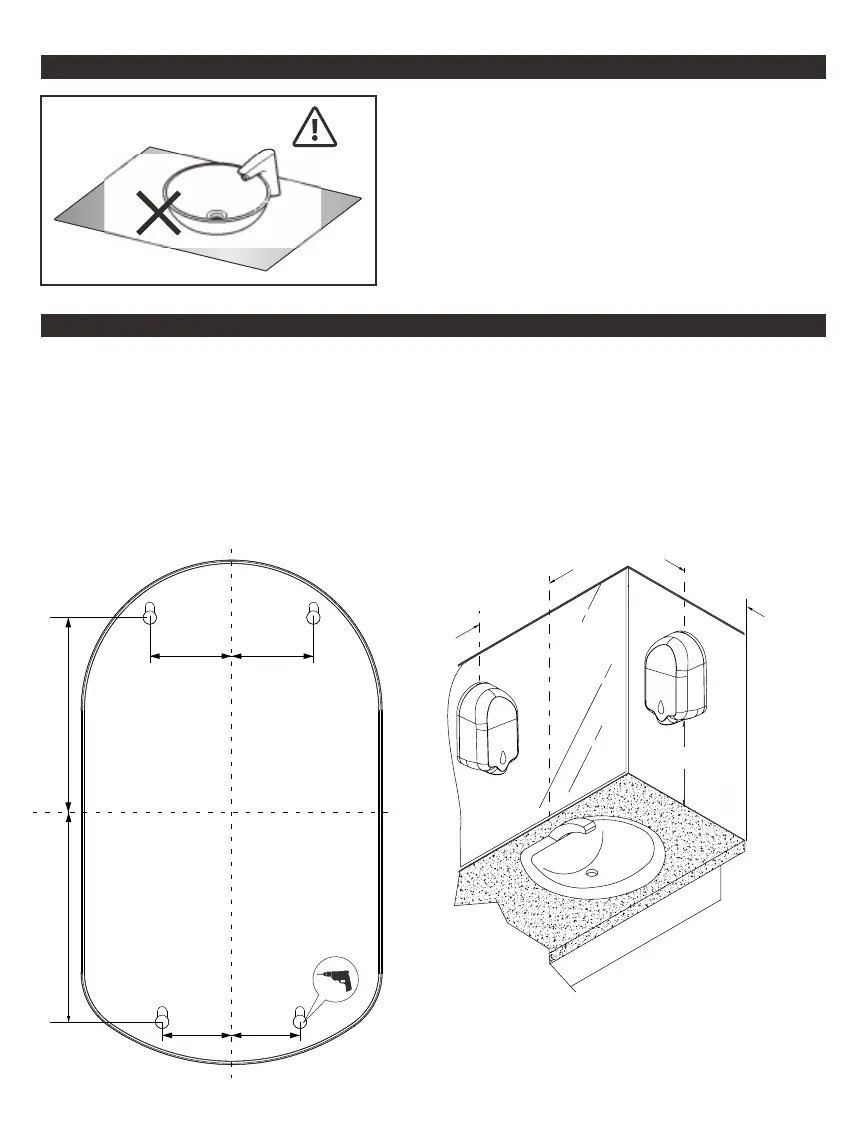

It is recommended to avoid installation of dispenser
near high reflective objects (mirror, stainless steel
washbasins, etc.) in order to avoid faulty function of the
sensor.
If it is installed near a wash basin and 9.8" (250MM)
from dispenser’s bottom to the basin desk is required.
BEFORE INSTALLATION
INSTALLATION
BEFORE INSTALLATION
Find a vertical, clean and smooth mounting surface.
Make sure there is enough room above dispenser to access cover lock key.
Ensure there are no obstructions below unit in sensor range.
Check operation of unit while holding in place by hand BEFORE permanent installation
INSTALLATION
Drill four [ 4] holes as seen in the following diagram of 6x18MM [ 15/64" Dia.x 45/64" ] deep if you are
using wall anchors supplied with unit. Install supplied anchors against the wall face, or install another
fastening
system suitable for wall conditions (not supplied). Attach dispenser to wall.
90.45MM[3-9/16"]
97.3MM[3-13/16"]
38MM
27MM
27MM
[3-1/2"]
[1-1/16"]
[1-1/16"]
38MM
[3-1/2"]
Dia.Φ6ΜΜ
[15/64"]
“X” Distance [ Minimum ]:
Normal Counter Top: > 200 MM [ 7-7/8" ]
Stainless Steel Counter Top: >300 MM [11-13/16"]
254MM
[10"]
254MM
[10"]
X
