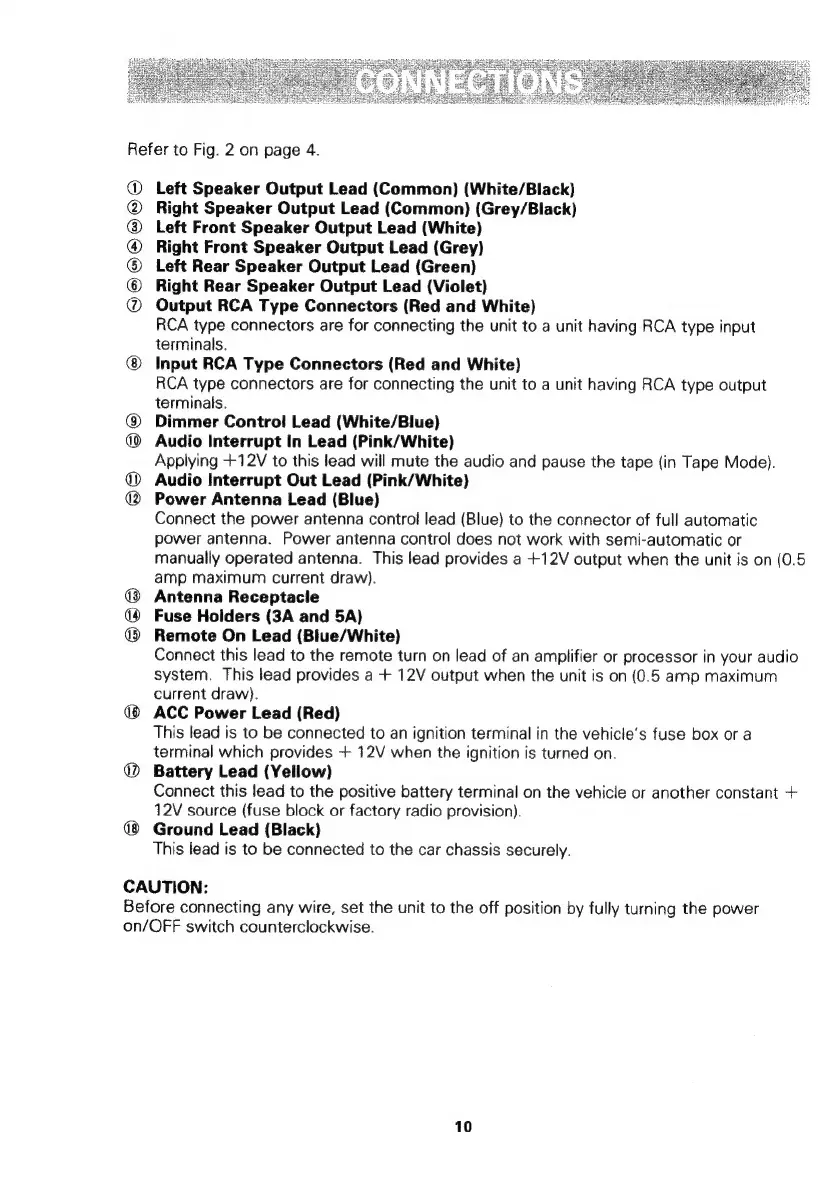

Refer to Fig. 2 on page 4.
®
®
®
®
®
©
2)
Left Speaker Output Lead (Common) (White/Black)
Right Speaker Output Lead (Common) (Grey/Black)
Left Front Speaker Output Lead (White)
Right Front Speaker Output Lead (Grey)
Left Rear Speaker Output Lead (Green)
Right Rear Speaker Output Lead (Violet)
Output RCA Type Connectors (Red and White)
RCA type connectors are for connecting the unit to a unit having RCA type input
terminals.
Input RCA Type Connectors (Red and White)
RCA type connectors are for connecting the unit to a unit having RCA type output
terminals.
@ Dimmer Control Lead (White/Blue)
@ Audio Interrupt In Lead (Pink/White)
Applying +12V to this lead will mute the audio and pause the tape (in Tape Mode).
@ Audio Interrupt Out Lead (Pink/White}
@® Power Antenna Lead (Blue)
Connect the power antenna control lead (Blue) to the connector of full automatic
power antenna. Power antenna control does not work with semi-automatic or
manually operated antenna. This lead provides a +12V output when the unit is on (0.5
amp maximum current draw).
@® Antenna Receptacle
@ Fuse Holders (3A and 5A)
4 Remote On Lead (Blue/White)
Connect this lead to the remote turn on lead of an amplifier or processor in your audio
system. This lead provides a + 12V output when the unit is on (0.5 amp maximum
current draw).
@® ACC Power Lead (Red)
This lead is to be connected to an ignition terminal in the vehicle's fuse box or a
terminal which provides + 12V when the ignition is turned on.
@ Battery Lead (Yellow)
Connect this lead to the positive battery terminal on the vehicle or another constant +
12V source (fuse block or factory radio provision).
@® Ground Lead (Black)
This lead is to be connected to the car chassis securely.
CAUTION:
Before connecting any wire, set the unit to the off position by fully turning the power
on/OFF switch counterclockwise.
