7513M/7513L
7514M/7514L
7513M/7513L
7514M/7514L
:

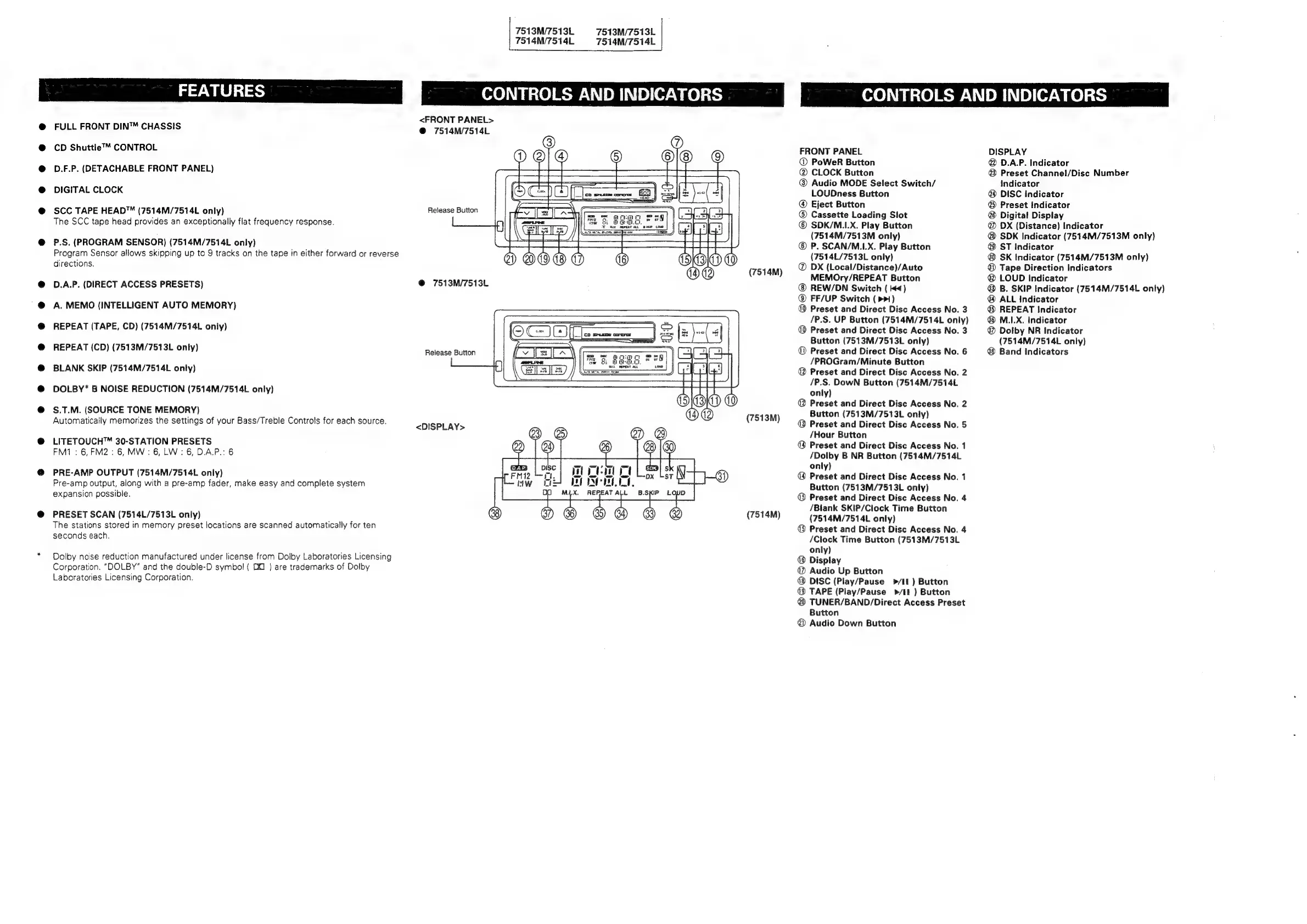

FEATURES
CONTROLS
AND
INDICATORS
CONTROLS
AND
INDICATORS
FULL FRONT DIN™ CHASSIS
CD Shuttle™ CONTROL
D.F.P. (DETACHABLE FRONT PANEL)
DIGITAL CLOCK
SCC TAPE HEAD™ (7514M/7514L only)
The SCC tape head provides an exceptionally flat frequency response.
P.S. (PROGRAM SENSOR) (7514M/7514L only)
Program Sensor allows skipping up to 9 tracks on the tape in either forward or reverse
directions.
D.A.P. (DIRECT ACCESS PRESETS)
A. MEMO (INTELLIGENT AUTO MEMORY)
REPEAT (TAPE, CD) (7514M/7514L only)
REPEAT (CD) (7513M/7513L only)
BLANK SKIP (7514M/7514L only)
DOLBY* B NOISE REDUCTION (7514M/7514L only)
S.T.M. (SOURCE TONE MEMORY)
Automatically memorizes the settings of your Bass/Treble Controts for each source.
LITETOUCH™ 30-STATION PRESETS
FM1 : 6,FM2: 6, MW: 6, LW: 6, DAP.: 6
PRE-AMP OUTPUT (7514M/7514L. only)
Pre-amp output, along with a pre-amp fader, make easy and complete system
expansion possible.
PRESET SCAN (7514L/7513L only)
The stations stored in memory preset locations are scanned automatically for ten
seconds each.
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing
Corporation. “DOLBY” and the double-D symbol ( 00 } are trademarks of Dolby
Laboratories Licensing Corporation.
<FRONT PANEL>
@ 7514M/7514L
Release Button
@ 7513M/7513L
Release Button
<DISPLAY>
Scitirs=s
(7514M)
(7513M)
(7514M)
FRONT PANEL
® PoWeR Button
@ CLOCK Button
® Audio MODE Select Switch/
LOUDness Button
@ Eject Button
® Cassette Loading Slot
© SDK/M.1.X. Play Button
(7514M/7513M only)
© P. SCAN/M.I.X. Play Button
(7514L/7513L only)
@ DX (Local/Distance)/Auto
MEMOry/REPEAT Button
REW/DN Switch { ¢<)
@ FF/UP Switch ( >>)
@ Preset and Direct Disc Access No. 3
/P.S. UP Button (7514M/7514L only)
@ Preset and Direct Disc Access No. 3
Button (7513M/7513L only)
@ Preset and Direct Disc Access No. 6
/PROGram/Minute Button
@ Preset and Direct Disc Access No. 2
/P.S. DowN Button (7514M/7514L
only)
@ Preset and Direct Disc Access No. 2
Button (7513M/7513L only)
@® Preset and Direct Disc Access No. 5
/Hour Button
@ Preset and Direct Disc Access No. 1
/Dolby B NR Button (7514M/7514L
only)
@ Preset and Direct Disc Access No. 1
Button (7513M/7513L only)
@ Preset and Direct Disc Access No. 4
/Biank SKIP/Clock Time Button
(7514M/7514L only)
® Preset and Direct Disc Access No. 4
/Clock Time Button (7513M/7513L
only)
@ Display
@ Audio Up Button
@ DISC (Play/Pause »/I1) Button
@ TAPE (Play/Pause »/t ) Button
@ TUNER/BAND/Direct Access Preset
Button
@ Audio Down Button
DISPLAY
@ D.A.P. Indicator
@ Preset Channel/Disc Number
Indicator
@ DISC indicator
® Preset Indicator
@ Digital Display
@ DX (Distance) Indicator
@ SDK Indicator (7514M/7513M only)
® ST Indicator
@ SK Indicator (7514M/7513M only)
@) Tape Direction Indicators
@ LOUD Indicator
@ B. SKIP Indicator (7514M/7514L only)
® ALL Indicator
@ REPEAT Indicator
@ M.I.X. Indicator
@ Dolby NR indicator
(7514M/7514L only)
@ Band Indicators
