Alpine CDE-135BT User Manual

9-EN
Accessory List
• Head Unit ..................................................................................1
• Power Cable ..............................................................................1
• Microphone ..............................................................................1
• USB extension cable.................................................................1
• Mounting Sleeve ......................................................................1
• Carrying Case............................................................................1
• Rubber Cap ...............................................................................1
• Hex Bolt.....................................................................................1
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
Turning Power On and Off
Press SOURCE to turn on the unit.
Note
• The unit can be turned on by pressing any other button except  and
e (Release).
Press and hold SOURCE for at least 2 seconds to turn
off the unit.
Note
• The first time power is turned on, the volume will start from level 12.
Source Selection
Press SOURCE to change the source.
TUNER  DISC  USB FRONT
*1
/iPod FRONT
*2
 VTUNER F
*3

BT AUDIO
*4
 AUXILIARY
*5
 TUNER
*1 Displayed only when no iPod/iPhone is connected. During USB
FRONT source, you can switch to USB REAR source by pressing
BAND/F/R.
*2 Displayed only when the iPod/iPhone is connected. During iPod
FRONT source, you can switch to iPod REAR source by pressing
BAND/F/R when an iPod/iPhone is connected to Rear USB
Connector.
*3 Displayed only when VTUNER is set to ON, refer to “Setting the
vTuner Source” on page 23. During VTUNER F source, you can
switch to VTUNER R source by pressing BAND/F/R.
*4 Displayed only when AUDIO is set to ON, refer to “Setting the
BLUETOOTH Connection (BT IN)” on page 24.
*5 Refer to “Using the Front AUX Input Terminal” on page 20.
Detaching and Attaching the Front Panel
1 Turn off the unit power.
2 Press e (Release) at the lower left side until the front
panel pops out.
3 Grasp the left side of the front panel and pull it out.
Notes
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
• When detaching the front panel, do not apply excessive force as it may
result in malfunction.
1 Insert the right side of the front panel into the main unit.
Align the groove on the front panel with the projections
on the main unit.
2 Push the left side of the front panel until it locks firmly into
the main unit.
Notes
• Before attaching the front panel, make sure that there is no dirt or dust
on the connector terminals and no foreign object between the front
panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
Initial System Start-Up
Be sure to press the RESET switch when using the unit for the first time,
after changing the car battery, etc.
1 Turn off the unit power.
2 Remove the detachable front panel.

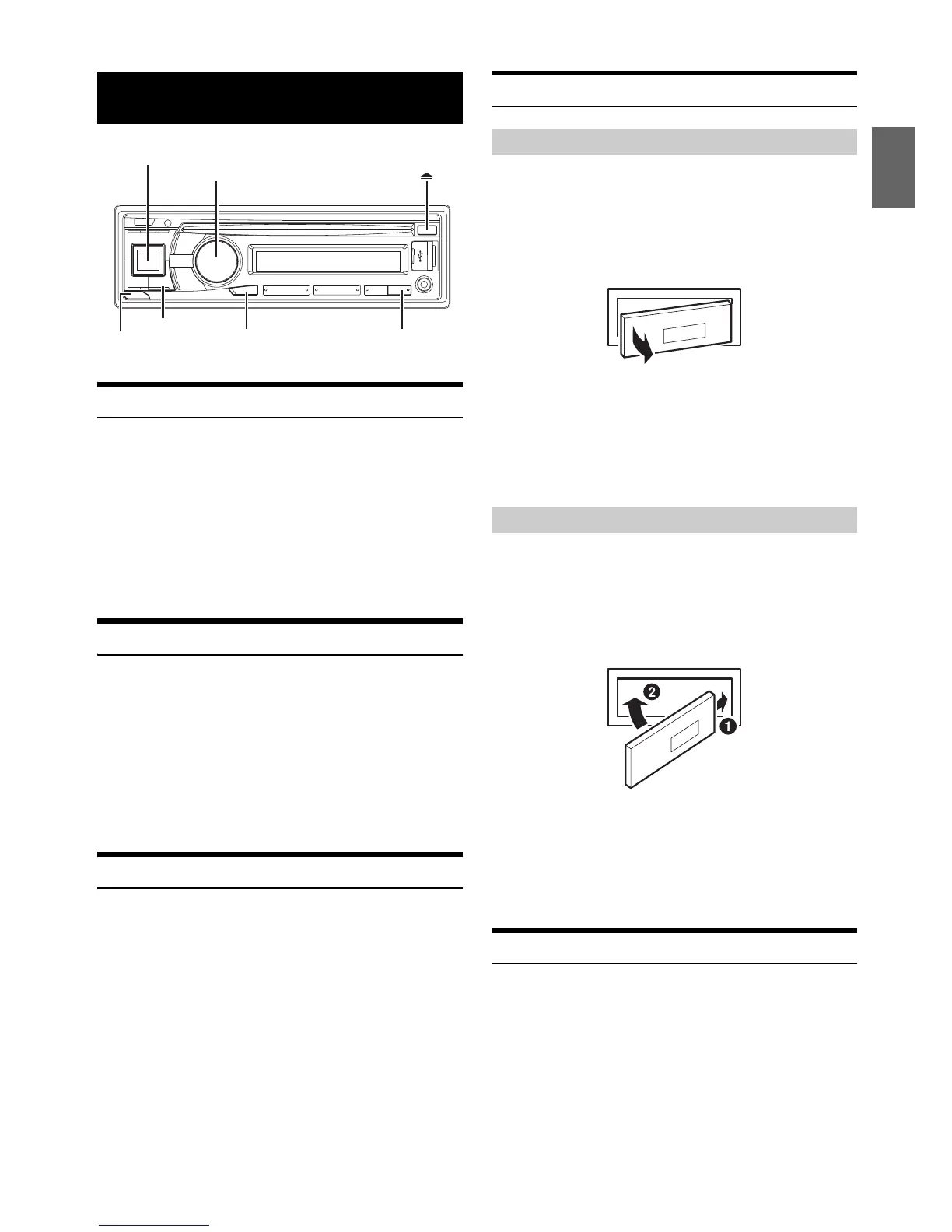

Getting Started
SOURCE/
BAND/F/R
e
FUNC./VIEW
6/DIMMER
Rotary encoder
Detaching
Attaching
