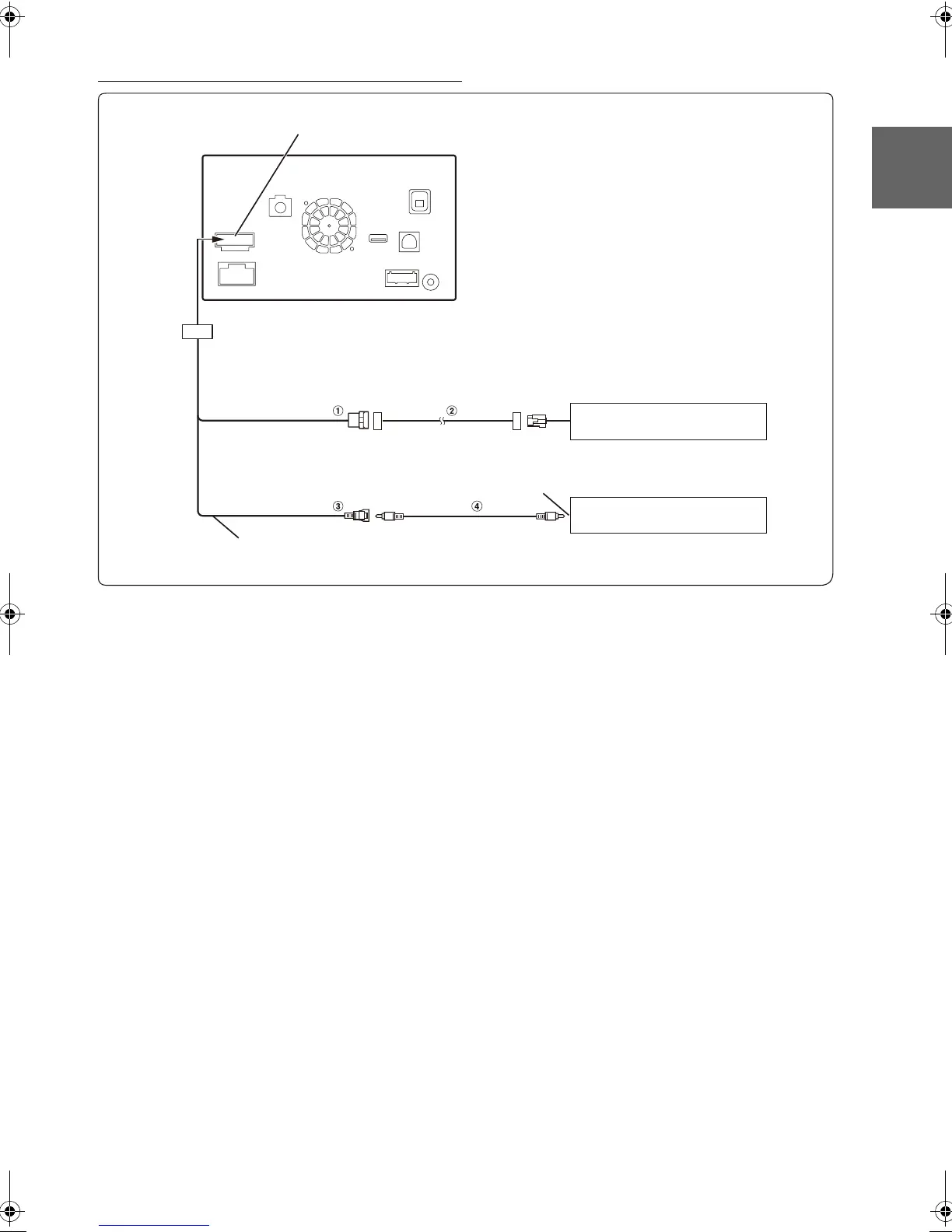

Connection of cameras (Direct camera and AUX camera)
1 Direct CAMERA Input Connector
2 Camera extension cable (Included with direct
rearview camera)
3 CAMERA Input RCA Connector
4 RCA Extension Cable (sold separately)
Camera/Remote Connector
CAMERA 1
CAMERA 2
Camera/Remote cable
Direct rearview camera (sold
separately)
Camera with RCA video output (sold
separately)
To Video Output terminal
HCE-C117D, etc.
