Alpine IVE-W530 - System Example

66-EN

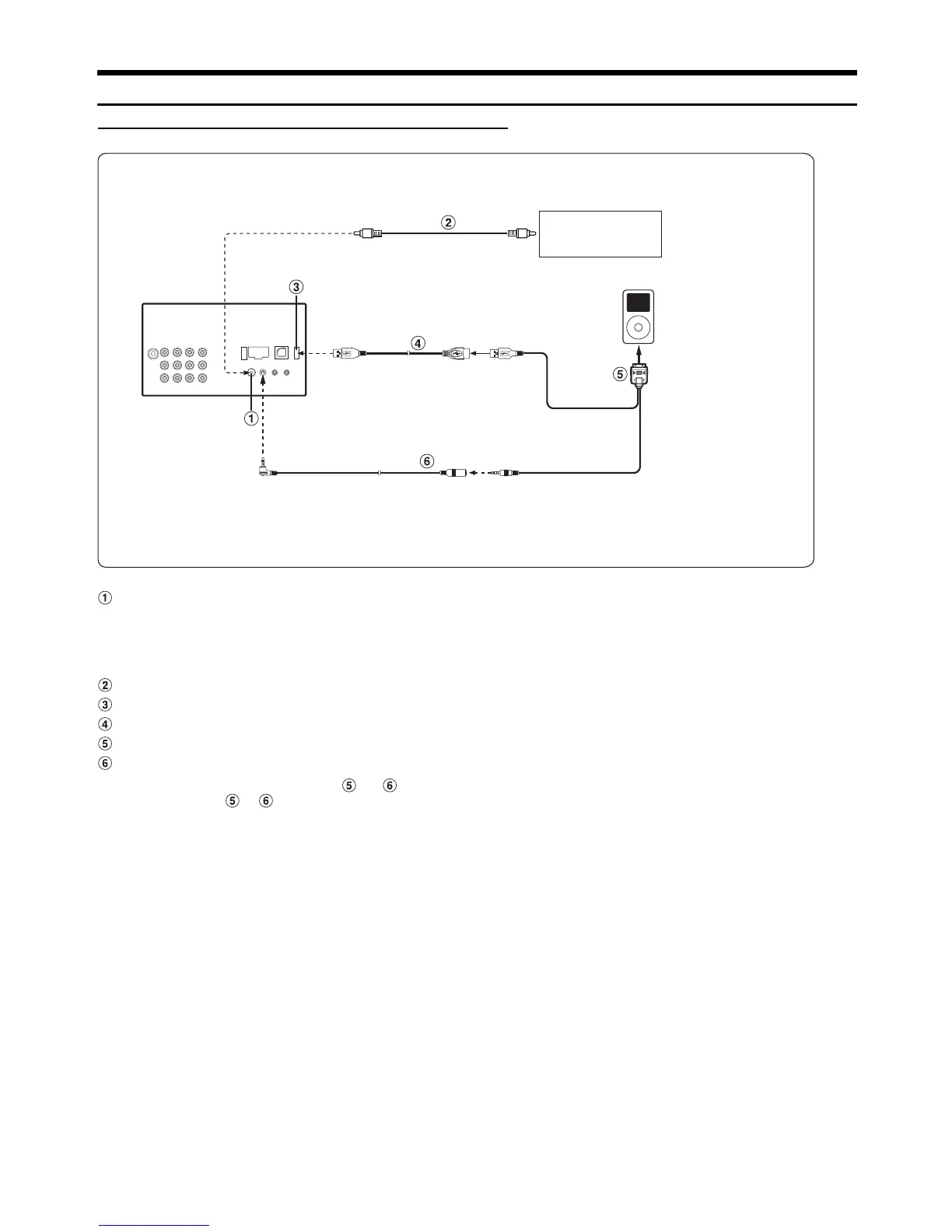

System Example
Connecting iPhone/Video compatible iPod and Back-up Camera
CAMERA Input Connector
Use when the optional rearview camera with RCA connector
is connected.
• Set “ON” in “Setting the Rear Camera Input” (page 36) when
connecting a rearview camera with RCA Output connector.
RCA Extension Cable (Sold Separately)
USB Connector
USB extension cable (Included)
*
USB 30P cable (Sold Separately)
*
AV extension cable (Sold Separately)
* The optional accessory KCU-461iV contains and , you cannot
individually purchase or .
iPhone/Video compatible
iPod (Sold Separately)
Rear camera
(Sold Separately)
To Video Output terminal
