106-EN

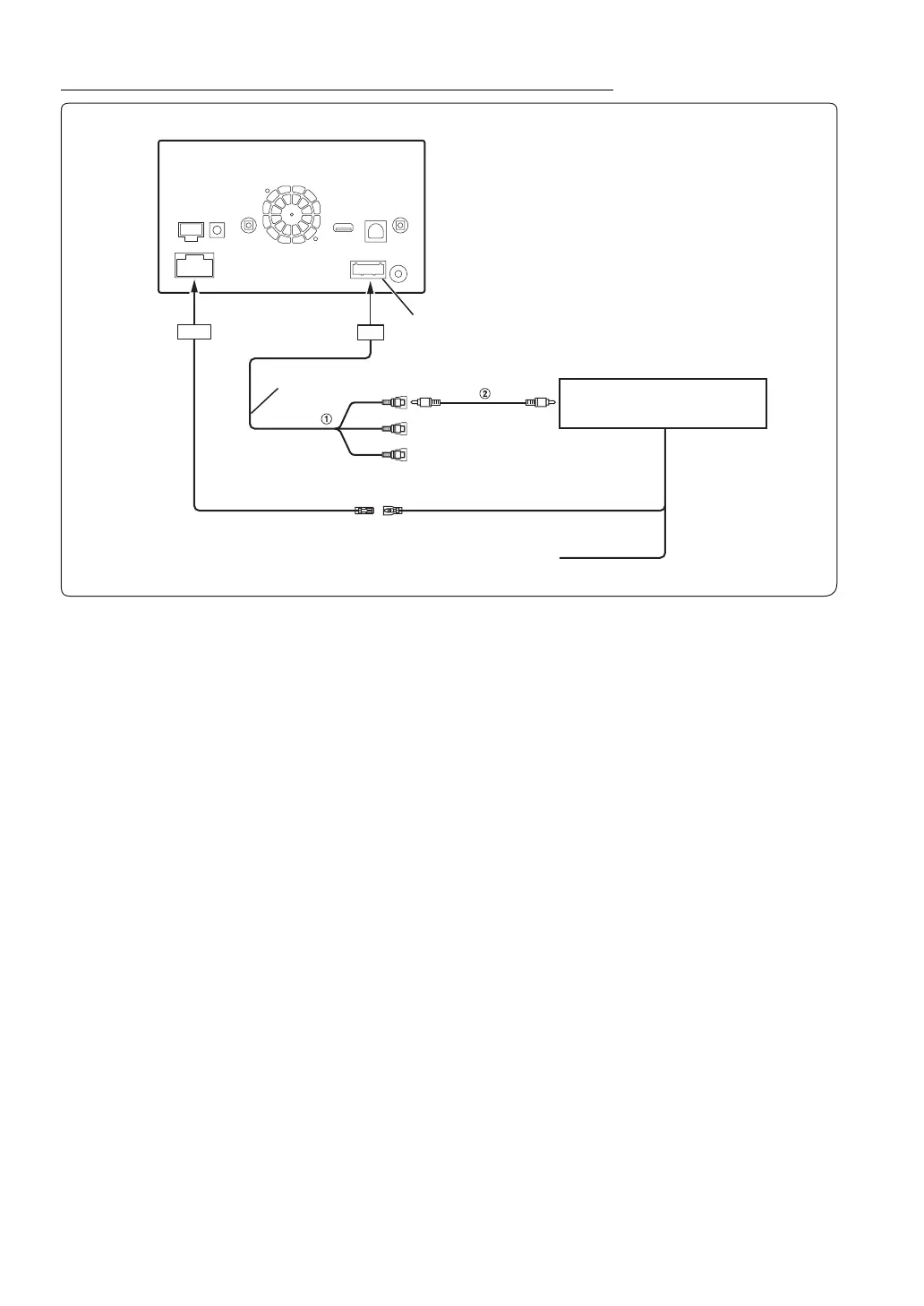

Connection of cameras (HCE-C212F + HCE-C210RD or HCE-C200F + HCE-C200R)
1 Video/Audio Input Connectors (AUX INPUT)
2 RCA Extension Cable (sold separately)
To Video Output Terminal
(Yellow)
Control Unit
(Red)
(White)
To plus side of the back lamp
signal lead of the car.
Camera Control Lead
AUX/PRE OUT Connector
AUX/PRE OUT Cable
REVERSE
(Orange/White) (Orange/Black)
