57-EN
Direct Camera Setting
[Direct Camera] is selected on the Camera setup menu in step 3.
Refer to “Camera Setup Operation” (page 56).
Setting item: Camera Select / Guide Adjustment*
1
Setting contents: Off (Initial setting) / Front / Rear*
2
*
1
If “Camera Select” is set to “Off”, this option is not available.
*
2
If “Camera Select” in AUX Camera Setting is set to “Rear,”
“Rear” cannot be set in Direct Camera Setting.
Switching video patterns for Rear camera & Front
camera
The video pattern can be changed when connected to HCE-C200R/
HCE-C200F/HCE-C210RD/HCE-C212F.
Setting item: Guide Adjustment
1
Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
2
Touch [Back], [Panorama], [Corner], or [Top].
The view will change to the selected view.
• [Back] will not appear for the Front camera.
3
Touch [] to return to the previous screen.
• For an explanation of video patterns, see the camera Owner's
Manual.

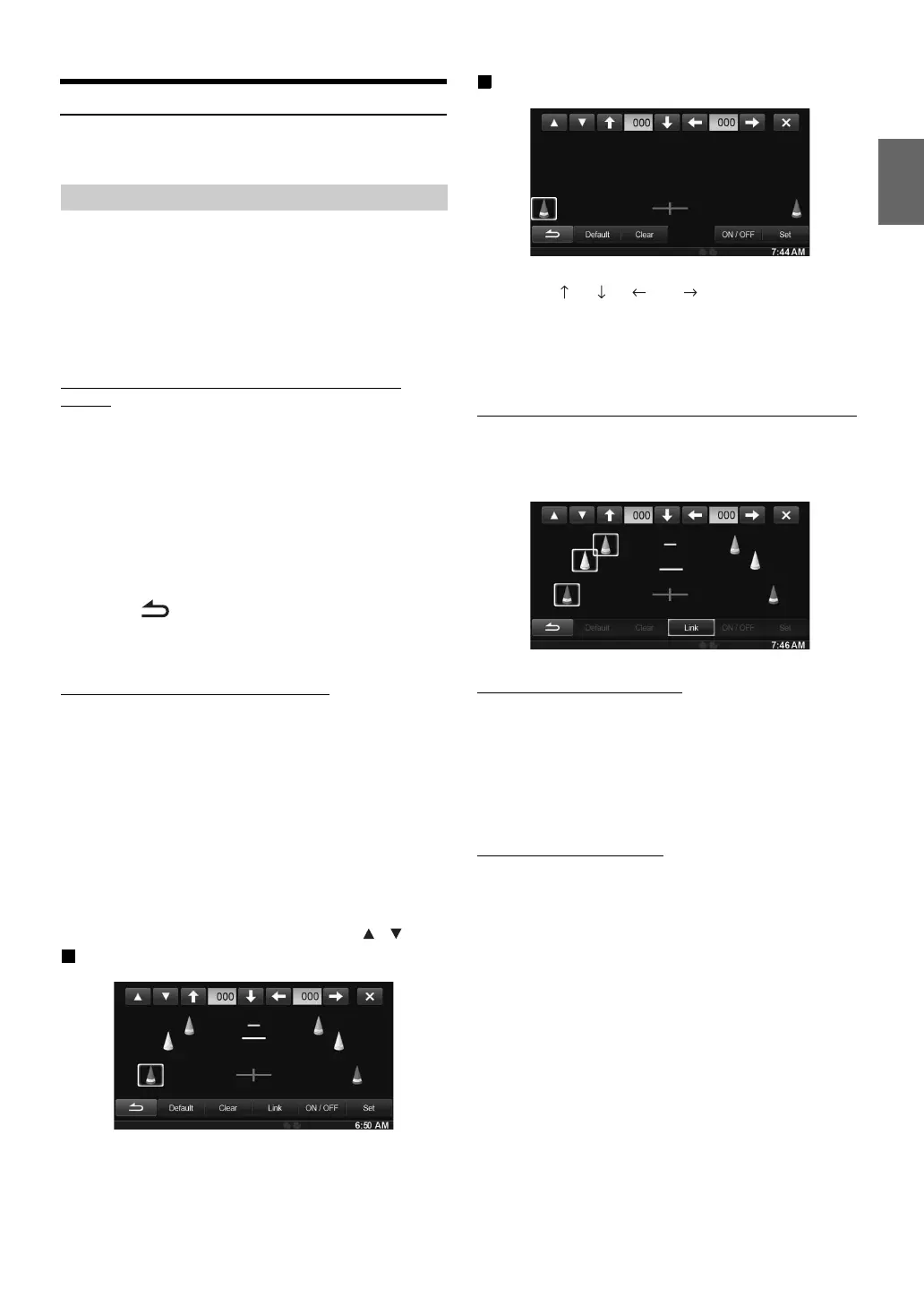

Adjusting the Rear/Front Camera Guide
If you select “Rear” or “Front,” you can adjust the camera guide
position.
Setting item: Guide Adjustment
1
Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
• If the video pattern is set to “Corner,” the camera guide will not
be displayed.
2
Touch [Adjust].
• If [Adjust] does not appear, proceed to step 3.
3
Touch the guide you intend to adjust.
Guide line can also be selected by touching [] [].
Display example for rear camera mode
Display example for front camera mode
4
Touch [], [], [] or [] to adjust the position
of the guide.
• Touching [Clear] clears adjustments and returns to the setting
before guide line alteration.
5
After the adjustment is completed, touch [Set].
Adjusting guides simultaneously (for Rear camera only)
1
Touch [Link].
The 3 vertical guides of the currently-selected guide link
together, allowing them to be adjusted simultaneously.
Turning guide display ON/OFF
Turning the selected guide off.
1
Touch [ON/OFF].
The currently selected guide will turn off.
2
To turn the guide on, touch [ON/OFF] again.
• Guides that are turned off are still adjustable.
Returning guides to default
1
Touch [Default].
A message window will appear.
2
Touch [OK].
Adjusted values will return to default settings.
Setting the Camera Input
Rear: Rear camera
Front: Front camera
To Next Page
