90-EN

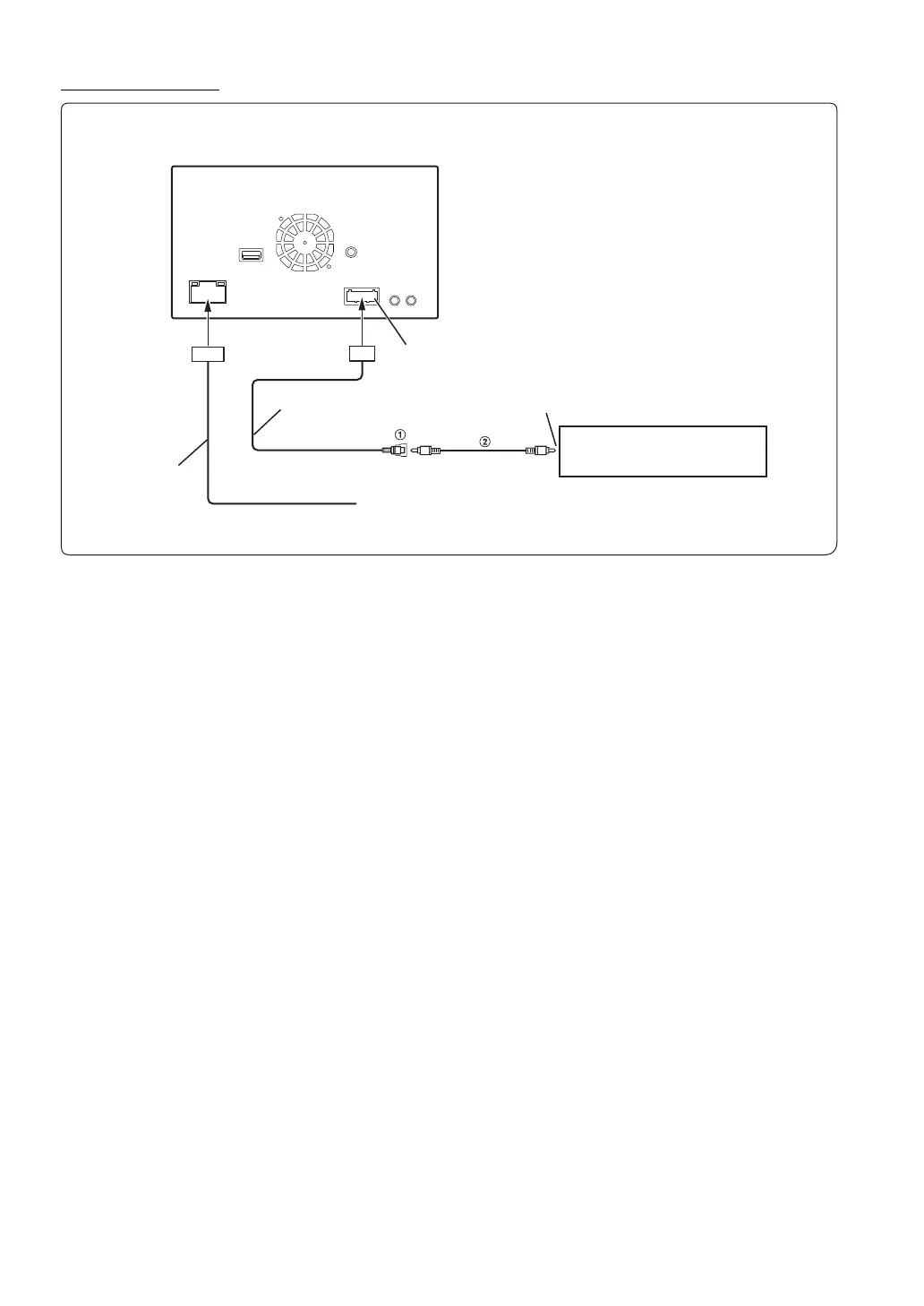

Connection of cameras
1 CAMERA Input RCA Connector (CAMERA)
2 RCA Extension Cable (sold separately)
Camera with RCA video output (sold
separately)
CAMERA/AUX/PRE OUT Connector
CAMERA/AUX/PRE OUT cable
(Yellow)
HCE-C105, etc.
To Video Output terminal
Power Supply Connector
(Orange/White)
Reverse Lead
Connect to the plus side of the car’s reverse lamp.
