Alpine iXA-W407BT - System Example Diagram; Ai-NET Audio System Configuration Example

68-EN
System Example
Connect the Ai-NET compatible audio processor (Fiber optic digital compatible), Navigation system, DVD player and
changer.
Please observe the following when using Fiber Optic Cable (Optical Digital Cable).
• Do not coil the Fiber Optic Cable smaller than a 30 mm radius.
• Do not place anything on top of the Fiber Optic Cable.
• Be careful not to bend the Fiber Optic Cable at a sharp angle.

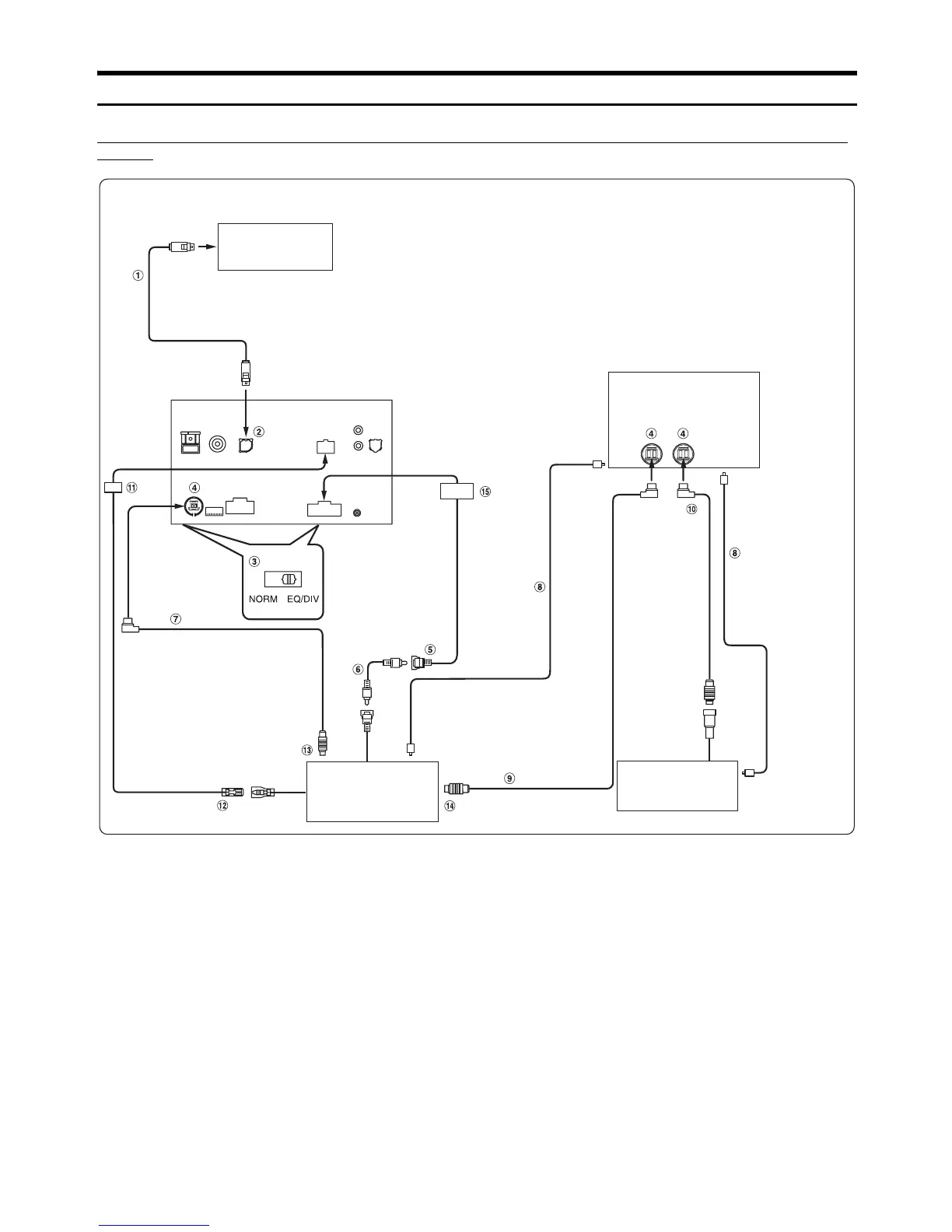

Navigation system
(Sold Separately)
NVE-N099P/PMD-B200P
Audio Processor (Ai-NET)
(Fiber Optic Digital
compatible) (Sold
Separately)
Fiber optic digital
Input terminal (for
DVD Player)
Ai-NET
cable
Fiber optic digital
Input terminal (for
Changer)
*Fiber optic cable
Ai-NET
cable
CD Changer
(Ai-NET)
(Sold Separately)
*Only connect fiber optic digital compatible CD Changer
DVD Video Player
(Ai-NET)
(DVA-5210 etc.)
(Sold Separately)
Fiber optic
cable
REMOTE IN
REMOTE OUT
(White/Brown)
(White/Brown)
(Yellow)
Ai-NET cable
