14-EN

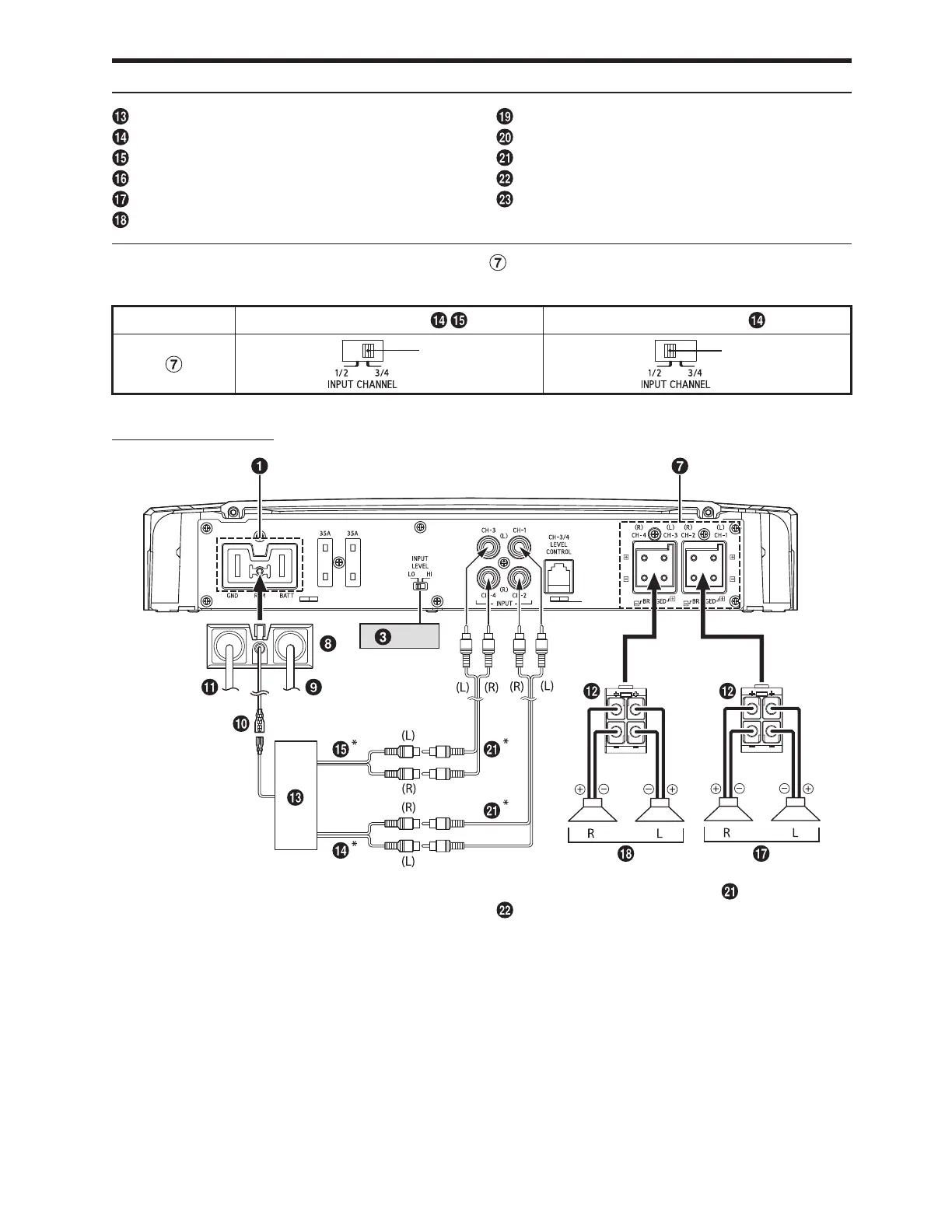

Basic Connection Diagram for X-A70F
Head Unit, etc.
Front Output
Rear Output
Subwoofer Output
Front Speakers
Rear Speaker
Subwoofer
Dual Voice Coil Subwoofer
RCA Extension Cable (Sold Separately)
Speaker-RCA Conversion Cable (Sold Separately)
Y-Adapter (Sold Separately)
For X-A70F, change the Input Channel Selector Switch ( ) setting according to the number of channels of
the speaker input.
4-Channel Input: 2-Channel Input:
[3/4]
[1/2]
4 Speaker System
[LO]
* If the connected head unit does not have a Speaker Output and RCA Extension Cables ( ) cannot be
used, you can use the Speaker-RCA Conversion Cable (
) (sold separately). For details on how to make a
connection, see “About Connection to the Speaker Input Level System” (page 18).
To Next Page
