16-EN

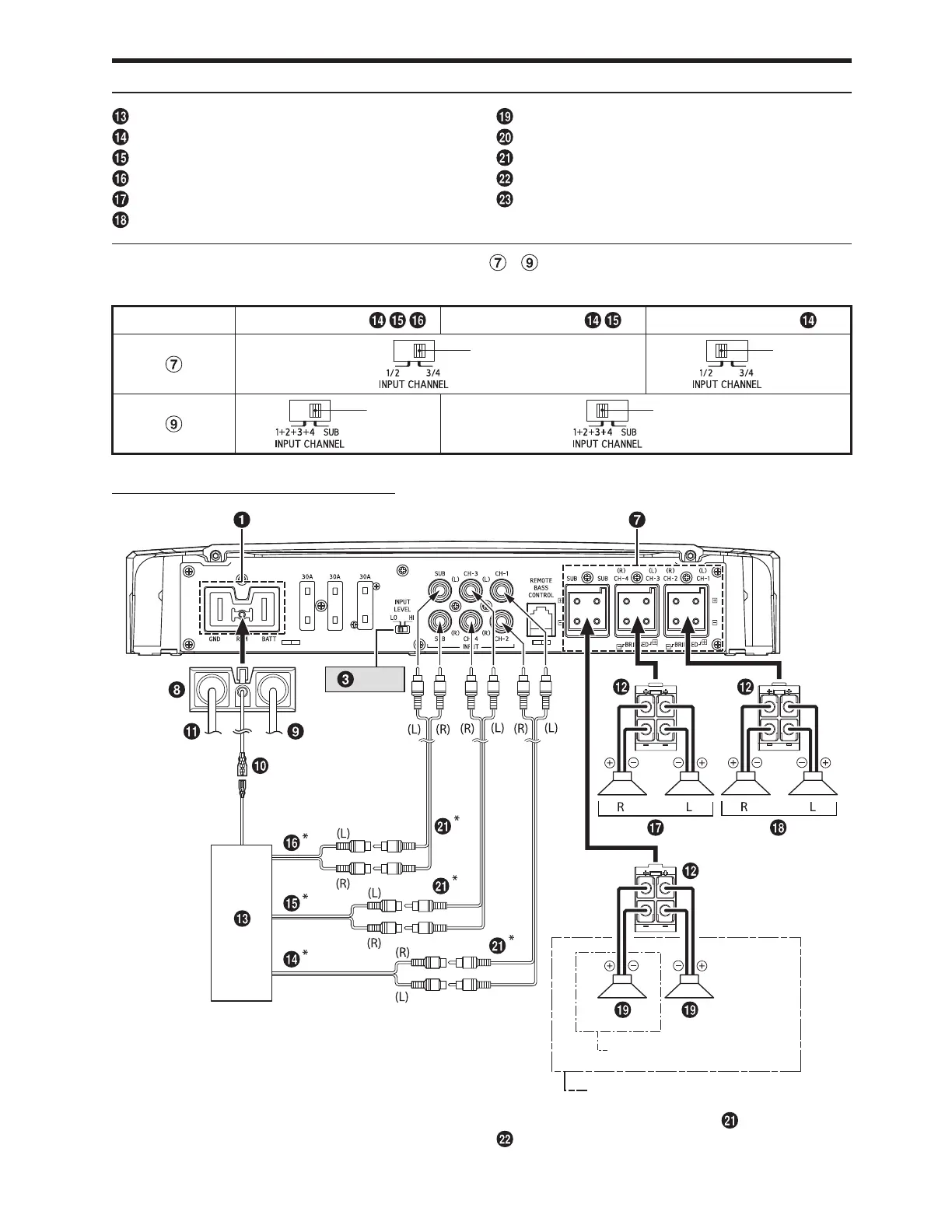

Basic Connection Diagram for X-A90V
Head Unit, etc.
Front Output
Rear Output
Subwoofer Output
Front Speakers
Rear Speaker
Subwoofer
Dual Voice Coil Subwoofer
RCA Extension Cable (Sold Separately)
Speaker-RCA Conversion Cable (Sold Separately)
Y-Adapter (Sold Separately)
For X-A70F, change the Input Channel Selector Switch ( )/( ) setting according to the number of
channels of the speaker input.
5-Channel Input: 4-Channel Input: 2-Channel Input:
[3/4] [1/2]
[SUB]
[1+2+3+4]
4 Speaker + Subwoofer System
1 Subwoofer System
[LO]
2 Subwoofer System (MONO)
* If the connected head unit does not have a Speaker Output and RCA Extension Cables ( ) cannot be
used, you can use the Speaker-RCA Conversion Cable (
) (sold separately). For details on how to make a
connection, see “About Connection to the Speaker Input Level System” (page 18).
To Next Page
