2
3
1
5
50 mm
6
4
800 mm
300 mm
300 mm
150 mm
800 mm
50 mm
(*)
6490009ENLZ / 6790009ENLZ
►
6
◄
Al

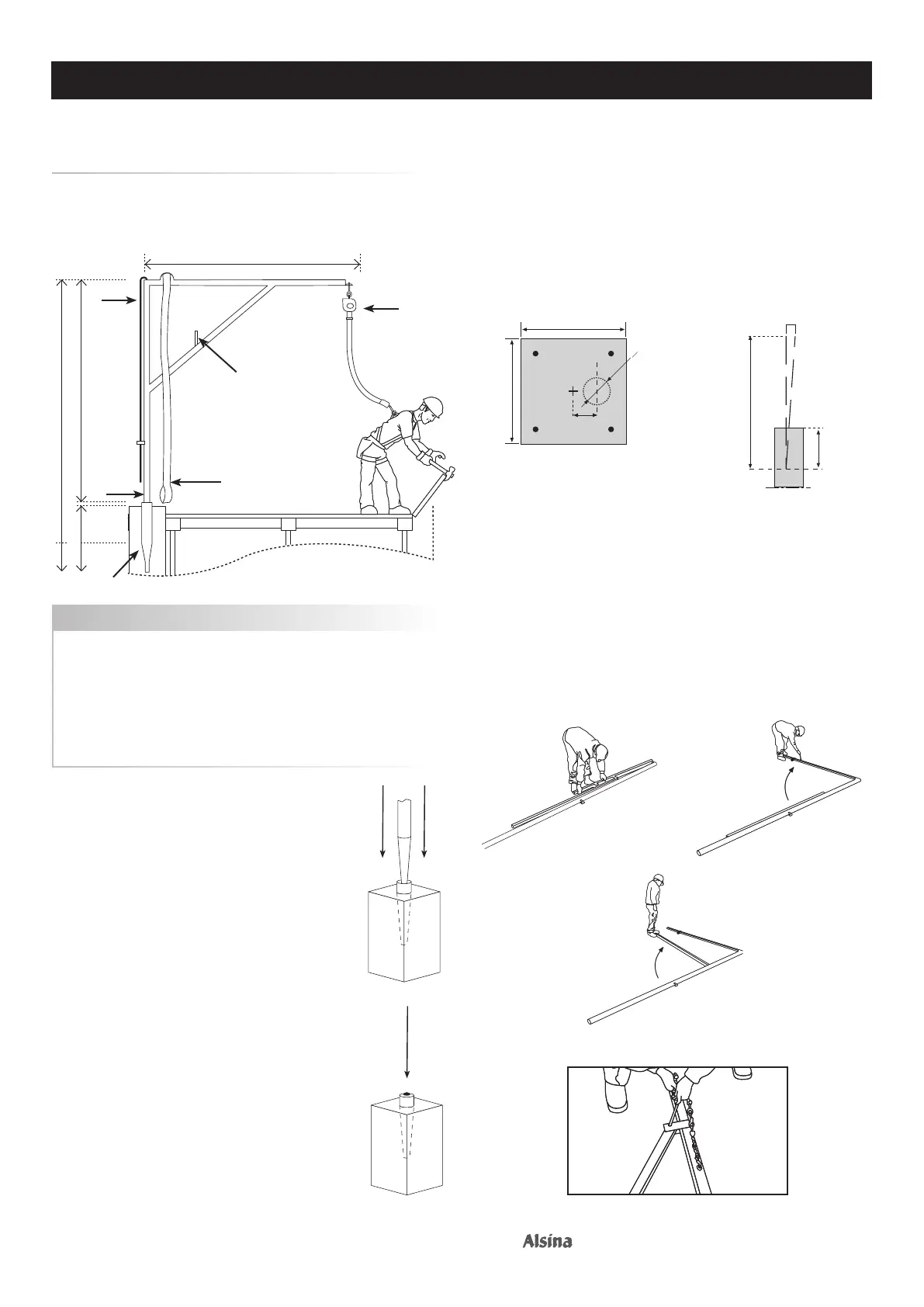

sipercha with housing tube Alsipercha System
LEGEND
1. Hook (accessory for changing the anchor point)
2. Alsipercha Body (the main body that turns through 360º and allows
the worker to work freely)
3. Pivot (used to anchor the hook)
4. Sling (used to move the assembly with a crane)
5. Retractable device
6. Housing tube
Assembly process
Step 1/4_System components
1.- Immediately after pouring the concrete columns,
place the housing tube in the center of the
latter, protruding 50 mm. This tube will later
accommodate the Alispercha column.
Detail of the placement of the
Fall Arrest System in the
housing tube
2.- Use the leveller to make sure that the tube is
vertical and does not rise up. The column is
strengthened by the housing tube.
Technical details for arranging the housing tube.
Housing tube tolerances.
(*) This tolerance will vary depending on the column section.
If using the Alsipercha system in columns with a section smaller
than 30 cm, cracks may appear in the concrete. In this case,
consult the structure client.
Step 2/4_System assembly
1.- Open out the Alsipercha Body.
1) Tolerance in diversion, with
respect to the centre of the
column
2) Tolerance in vertical
diversion
2.- Use the pin to fi x the Alsipercha Body.
Leveller detail.
2500 mm
4300 mm
3450 mm
Ø 76.1 mm
4300 mm
