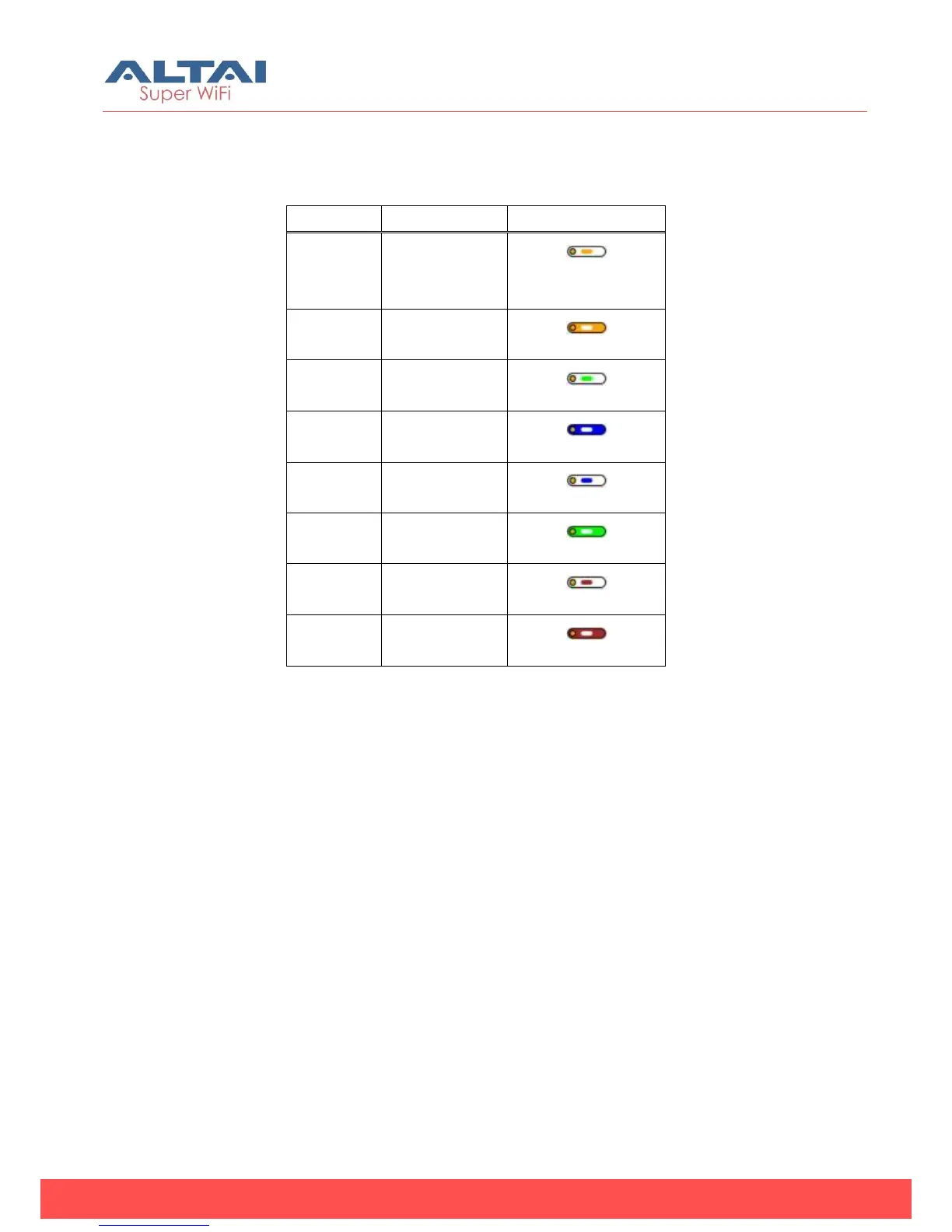

The assignments of wire pairs to plug and jack pins are as follows :
Pin
Pair
wire Color
1
2
white /
orange
2
2
orange
3
3
white / green
4
1
blue
5
1
white / blue
6
3
green
7
4
white / brown
8
4
brown
