Quick Setup Guide

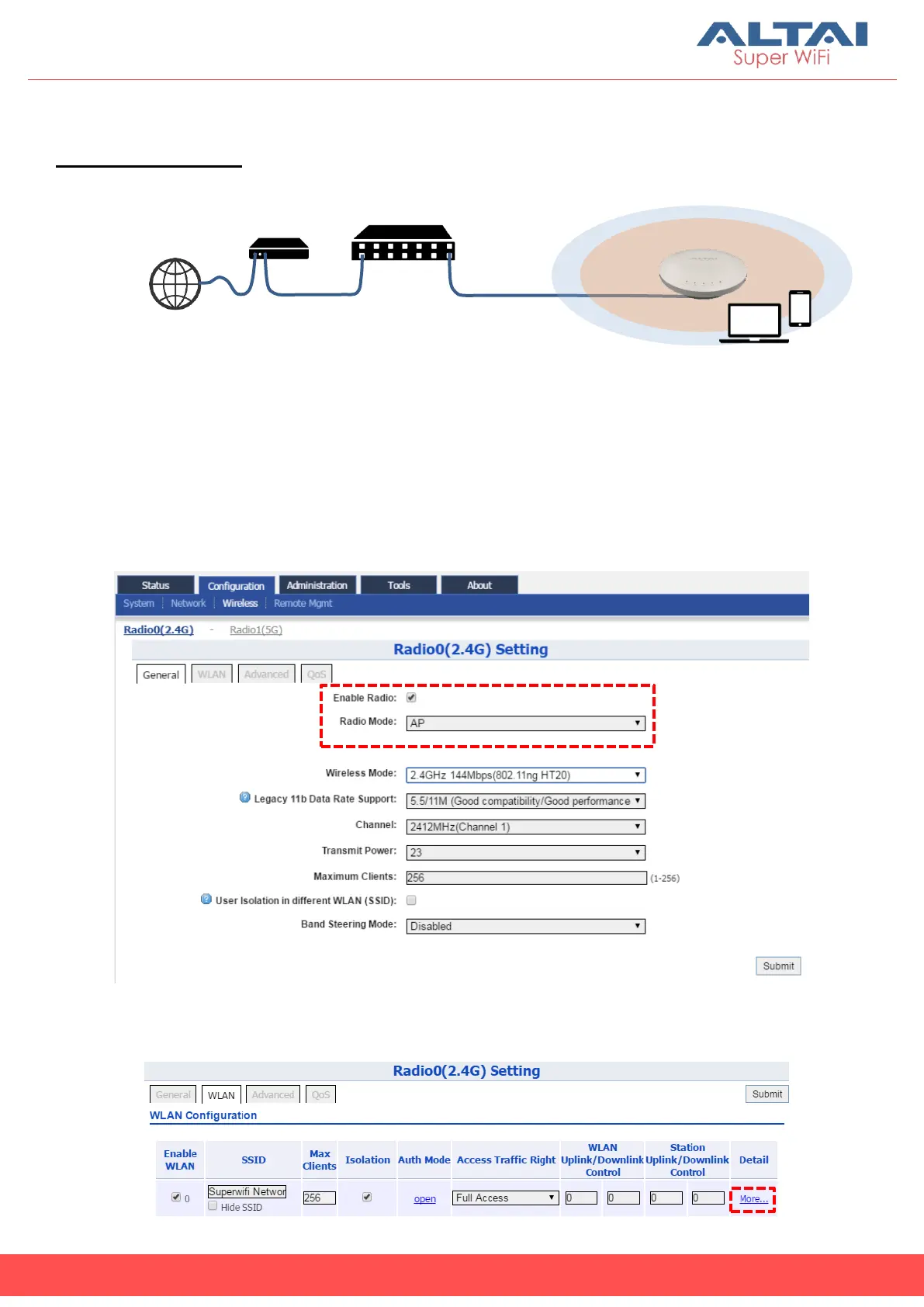

3. Configure AP Mode (2.4G/5G)
Network Scenario
1. Go to Configuration > Wireless > Radio0(2.4G)/Radio1(5G) > General.
Below screenshots show an example for 2.4G radio configuration only.
Same procedures can be applied to 5G radio configuration.
2. Make sure the box of Enable Radio is checked. Select AP mode for the
field of Radio Mode. Then click Submit.
3. Click WLAN and click More… in Detail of WLAN 0 to go to another page
for SSID and security configuration.
Internet
ISP
Modem
A2c (AP Mode)
Ethernet
Cable
2.4G + 5G
Coverage
Gateway/Router
Ethernet
Cable
Modem
Cable
