ALTAI C2s - Hardware Overview

3
Altai Technologies Ltd. All rights reserved
Quick Setup Guide
Reset Button
ETH0/PoE IN
ETH1
0s
2-3s
5-8s
Power LED
Reboot
Factory Reset

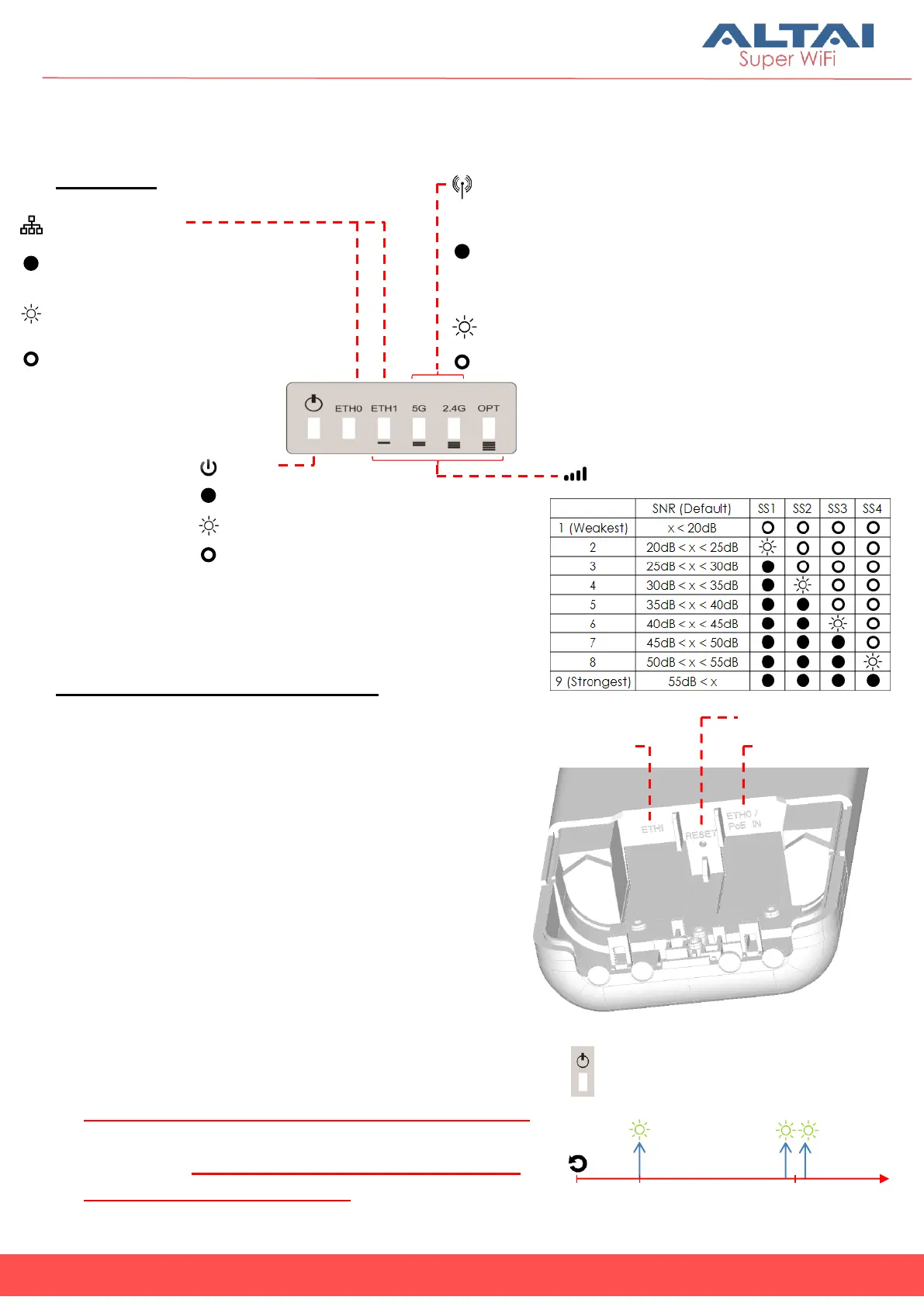

Hardware Overview
LED Panel
Ethernet Ports and Reset Button
ETH0/PoE IN:
It is used to connect to power source (see
the Power Options in the following section)
and provides 10/100/1000 Mbps network
interface for LAN connection.
ETH1:
It provides 10/100/1000 Mbps network
interface for LAN connection with
peripherals.
Reset Button:
It serves two functions for C2s operation:
 Reboot: Press and hold the Reset Button for
2-3 seconds until the Power LED blink once.
 Factory Reset: Press and hold the Reset
Button for 5-8 seconds until the Power LED
blink twice consecutively.
Power
Solid Yellow: Power on
Off: No Power
Received Signal Strength
(Station/Repeater/Bridge Mode)
2.4G/5G Radio WiFi
(AP/STA/Repeater/Bridge Mode)
Solid Green:
1. AP Mode on but with no Clients Associated
2. STA/Repeater Mode on but not connected to AP
3. Bridge Mode on but not connected to Remote Peer
Flashing Green: AP Mode with at least one Client
Associated for Data Transmitting/Receiving
Off: Radio Disabled
LAN (Ethernet 0/1)
Solid Blue/Green: LAN Connected
(Blue for 1Gbps; Green for 100/10Mbps)
Flashing Blue/Green: Data
Transmitting/Receiving
Off: LAN Disconnected
Flashing Yellow: AP Booting Up
