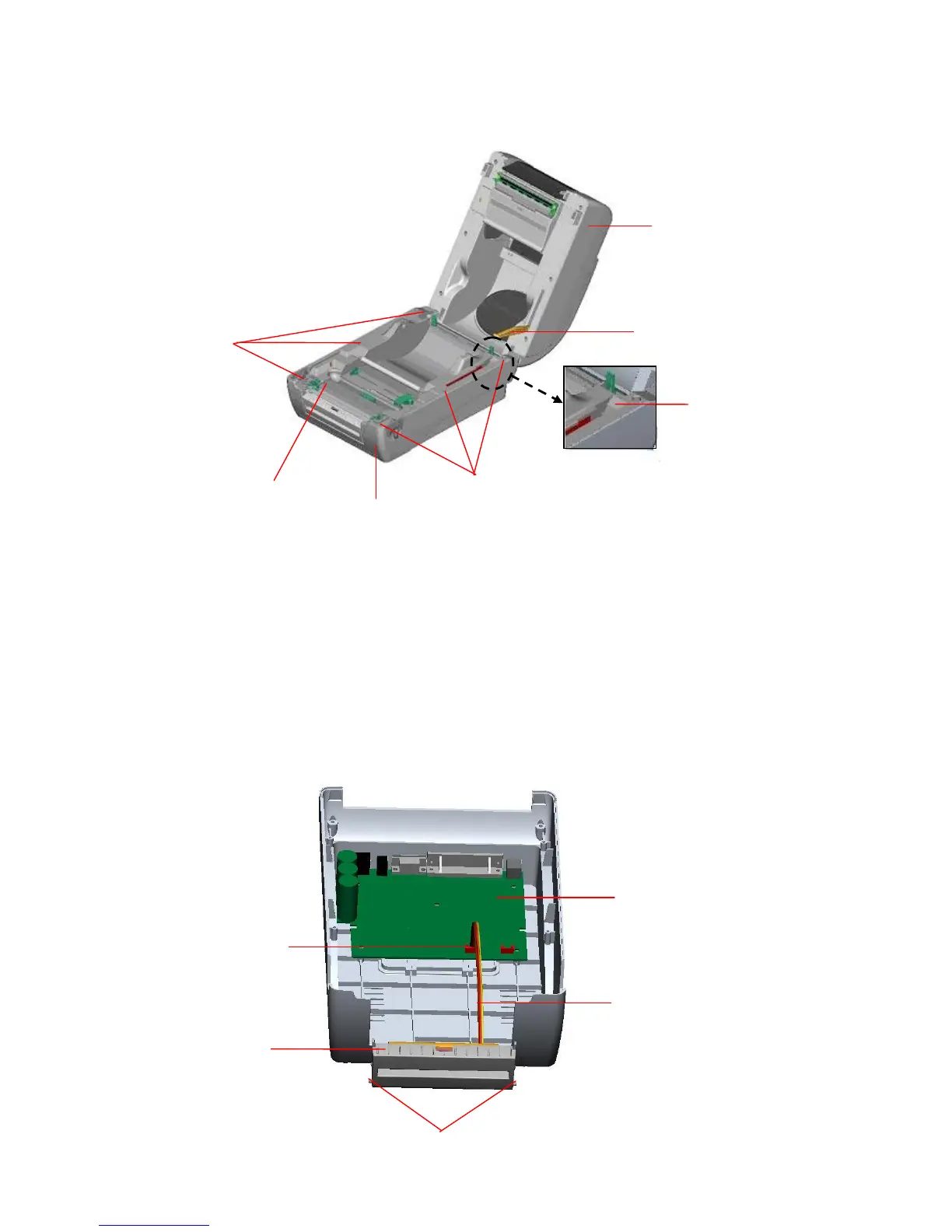

3. Use a screwdriver to screw off 6 screws on the lower inner cover.
Fig. 13 Remove 6 screws from lower inner cover
4. Upside down the printer. Remove two screws at the hinge and remove one screw at
memory card cover.
5. Hold the lower cover to lift up the top cover open levers to separate the lower inner
cover and the lower cover.
6. Arrange the cable through the bezel. Connect the peel-off panel cable to the 5-pin
socket on printer PCB.
