V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
29

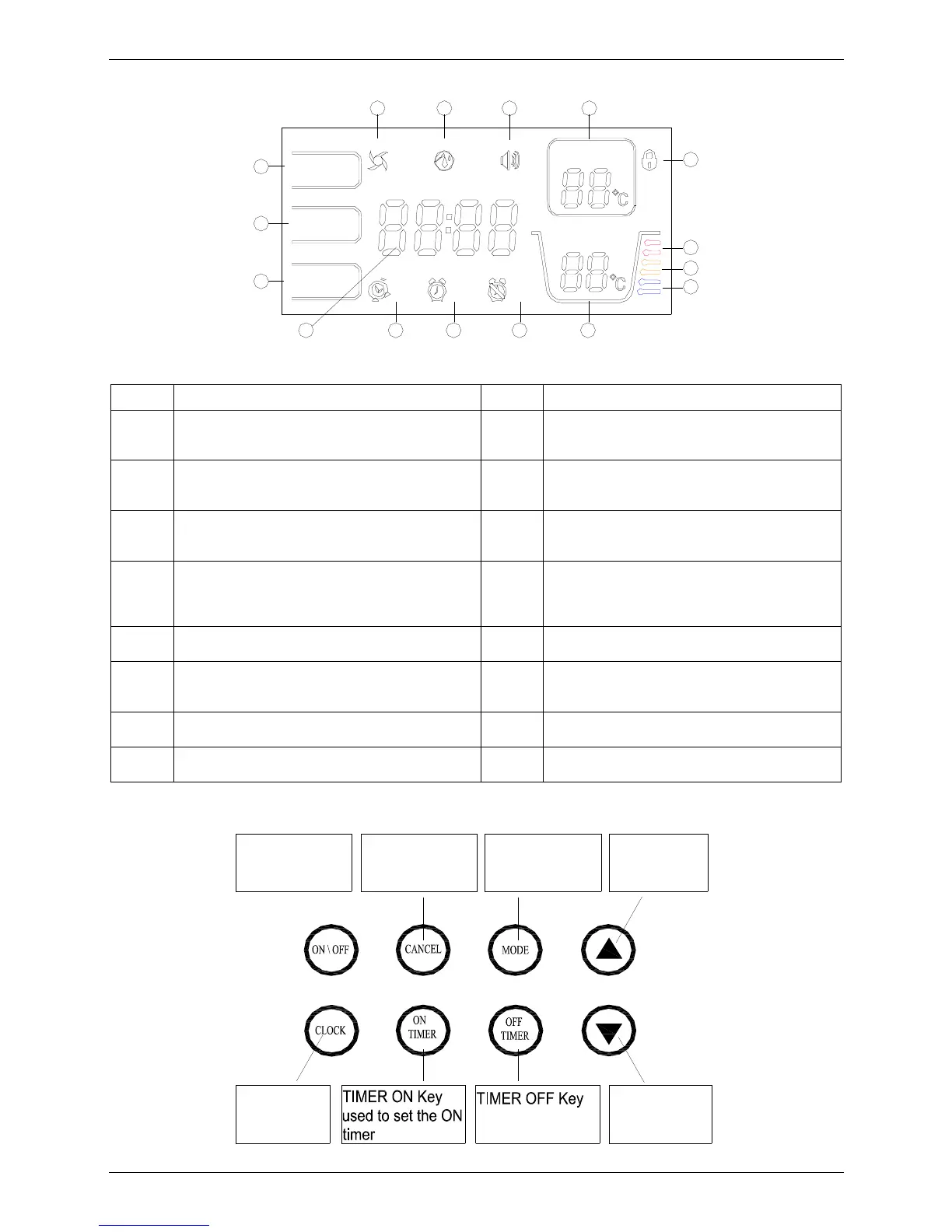

2.2.2 Display Explanation
TEMP-SET
16
15
14
13 12 11 10 9
8
7
6
5
4321
HYBRID MODE
OUTLET TEMP
ECONOMY MODE
HIGH TEMP FILL WATER
ALARM
LOCK
TIME OFF
TIME ON
TIMER
CONFLICT
E-HEATER MODE
Number Explanation Number Explanation
1
HIGH TEMP indicator. When the setting temp.
exceeds 50℃, it lights up to remind you that the
outlet temp. is too high for direct spray.
9
OUTLET TEMP indicator. It displays water
temp. of the upper part of the tank, which can
be used. It always lights.
2
FILL WATER indicator. When the power supply is
turned on, it lights up to remind you to re-affuse
water.
10
TIMER CONFLICT indicator. When the temp
you set through Wired Controller conflicts with
that through User Interface, it lights up.
3
ALARM indicator: It will flashing at the
malfunction or protection time.
11
TIME OFF indicator: It will light up when timing
off mode is set, blanks when screen
protection.et, blanks when screen protection.
4
TEMP-SET indicator: Show the setting
temperature and blank when screen protection.
Codes are show at the
malfunction or protection time
12
TIME ON indicator: It will light up when timing
on mode is set, blanks when screen
protection.et, blanks when screen protection.
5
LOCK indicator. When the UI is locked, it
always lights.
13
CLOCK indicator. It displays present time, it will
blanks when screen protection
6
Water temp. indicator. When the actual water
temp. exceeds 60℃, it lights up.
14
E-HEATER MODE indicator. When user sets
the
E-heating Mode, it lights up.
7
Water temp. indicator. When the actual water
temp.exceeds 50℃, it lights up.
15
HYBRID MODE indicator. When user sets the
Hybrid Mode, it lights up.
8
Water temp. indicator. When the actual water
temp. exceeds 40℃ it lights up.
16
ECONOMY MODE indicator. When user set the
Economy Mode, it lights up.
2.2.3 Operation
OFF timer
used to set the
DOWN ke
y,
used to abate
time or temp.
UP key,
used to add
time or temp.
MODE ke
y,
used to set
di
fferent modes
CANCE
L key,
used to canel
timer and lock
CLOCK ke
y,
used to set
time.
ON\OFF ke
y,
used to turn the
unit on or o
ff
