10

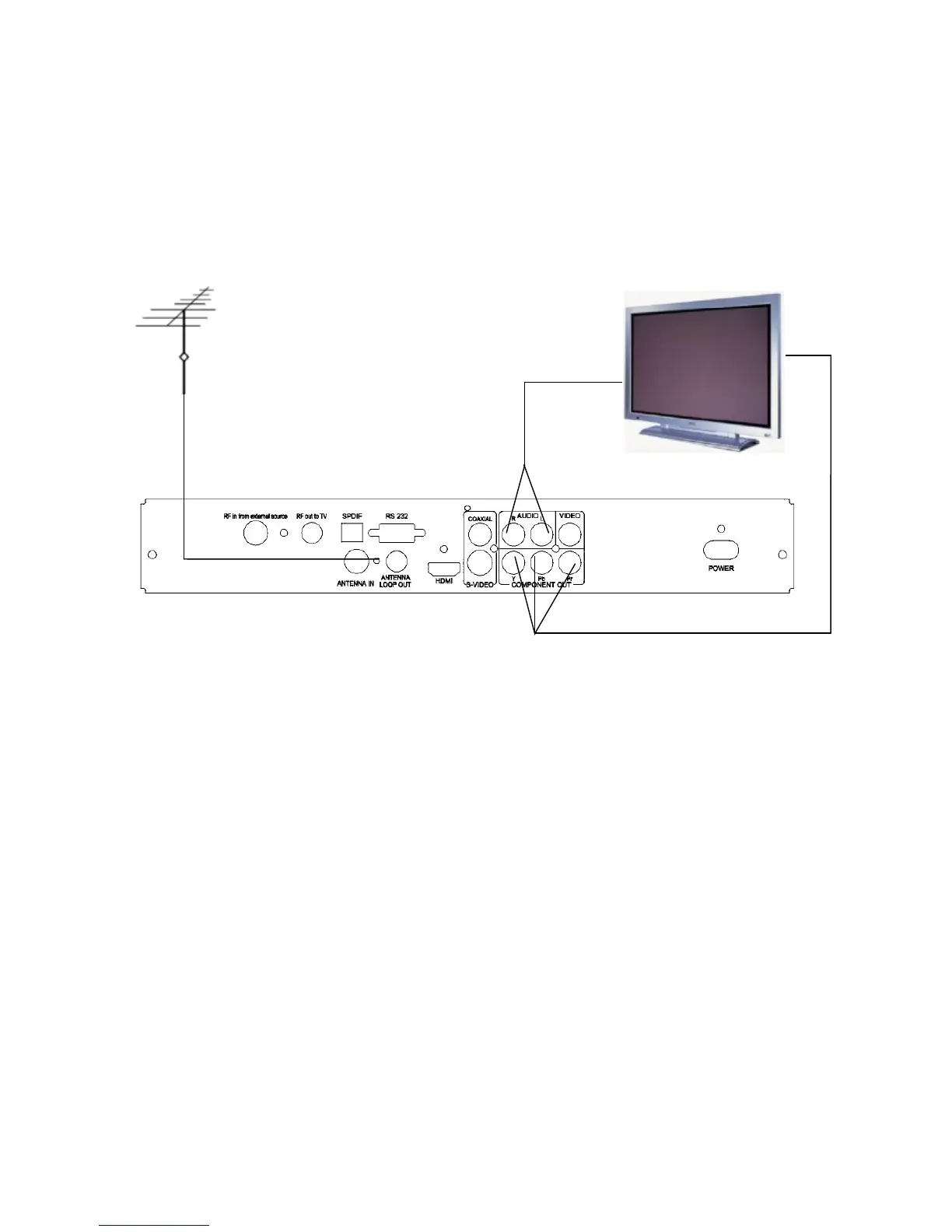

2. BASIC SET UP - COMPONENT VIDEO (red, blue, green)
For a basic component connection, use the Red Blue Green video and the
Red White audio connectors on the back of the receiver. The RCA leads
included with your receiver can assist.
All video outputs are active simultaneously.
2.1. Prepare your equipment
Ensure that the power leads to both the TV set and the Set Top Box are
unplugged whilst making AV connections.
2.2. Connecting Video and Audio
Video a) Connect one end of a 3 wire RCA lead to the Red, Green and Blue
Y, Pb, Pr RCA output connectors on the rear of the set top box.
b) Connect the other end of this cable to the corresponding RCA video
input connectors on your television or monitor.
Audio. c) Connect a 2 wire RCA lead to the Red and White AUDIO L&R
output connectors on the rear of the set top box. d) Connect the other end of
the cable to the corresponding audio input connectors on your TV set.
2.3. Connect the antenna…
To the “ANTENNA IN” connection on the back of your receiver.
2.4. Mains Power
Turn on your set top at the mains power & you are ready to scan.
