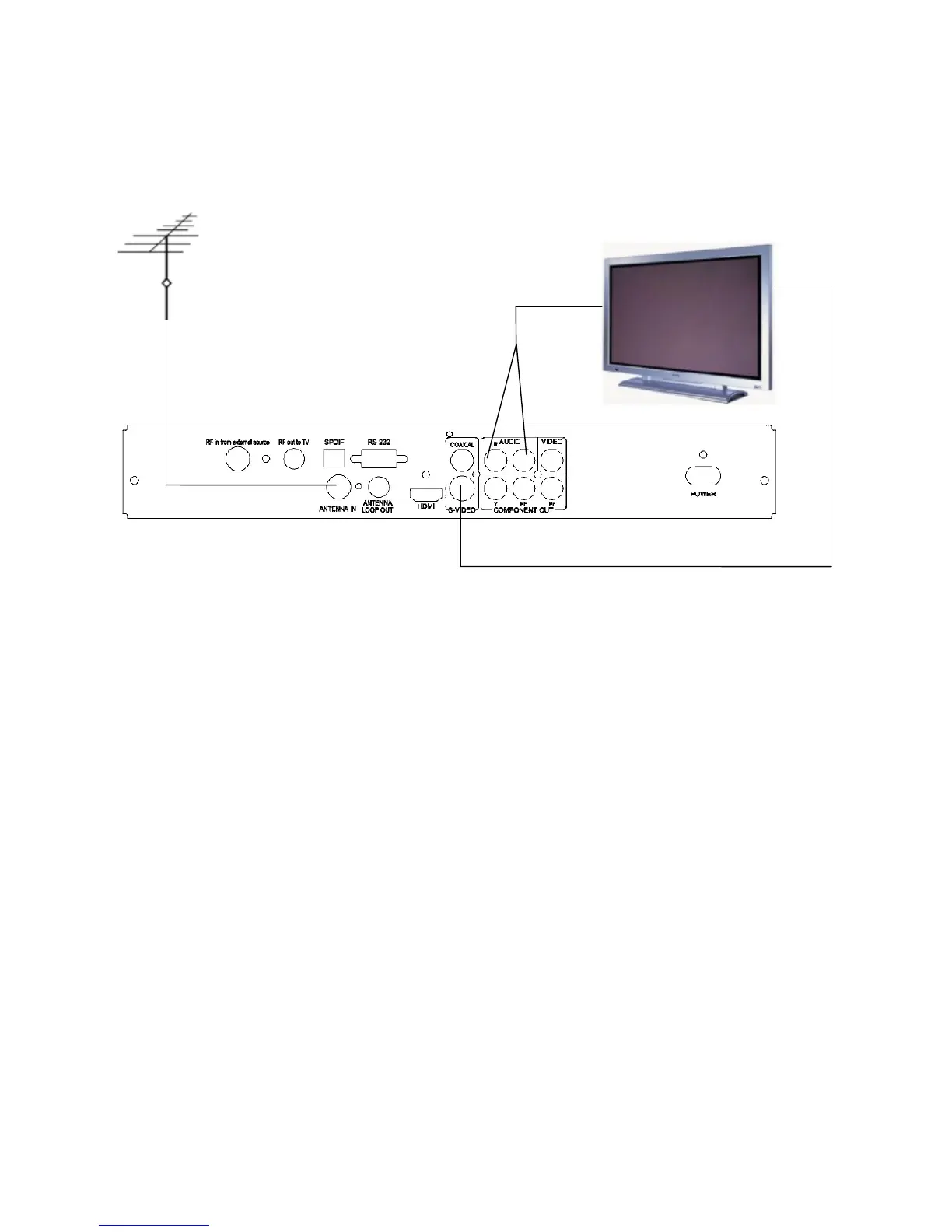

5. BASIC SET UP S-VIDEO
Uses the single S-VIDEO connector for S-VIDEO with the Red and White
RCA AUDIO R & L for audio. All video outputs are active.
5. 1Prepare your equipment
Ensure that the power leads to both the TV set and the Set Top Box are
unplugged whilst making AV connections.
5.2. Connecting Video and Audio
Video
Connect the S-VIDEO output from your receiver to the S-VIDEO input of
the TV
Audio
a) Connect the Red and White AUDIO L&R output from your receiver to
2 x RCA leads connect the other end of each RCA lead to the
corresponding Audio input connectors on your TV set.
5.3. Connect the antenna…
To the “ANTENNA IN” connection on the rear of your receiver.
5.4. Mains Power- Turn all your devices at the mains power & you are
ready to scan.
