12
Make sure that your TV has an YPbPr input.
Be sure the using amplifier has a SPIDF fiber input.
Ensure that the power leads to the TV, the Set Top Box and the amplifier
are unplugged before you commence the set up procedure.

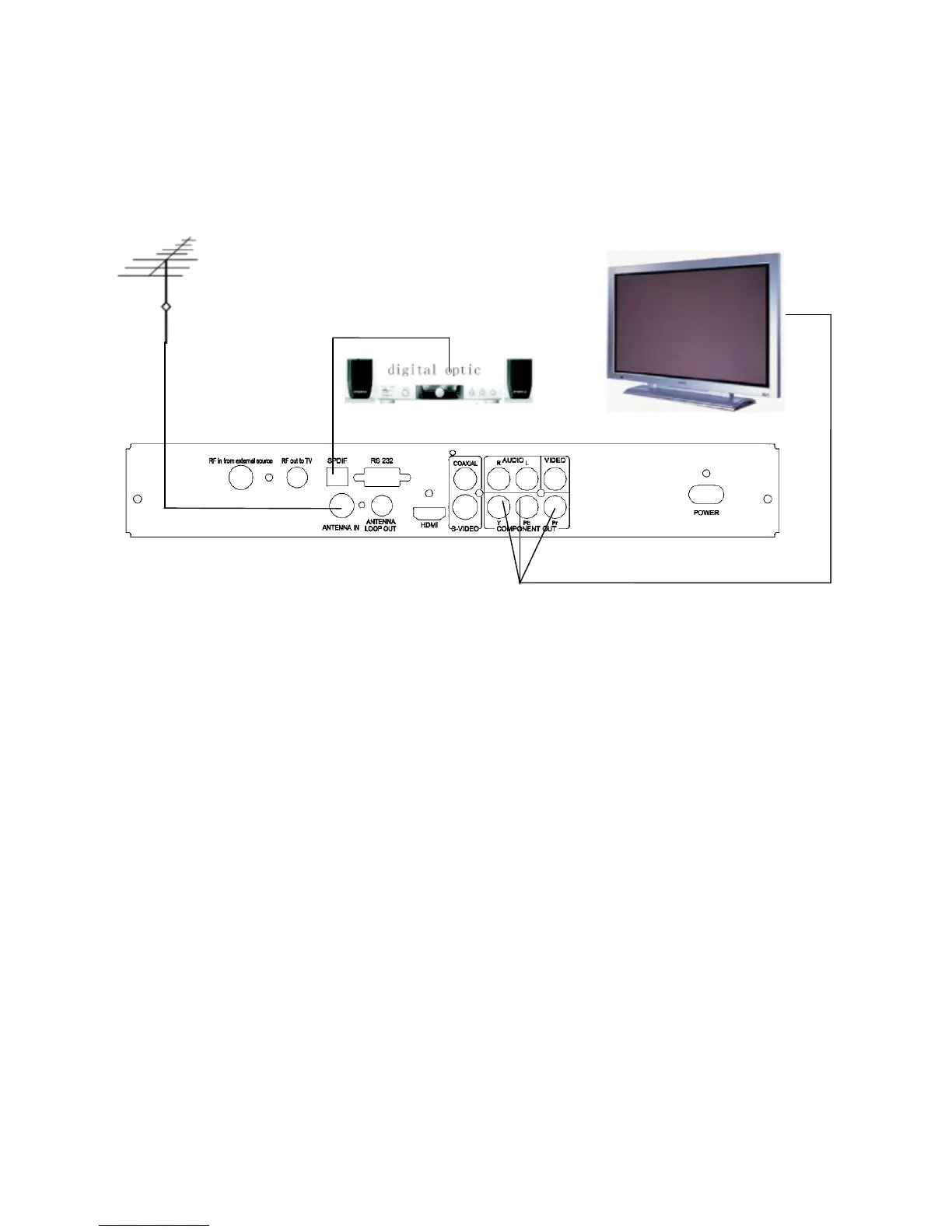

4.2 Connecting Video and Audio
Video
Connect the YPbPr cords from the YPbPr output of the Set Top Box to the
YPbPr input of the TV.
Audio
a) Connect the fiber optic cable to the SPDIF connector on the rear of the set
top box.
b) Connect the other end of the fiber cable to the SPDIF input on an
Amplifier.
4.3 Connect the antenna
Connect the antenna lead to the ANTENNA IN connection on the rear of the
Set Top Box.
4.4 Connect the power
4.4.1 Plug the power lead of the receiver into the mains.
4.4.2 Connect the power to your monitor.
4.4.3 Link the power to the amplifier; you are now ready to get started.
