Alto-Shaam 1000-UP

38 MN-29423 • Rev 6 • 02/18 • S-Series Hot Food Holding Cabinets
Service

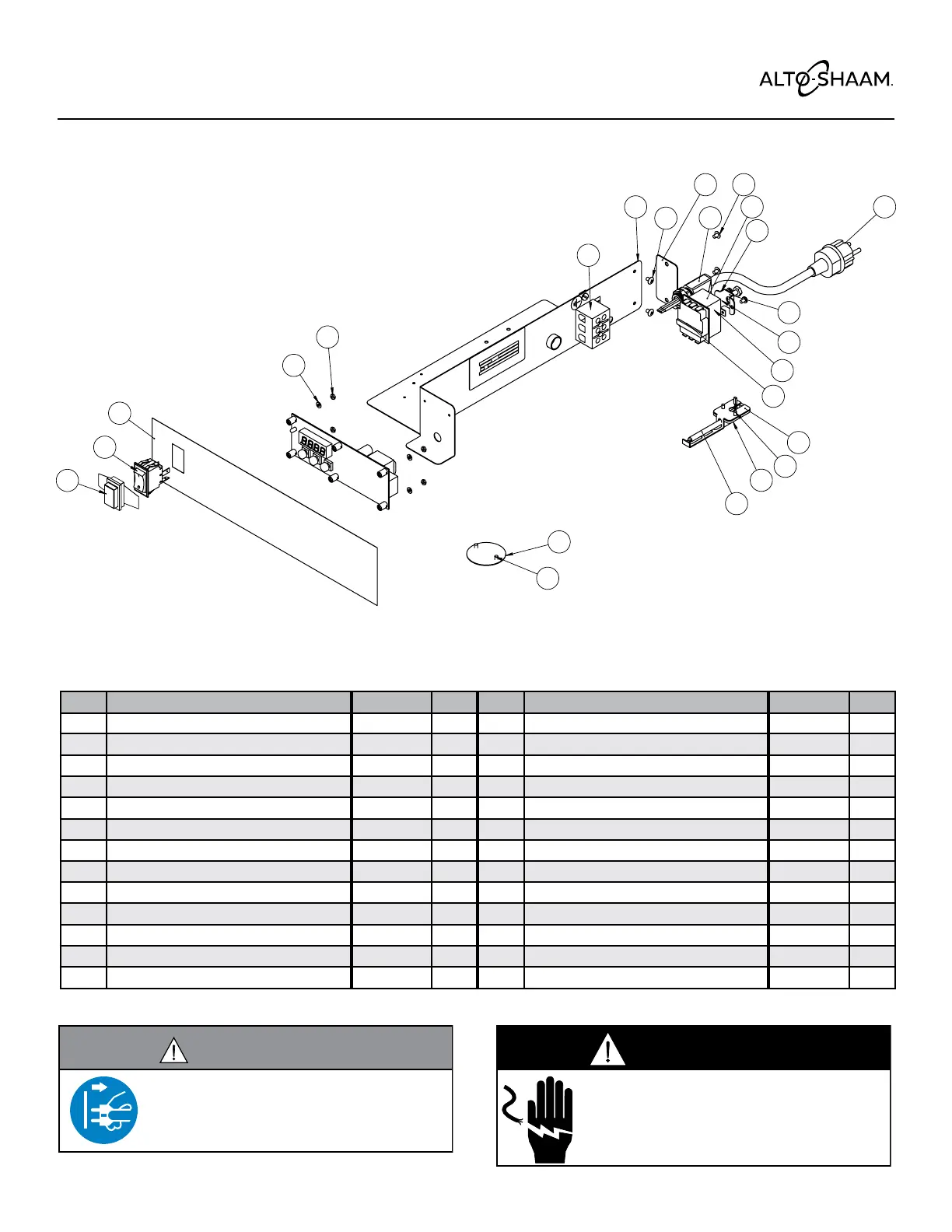

Electronic Components - 300-S
82
3
5
9
10
11
12
13
14
15
16
22
21
17
3
20
19
7
6
43
1
18
Part numbers and drawings are subject to change without notice.
Item Description Part No. Qty Item Description Part No. Qty
1 T-Block BK3019 1 11 Washer, Split Lock WS22302 2
2 Electric Chassis Assembly 5015058 1 12 Nut, Threaded Insert, M6 NU22770 1
3 Screw, 8-32 x 1/4" Phil SC2459 4 13 Bracket, Sensor Mtg. 1493 1
4 Switch Cover 11133 1 14 Screw, 6-32 x 3/8" Rnd Phh SC2254 2
5 Bushing, Strain Relief, 90°, Blk BU34898 1 15 Sensor Block BK29605 1
6 Hi-Limit Thermostat TT33476 1 16 Sensor, Oven Temperature SN38111 1
7 Hi-Limit Protection Cover 1003936 1 17 Probe Cover 1008807 1
8 Cordset 120V CD-3232 1 18 Switch Cover (230V only) CV38297 1
230V CEE 7/7 CD-3922 1 18 Switch, Rocker,125-277V, 20A SW34769 1
230V CH216P CD-36231 1 19 Panel, Overlay PE35188 1
230V BS 1363 CD-33925 1 20 Washer, 6-32, Flat, Nylon WS23148 4
9 Screw, Hhcs, M6 x 20 SC22924 1 21 Nut, 6-32 Hex, S/S NU2361 4
10 Washer, Flat WS22297 2 22* Screws, M4-0.7 x 6mm Phil SC22271 2
WARNING
To prevent serious injury, death, or property
damage, always disconnect the appliance
from the power source before cleaning
orservicing.
DANGER
To prevent serious injury, death, or property
damage, always lock‑out or post breaker
panel until service work has been completed.
*Not shown
