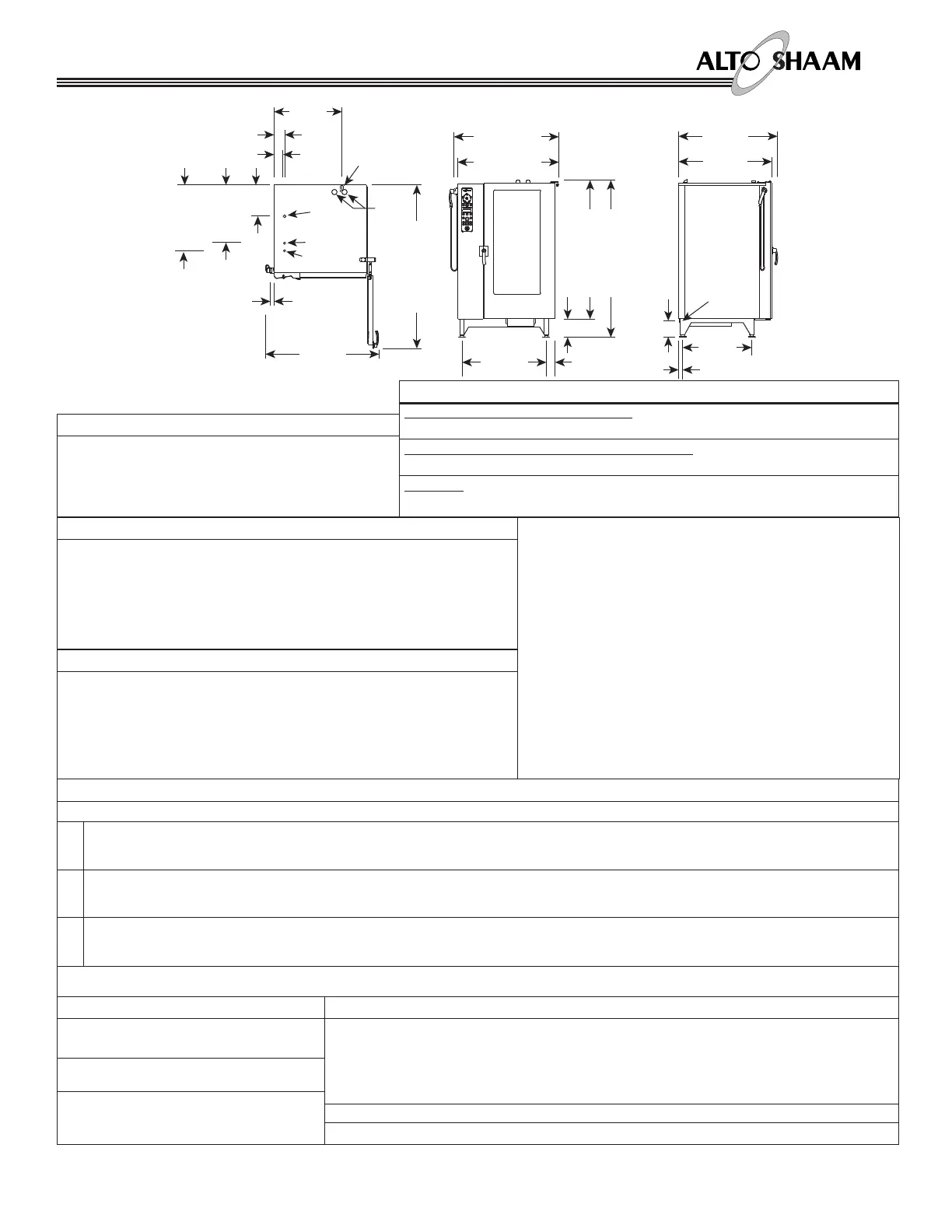

MARINE ELECTRIC COMBITHERM — INSTALLATION MANUAL #7001-20.20ESM
PG. 4
COMBITHERM
20•20E
S
MARINE SPECIFICATIONS
Water Drain
(Side Back)
Steam
Vents
(Top)
79-5/16" (2014mm)
8-15/16" (226mm)
67-3/8" (1710mm)
76-1/4" (1936mm)
54-3/4"
(1390mm)
2" (50mm)
49" (1244mm)
51" (1294mm)
45-5/16"
(1151mm)
48"
(1218mm)
Water Drain
(Bottom)
7-11/16" (195mm)
2-1/16" (52mm)
33-1/2"
(851mm)
4-3/4" (120mm)
5" (127mm)
32-7/8"
(834mm)
4-3/16"
(106mm)
40-15/16"
(1039mm)
12-15/16"
(326mm)
24-7/8"
(629mm)
27-5/8"
(699mm)
T
reated Water
Intake (Bottom)
Intake (Bottom)
Electrical
Connection (Bottom)
Untreated Water
C A PA C I T Y
FULL-SIZE PANS: 20" x 12" x 2-1/2" Forty (40)
GN 1/1: 530 x 325 x 65mm Forty (40)
GN 2/1: 650 x 530 x 65mm Twenty (20)
FULL-SIZE SHEET PANS:* 18" x 26" x 1" Twenty (20)
ON WIRE SHELVES ONLY
480 lb (218 kg) MAXIMUM
VOLUME MAXIMUM
: 300 QUARTS (380 LITERS)
W E I G H T
NET 973 lb EST. (441 kg) EST.
SHIP 1379 lb EST. (626 kg) EST.
CRATE 83" X 54" X 53"
DIMENSIONS: (2108 x 1372 x 1346mm)
E L E C T R I C A L
VOLTAGE PHASE CYCLE/HZ AWG AMPS kW
at 208 3 50/60 3 Wire plus ground 151.2/ph 54.4
at 240 AWG 4 173.4/ph 72.2
at 380 3 50/60 4 Wire plus ground 83.0/ph 54.4
at 415 AWG 2 101.0/ph 72.2
at 440 3* 50/60 3 Wire plus ground 71.5/ph 54.4
at 480 AWG 2 87.0/ph 72.2
* ELECTRICAL SERVICE CHARGE APPLIES
208-240
380-415
440-480
D I M E N S I O N S : H x W x D
EXTERIOR WITH RETRACTABLE DOOR:
76-1/4" x 51" x 48" (1936mm x 1294mm x 1218mm)
E
XTERIOR
W
ITH
O
PTIONAL
A
NTI
-S
WING
D
OOR
:
76-1/4" x 46-3/4" x 48" (1936mm x 1186mm x 1218mm)
INTERIOR:
60-1/4" x 26-1/4" x 32-11/16" (1530mm x 667mm x 830mm)
*ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
I N S TA L L AT I O N R E Q U I R E M E N T S
Oven must be installed level.
Hood installation is required.
Water supply shut-off valve and back-flow
preventer.
C L E A R A N C E R E Q U I R E M E N T S
LEFT : 6" (152mm) PLUS SERVICE ACCESS: 18" (457mm) RECOMMENDED
20" (508mm) F RO M H E AT P R O D U C I N G E Q U I P M E NT
RIGH T
: 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK
: 4" (102mm) BOTT O M: 5-1/8" (130mm) FOR LEGS
COUNTER
-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
.
WAT E R R E Q U I R E M E N T S
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi
2.8 to 6.2 bar
WATER DRAIN: 1-1/2"
FERNCO CONNECTION WITH AIR GAP
*Can manifold off of one 3/4" line
WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure that
incoming water supply is compliant with the specifications listed
through adequate treatment measures. Installation of the
CombiGuard™ Water Filtration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements
(untreated water)
Free Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm
