#852 • AR-7E Rotisserie Opera ti on & C ar e Ma nual • 7
I N S TA L L AT I O N
MAKE CERTAIN TO FASTEN EACH
OF THE FOUR HOLES
STACKING APPLICATIONS OUTSIDE
THE U.S. REQUIRE FLANGED FEET AND
MUST BE BOLTED TO THE FLOOR.

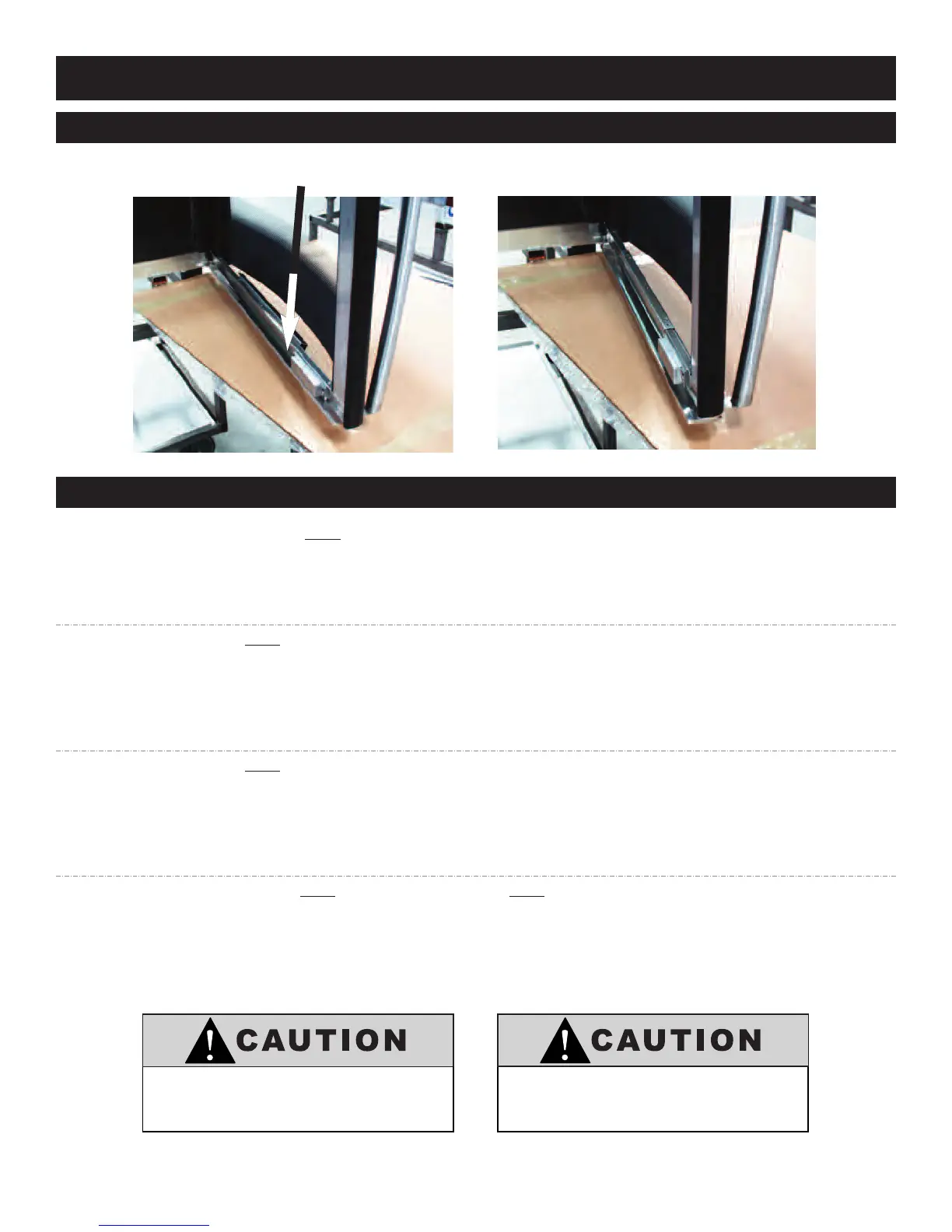

Suspend tray by hanging lipped edged of drip tray over the bottom edge of the door.
D R I P T R AY I N S TA L L AT I O N
S TA C K I N G C O M B I N AT I O N S & I N S TA L L AT I O N R E Q U I R E M E N T S
AR-7VH VENTLESS HOOD OVER AR-7E ROTISSERIE
Requires 4" (102mm) legs for counter top applications. Free standing floor installations
require 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007.
HxWxD = 54-7/16" x 38-1/16" x 34-1/2" (1384mm x 966mm x 876mm)
AR-7E ROTISSERIE OVER AR-7E ROTISSERIE
Requires 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007 and stacking assembly
5006291 for applications within the United States. Applications outside the U.S. requires
6" (152mm) legs with flanged feet 5001761 bolted to the floor.
HxWxD = 76-3/4" x 38-1/16" x 34-1/2" (1950mm x 966mm x 876mm)
AR-7E ROTISSERIE OVER AR-7H COMPANION HOLDING CABINET
Requires 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007 for applications
within the United States. Applications outside the U.S. requires 6" (152mm) legs with
flanged feet 5001761 bolted to the floor.
HxWxD = 76-3/4" x 38-1/16" x 34-1/2" (1950mm x 966mm x 876mm)
AR-7VH VENTLESS HOOD OVER AR-7E ROTISSERIE OVER AR-7H COMPANION HOLDING CABINET
Requires 6" (152mm) legs with flanged feet 5001761 bolted to the floor.
HxWxD = 90-11/16" x 38-1/16" x 34-1/2" (2304mm x 966mm x 876mm)
