Alto-Shaam Vector H Series - Dimensions

INSTALLATION
Combitherm® CT PROformance™ Series ? Operator’s Manual ? MN-35948 ? Rev 0 ? 3/17
9
NSTALLATION

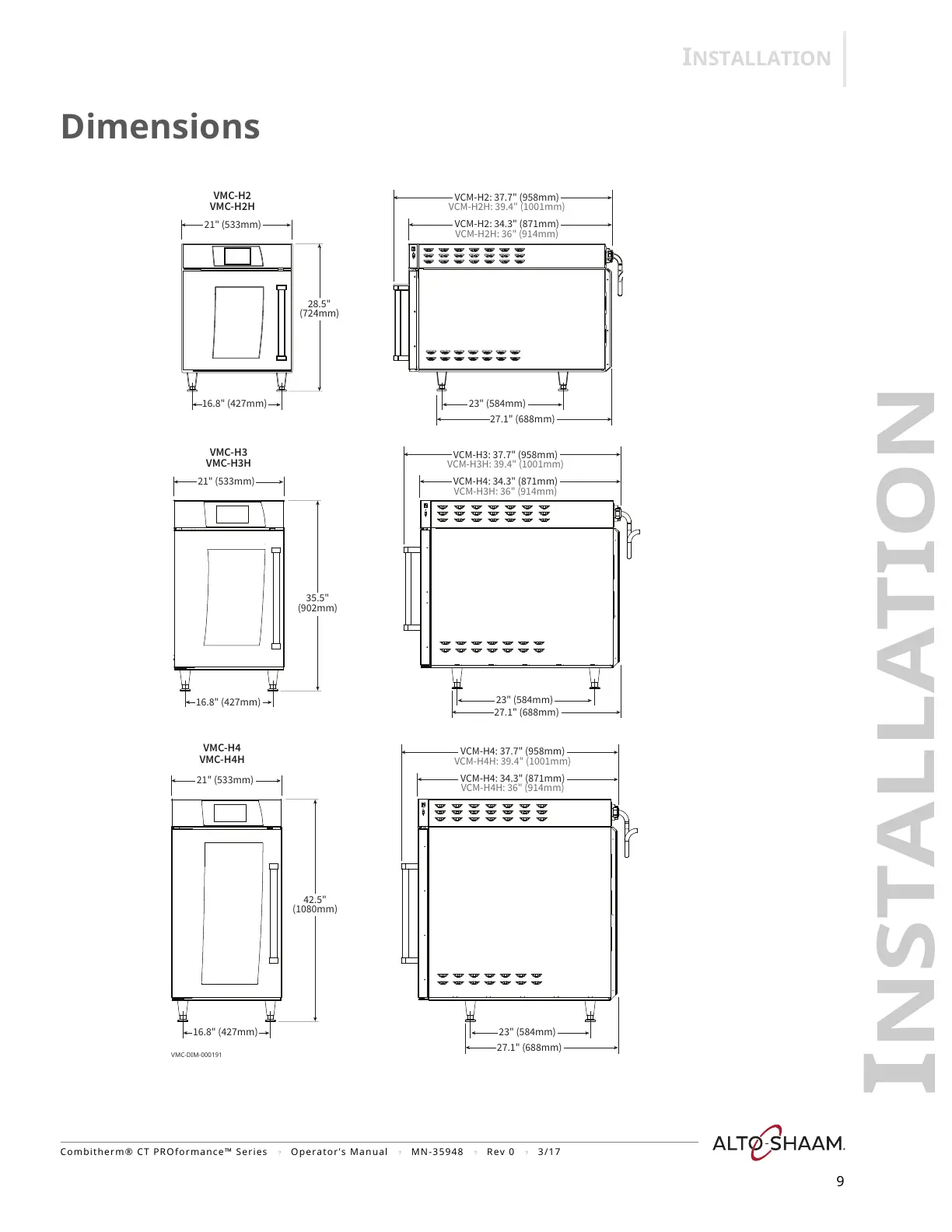

Dimensions
VCM-H4: 34.3" (871mm)
VCM-H3H: 36" (914mm)
VCM-H3: 37.7" (958mm)
VCM-H3H: 39.4" (1001mm)
35.5"
(902mm)
VCM-H2: 34.3" (871mm)
VCM-H2H: 36" (914mm)
VCM-H2: 37.7" (958mm)
VCM-H2H: 39.4" (1001mm)
27.1" (688mm)
23" (584mm)
16.8" (427mm)
27.1" (688mm)
23" (584mm)
16.8" (427mm)
21" (533mm)
VCM-H4: 34.3" (871mm)
VCM-H4H: 36" (914mm)
VCM-H4: 37.7" (958mm)
VCM-H4H: 39.4" (1001mm)
42.5"
(1080mm)
27.1" (688mm)
23" (584mm)
16.8" (427mm)
21" (533mm)
28.5"
(724mm)
21" (533mm)
VMC-H3
VMC-H3H
VMC-H4
VMC-H4H
VMC-H2
VMC-H2H
VMC-DIM-000191
