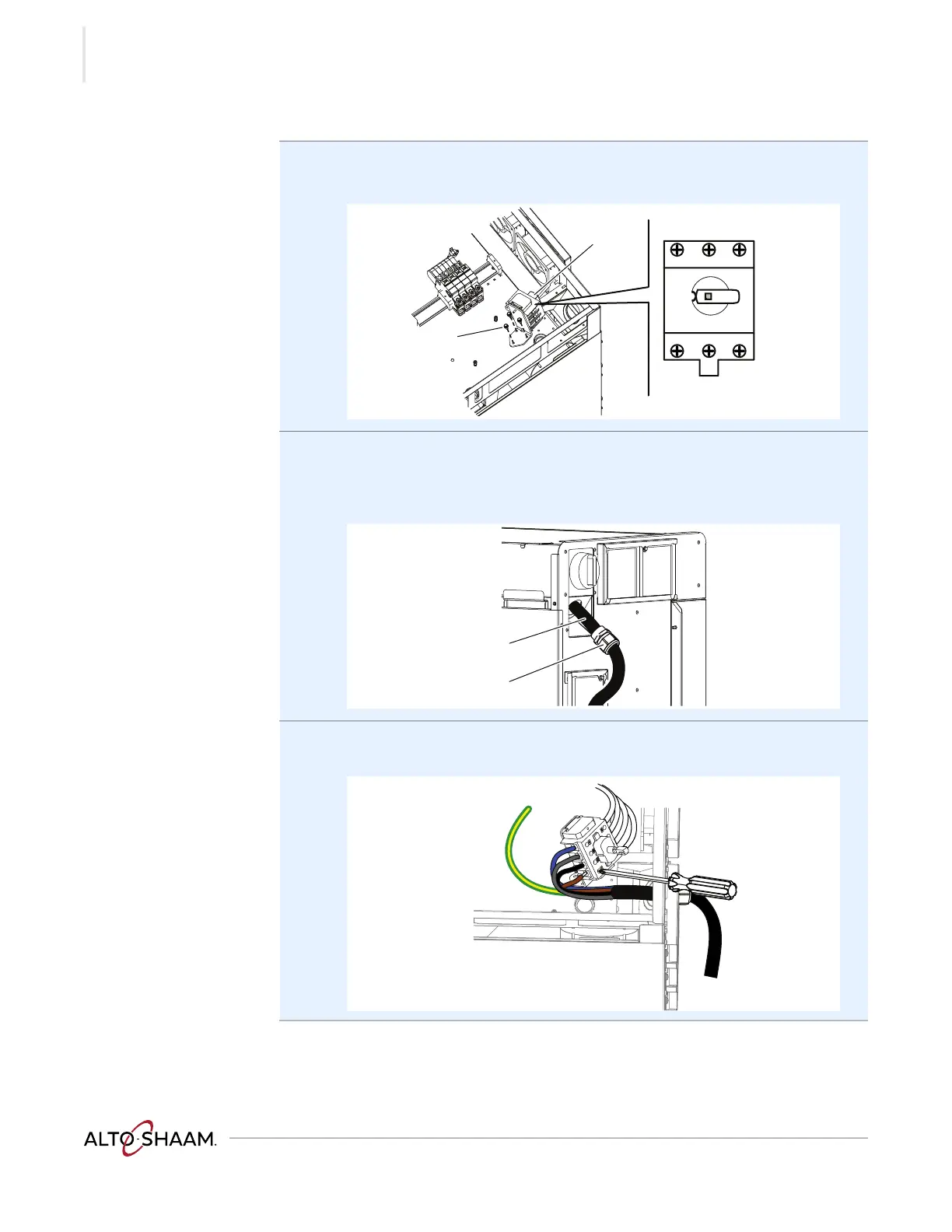

5. Remove the bottom 3 screws b from the mounting bracket.
Remove the main disconnect switch c from the mounting bracket.
6. Install the cord d through the cord grip e.
Install the cord and cord grip into the oven.
Install the lock nut onto the cord grip.
7. Connect the supply cord to the appropriate terminals (L1, L2, L3, etc.) in
accordance with local codes and regulations.
Continued on next page
