6

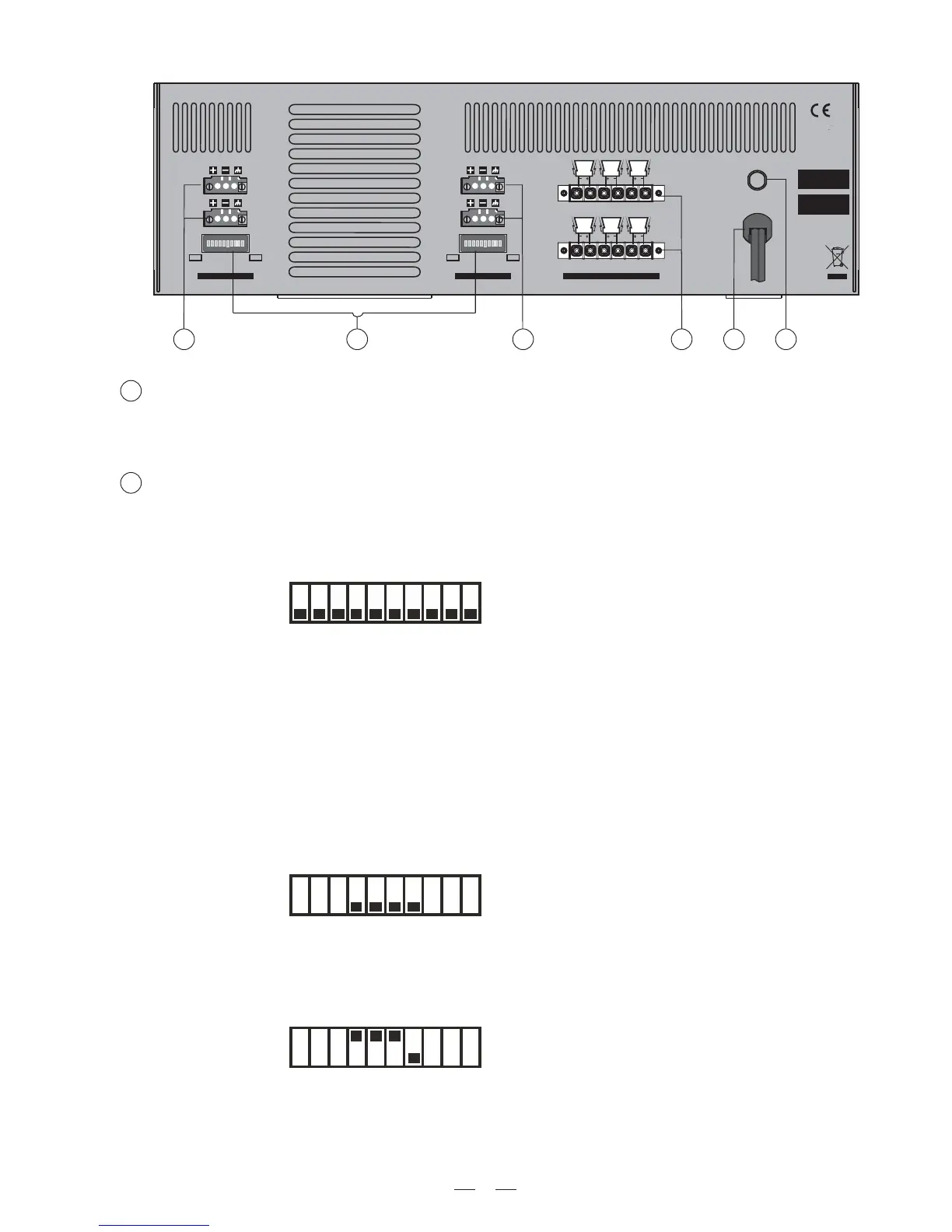

3.2 The Rear Panel
12345678910
12345678910
CH1 MODE SWITCHES CH2
INPUTS
CH1
CH2
CH3 MODE SWITCHES Ch4
Ch3
Ch4
CH3
CH4
BRIDGE
MONO
BRIDGE
MONO
CH2
CH1
INPUTS
AC INPUT
SERIAL
MODEL
Apparaten skall anslutas
till jordat uttag nar den
ansluts till ett natverk
BREAKER
OUTPUTS
10
11
12
1314
10
11
INPUT Terminal
This unit is provided with balanced terminals, which are used to connect the input signal. Channel 1 and channel 3
are used in bridge and parallel mode.
Mode Selector
You can choose the right function and output you need via the mode selector switch. In order to make you acquire
these settings, now let me introduce the dip switch.
This switch is made up of 10 small dip switches, these small dip switches from1 to 5 control one channel, the
rest ones (6-10 ) control the other channel. You can choose the right mode setting you need via these small
dip switches. Take the dip switch of channel 1 and channel 2 for example. Channel 3 and channel 4 are the same
as channel 1 and channel 2
STEREO MODE
12345678910
- Output Mode Selector
This unit provides three output modes: stereo, bridge and parallel. Here are some details:
these small dip switches of 4, 5, 6, 7 up to the top, then channel 1 and channel 2 are inStereo mode: set stereo
mode;
Parallel mode: set these small dip switches of 4, 5, 6, to the top, and set the small dip switch of 7 down, then
channel 1 and channel 2 are in parallel mode.
Bridge mode: turn these small dip switch of 7 up to the top, then channel 1 and channel 2 are in bridge
mode.
PARALLEL MODE
12345678910
12345678910
10
