Altronix ACMS8 User Manual

- 6 - ACMS8/CB Sub-Assembly
VR6 - Voltage Regulator
Overview:
VR6 voltage regulator converts a 24VDC input into a regulated 5VDC or 12VDC output. It is specifically
designed to work with ACMS8(CB) by allowing to mount the Access Power Controller directly on top of VR6
to save enclosure space and simplify connections. Refer to VR6 Installation Guide Rev. 050517.
Specifications:
Connecting ACMS8(CB) to VR6:
1. Mount VR6 in the desired location/enclosure.
2. Plug-in male 8-pin connector to female 8-pin receptacle on VR6 board.
3. Fasten standoffs. Use metal standoff over mounting hole with star pattern.
4. Align 8-pin male connector with female receptacle of ACMS8(CB), then mount.
5. Connect 24VDC power supply to terminal marked [+ PWR1 –] of ACMS8(CB). Thus Input 1 of ACMS8(CB)
is 24VDC from power supply and Input 2 is determined by VR6’s settings (5VDC or 12VDC).
6. Complete steps 4-10 (pgs. 3-4).
Power Input / Output:
• Input: 24VDC @ 1.75A – Output: 5VDC @ 6A.
• Input: 24VDC @ 3.5A – Output: 12VDC @ 6A.
Output:
• 5VDC or 12VDC regulated output.
• Output rating 6A max.
• Surge suppression.
LED Indicators:
• Input and output LEDs.
Electrical:
• Operating temperature: 0ºC to 49ºC ambient.
• Humidity: 20 to 93%, non-condensing.
Mechanical:
• Product weight (approx.): 0.4 lb. (0.18 kg).
• Shipping weight (approx.): 0.5 lb. (0.23 kg).
+ OUT
--
+ IN
--
+ OUT
--
+ IN
--
ACMS8/ACMS8CB
VR6VR6

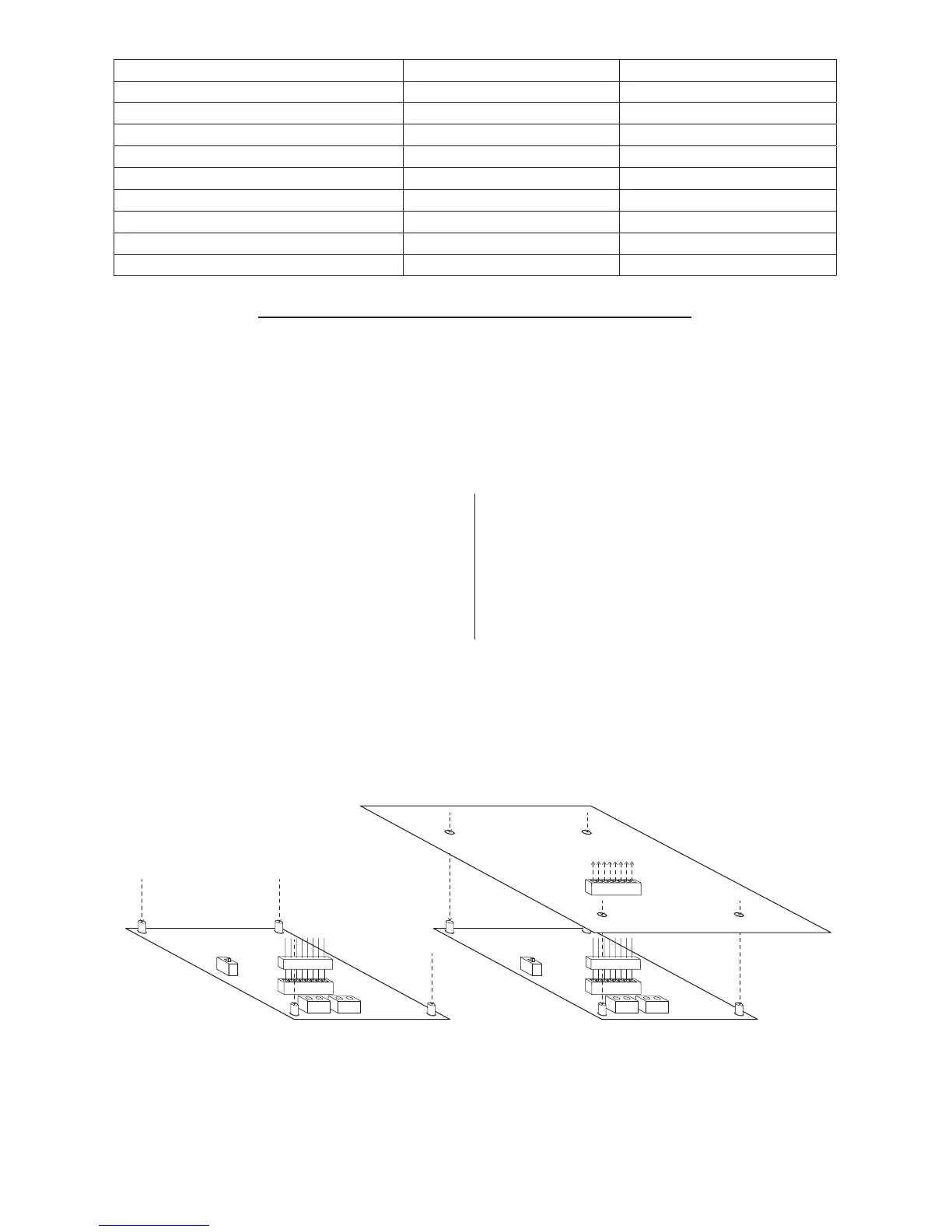

Fig. 5
Maximum Output of Altronix Power Supplies:
UL Listed or Recognized Power Supply Output Voltage Max. Output Current
AL400ULXB2
12VDC or 24VDC 12VDC @ 4A or 24VDC @ 3A
AL600ULXB
12VDC or 24VDC 6A
AL1012ULXB
12VDC 10A
AL1024ULXB2
24VDC 10A
eFlow4NB
12VDC or 24VDC 4A
eFlow6NB
12VDC or 24VDC 6A
eFlow102NB
12VDC 10A
eFlow104NB
24VDC 10A
VR6
5VDC or 12VDC 6A
