Altronix ACMS8 User Manual

- 8 - ACMS8/CB Sub-Assembly
Hook-Up Diagrams:

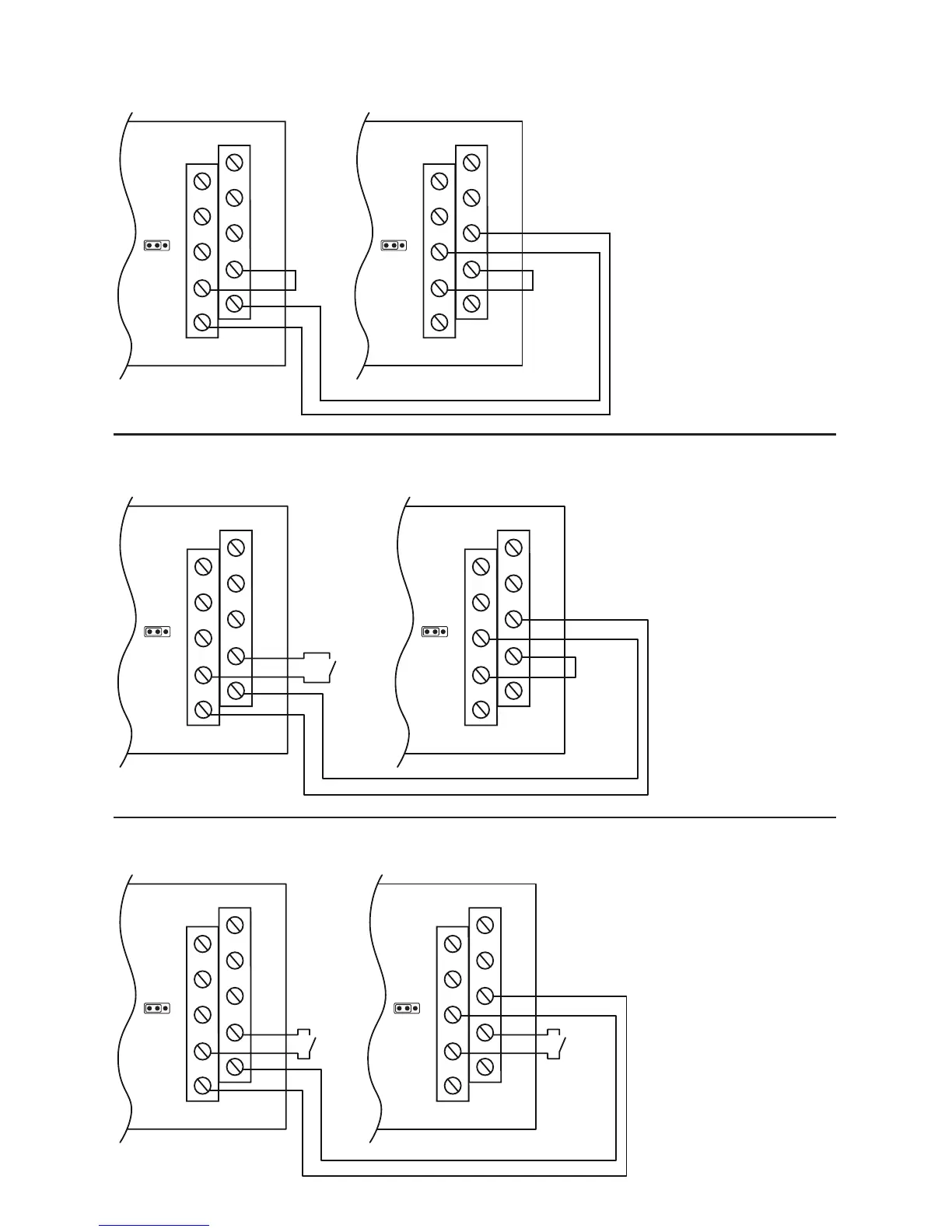

Fig. 7 - Daisy-chaining one or more ACMS8 units.
EOL Jumper [EOL JMP] should be installed in the EOL position. Non-Latching.
Fig. 8 - Daisy-chaining one or more ACMS8 units.
EOL Jumper [EOL JMP] should be installed in the EOL position. Latching Single Reset.
FACP
FACP
NC RST EOL +F +R
C GND GND -F -R
FACP
FACP
JumperJumper
NC RST EOL +F +R
C GND GND -F -R
EOL JMPEOL JMP
FACP
FACP
NC RST EOL +F +R
C GND GND -F -R
FACP
FACP
Jumper
NC RST EOL +F +R
C GND GND -F -R
EOL JMPEOL JMP
N.O.
Switch
FACP
FACP
NC RST EOL +F +R
C GND GND -F -R
FACP
FACP
NC RST EOL +F +R
C GND GND -F -R
EOL JMPEOL JMP
N.O.
Switch
N.O.
Switch
Fig. 9 - Daisy chaining one or more ACMS8 units.
EOL Jumper [EOL JMP] should be installed in the EOL position. Latching Individual Reset.
