Alula BAT-Connect - DSC Wiring

DSC
®
Wiring for Interactive Control and Event Reporting
• DSC control panels require connection to panel bus and Tip & Ring.
• Tip & Ring should not be wired to BAT-Connect using the same multi-conductor cable as
the panel bus wiring. Tip & Ring should be in a separate cable.
• See below for supported DSC panels. If DSC panel is not listed, please contact Alula
Support.
Compatible Panels
• PC580 (Power 432)
• PC1555 (Power 632)
• PC1555MX (Power 632)
• PC5010 (Power 832)
• PC5020 (Power 864)
• PC1616
• PC1832
• PC1864

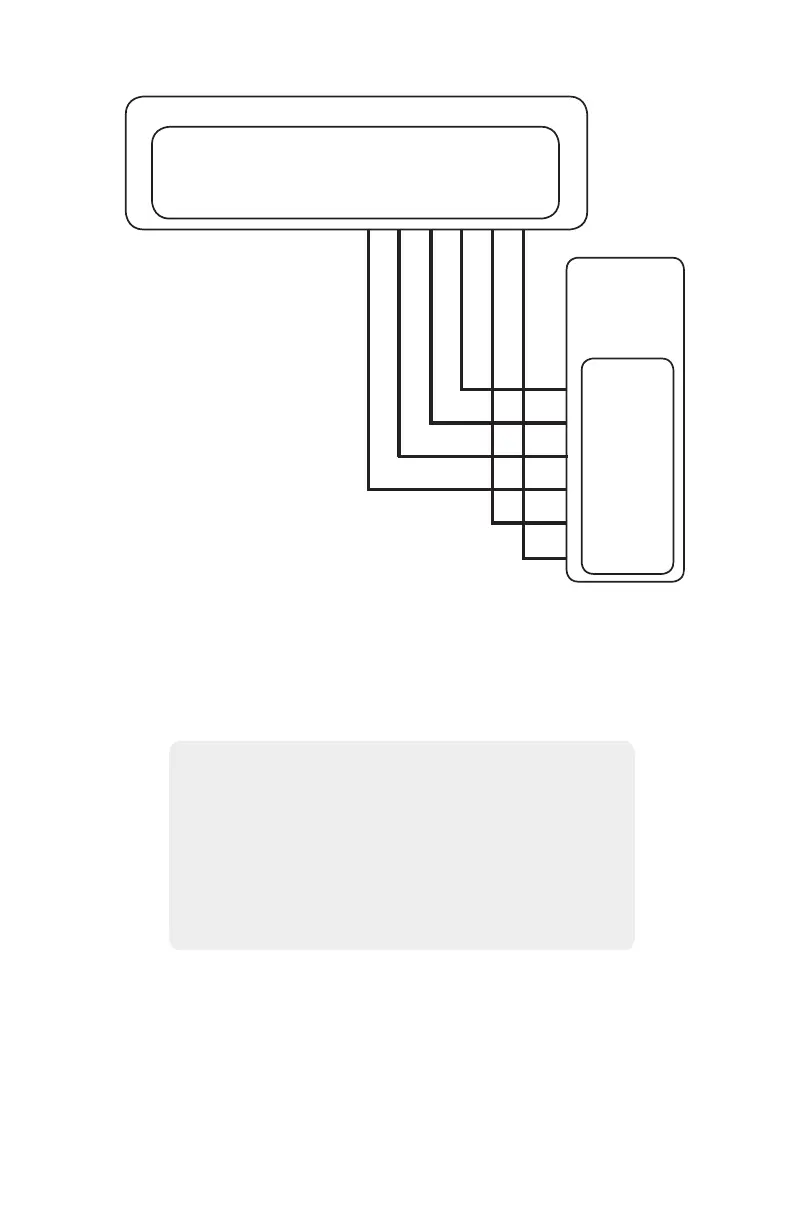

OPEN
COLLECTOR
PC-LINK
RD TD
OC2 OC1
ØØØØØØØØØØØØ
PHONE
POWERRS485 COMM
RING TIP
GND 12V
G IN Y IN
A B
BAT-CONNECT
DSC
CONTROL
PANEL
ØØØØØØ
BLACK
- AUX
RED
+ AUX
GREEN
YELLOW
TIP
RING
