13
ASSEMBLY INSTRUCTIONS
1)

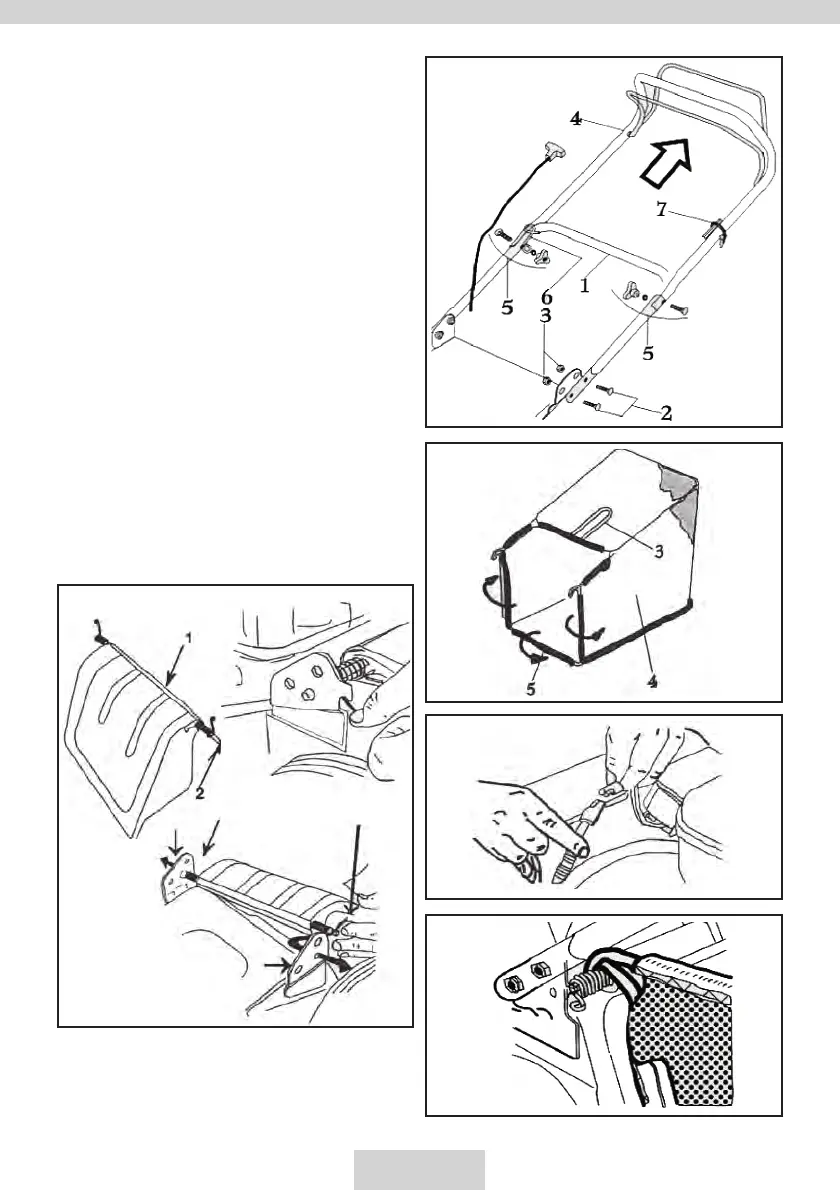

GRASS DEFLECTOR (drawing n. 3) - As-
semble the grass defl ector (1) by inserting fi rst one
and then the other end of the rod (2) in each side
support hole (3 e 4) located in the chassis and fi x
the left and right hand springs (5), as shown.
2) HANDLE BAR (drawing n. 4) - Using the nuts
screws and supplied (2) fi x the lower part of the
handle (1) to the supports on the sides of the chas-
sis. Make sure the locating washer is in the correct
position (3). Using the nuts screws and supplied (5)
fi x the upper part of the handle (4). Make sure the
pull chord hook (6) is positioned properly. Fix the
cable using the cable ties (7).
3) GRASS COLLECTOR (drawing n. 5) - For
grass bags, insert the frame (3) into the grass bag (4)
and fasten the plastic clips (5), using a screwdriver,
on to the frame as shown.
4) For electric start mowers. Connect the battery to
the main cable connector of the mower (drawing
n. 6).
5) POSITIONING OF GRASS COLLECTOR
(drawing n. 7) - Lift the grass defl ector and
hook the grass collector (2) in the correct position
as shown in the drawing.
(fi g.3)
(fi g.4)
(fi g.5)
(fi g.6)
(fi g.7)
