DESCRIPTION OF FUNCTIONS AND
COMMANDS

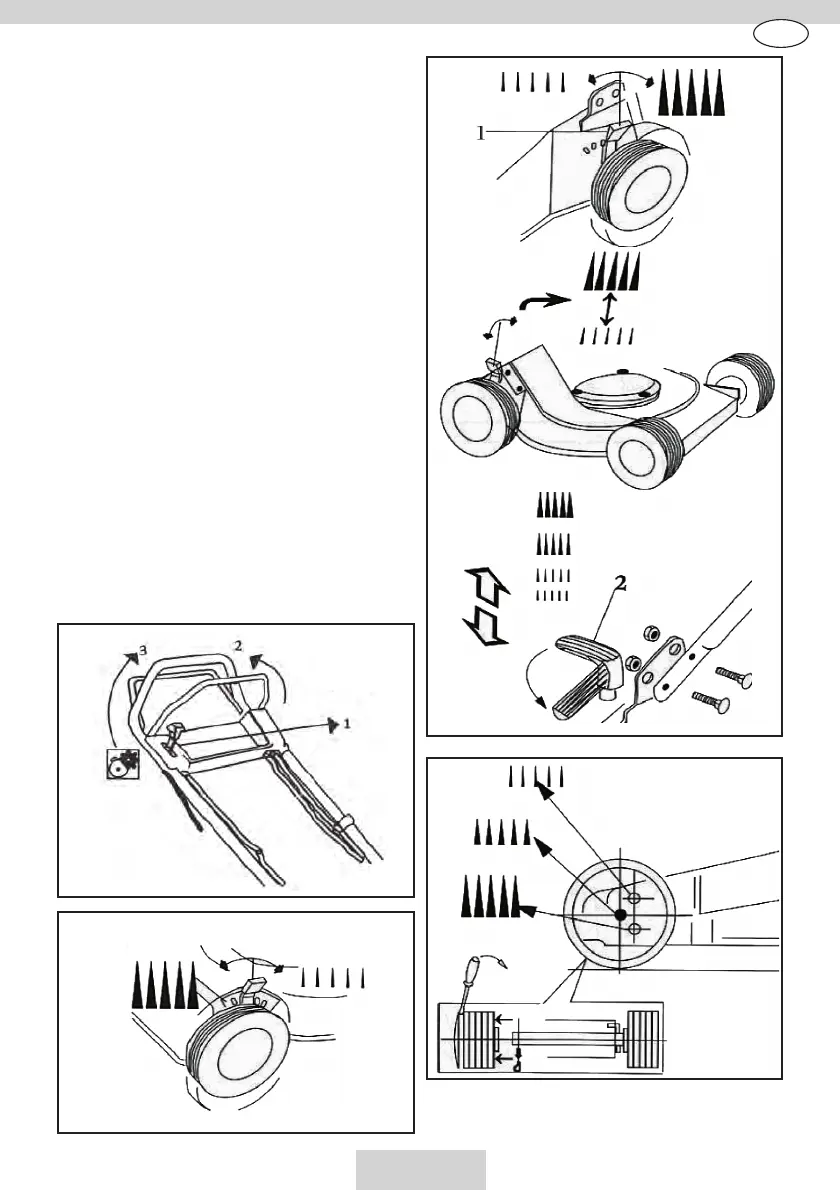

1) THROTTLE (drawing n. 8) – The throttle (where
equipped) is controlled by lever (1). The positions of
the lever are indicated by the label. Some models
are fi
tted with fi xed speed motors, which do not
need throttle cables (2).
2) BRAKE LEVER (drawing n. 8) – The blade
brake is controlled by the lever (2), which should
be kept pulled against the handle bar during start
up and use. The engine stops when the lever is
released.
3) CLUTCH LEVER (drawing n. 8) – For self-pro-
pelled models, the mower moves forwards when
the lever (3) is pushed against the handle bar. The
mower stops when the lever is released.
4) CUTTING HEIGHT ADJUSTMENT (drawing
n. 9) – The cutting height is adjusted by using lever
(1) or knob (2). The four wheels should be set to
the same height. THIS OPERATION SHOULD BE
CARRIED OUT WITH THE BLADE STOPPED.
On some models the height is adjusted as per
drawing n.10.
BEFORE START UP, READ THE ENGINE INSTRUC-
TION BOOK INCLUDED WITH THE MOWER.
(fi g.8)
(fi g.9)
(fi g.10)
(fi g.9)
