Addendum
Ad-3
IPB-5000B-MU

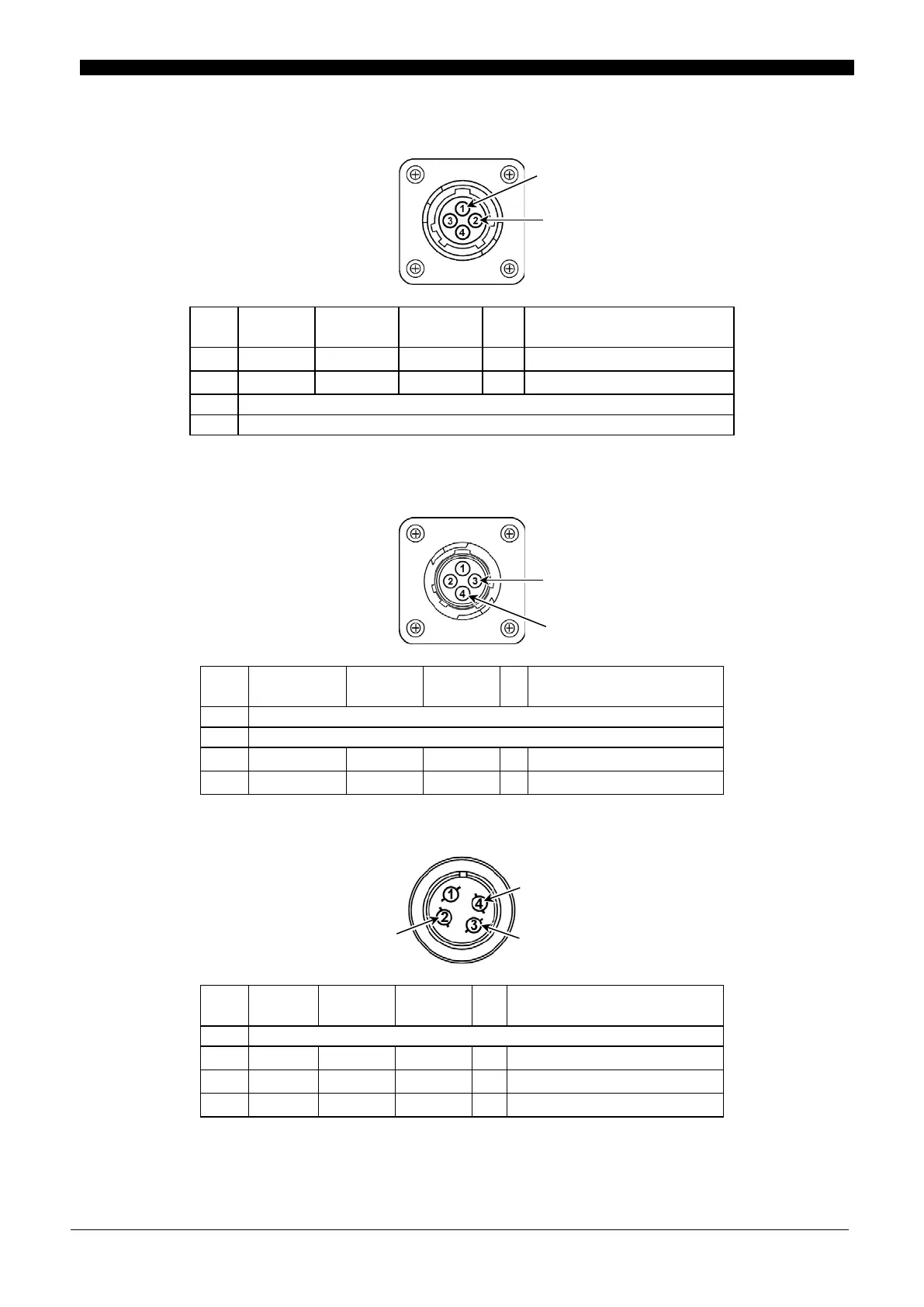

J1: 24VDC Valve Output Connector
PIN #
SIGNAL
NAME
MAX
VOLTAGE
MAX
CURRENT
I/O COMMENTS
1 SOL COM 24 VDC 0.5A O Same as Terminal Block # 34
2 SOL1 24 VDC 0.5A O Same as Terminal Block # 32
3
Not Used
4
Not Used
J2: 24VDC Power Input Connector
PIN #
SIGNAL
NAME
MAX
VOLTAGE
MAX
CURRENT
I/O COMMENTS
1
Not Used
2
Not Used
3
SOL COM
24 VDC
0.5A
O
Same as Terminal Block # 34
4 SOL POWER 24 VDC 0.5A O Same as Terminal Block # 31
FTSW: Foot Switch Connector
PIN #
SIGNAL
NAME
MAX
VOLTAGE
MAX
CURRENT
I/O COMMENTS
1
Not Used
2 1ST 24 VDC
5 mA
I Same as Terminal Block # 4
3 2ND 24 VDC
5 mA
I Connects to Firing Switch Cable
4 COM --- --- --- Same as Terminal Block # 6
SOL1
SOL COM
SOL COM
SOL POWER
1ST
COM
2ND
